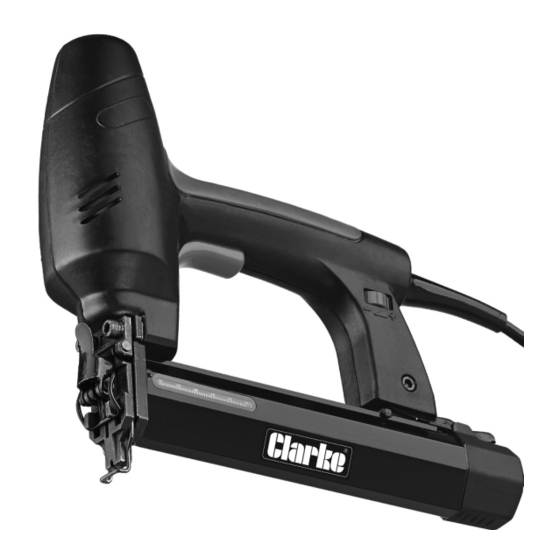

- Page 1 ELECTRIC STAPLER & NAILER MODEL NO: CESNG2 PART NO: 6462562 OPERATION & MAINTENANCE INSTRUCTIONS LS0914...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAUTIONS, INCLUDING THE FOLLOWING, SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY. WARNING: READ ALL THESE INSTRUCTIONS BEFORE OPERATING THIS PRODUCT AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. For safe operations: 1. -
Page 4: Machine Specific
periodically and replace, if damaged. Keep handles dry, clean and free from oil and grease. 14. Disconnect tools. - When not in use, before servicing and when changing accessories such as blades, bits and cutters. 15. Avoid unintentional starting. - Do not carry a tool with a finger on the switch. -
Page 5: Safety Symbols
SAFETY SYMBOLS Read manual before use Wear suitable eye protection SAFETY SYSTEM FULL SEQUENTIAL ACTUATION This stapler/nailer has an actuation system in which the trigger and safety yoke are linked in such a way that it will only operate if the trigger is pulled after the safety yoke (muzzle) has been applied to the work. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved BS1363/A plug fitted with a BS1362 fuse. If the plug has to be changed because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. -
Page 7: Preparing The Stapler/Nailer For Use
PREPARING THE STAPLER/NAILER FOR USE FILLING THE MAGAZINE WARNING: SWITCH OFF THE STAPLER/NAILER AND REMOVE THE PLUG FROM THE MAINS POWER SUPPLY BEFORE FILLING THE MAGAZINE. CAUTION: KEEP YOUR FINGERS WELL AWAY FROM THE TRIGGER, 1. Press and hold the magazine catch then pull out the magazine. -
Page 8: Using The Stapler/Nailer
USING THE STAPLER/NAILER ay attention to all of the safety warnings in these operating instructions. 2. Set the ON/OFF switch to the ON position. 3. Hold the tool with both hands and press the nose against the work • Always hold the stapler/nailer square to the workpiece, never at an angle. -
Page 9: Maintenance
• Do not open the casing, the guarantee will be void if the casing has been opened or if the stapler/nailer has been tampered with. • The use of parts other than CLARKE replacement parts may result in safely hazards, decreased tool performance and will invalidate your warranty. -
Page 10: Specification
SPECIFICATION Input Voltage 230V, 50Hz, 1Ph Max Firing Speed 20 shots/min. Maximum Magazine Capacity 100 Nails or 100 Staples Nail Type F Type 18 Gauge -10 mm, 15 mm, 20 mm, 25 mm, 32 mm Staple Type 18 Gauge (Type 90) - 16 mm, 19 mm, 22 mm, 25 mm Dimensions 240 x 193 x 62 mm... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
