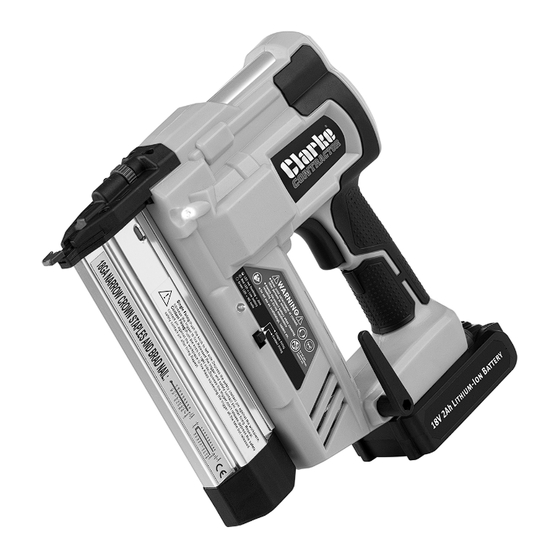

- Page 1 18V CORDLESS STAPLER/NAILER MODEL NO: CONSN18LIC PART NO: 6487058 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS LS0717 ISS2...
- Page 2 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 3: Intended Use
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING: READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR SERIOUS INJURY. WARNING: SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. WARNING: THE TERM “POWER TOOL” IN THE WARNINGS REFERS TO YOUR MAINS-OPERATED (CORDED) POWER TOOL OR BATTERY-OPERATED (CORDLESS) POWER TOOL. -
Page 5: Personal Safety
PERSONAL SAFETY 1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. -
Page 6: Stapler/Nailer Specific Safety Warnings
operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. 6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. 7. -
Page 7: Safety Symbols
SAFETY SYMBOLS Read Wear suitable Class II manual eye protection appliance before use Indoor Use Wear Hearing Do not Only Protection immerse in liquid Isolation Do not use Do not transformer when on incinerate scaffolding or ladders Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 8: How To Charge The Battery
HOW TO CHARGE THE BATTERY WARNING: THE BATTERY CAN BE WARM TO THE TOUCH WHEN REMOVED FROM THE TOOL. ALWAYS LET THE BATTERY COOL DOWN BEFORE RECHARGING. DO NOT RECHARGE A WARM BATTERY. NOTE: New batteries must be charged before use. 1. -
Page 9: Before Use
BEFORE USE PUT THE STAPLES OR NAILS INTO THE MAGAZINE NOTE: Do not mix different sized fasteners, do not put both staples and nails into the magazine at the same time. 1. Remove the battery from the stapler/nailer 2. Push the release button and pull out the magazine. -
Page 10: Fasteners Available From Clarke Stockists
FASTENERS AVAILABLE FROM CLARKE STOCKISTS NAILS Part No STAPLES Part No CL NAIL 20mm 18G 1.2 1800415 CL STAPLE TYPE90 19mm 1800431 CL NAIL 30mm 18G 1.2 1800417 CL STAPLE TYPE90 25mm 1800435 CL NAIL 35mm 18G 1.2 1800421 CL STAPLES TYPE90 32mm 1800436 CL NAIL 40mm 18G 1.2... -
Page 11: Firing Modes
FIRING MODES ONE SHOT MODE 1. Set the firing mode switch to the left (single firing). • This mode is ideal for the precision placement of the fasteners 2. Push the safety yoke against the work piece. • The safety yoke must be pressed against the work piece before you pull the trigger. -
Page 12: To Clear A Jam
TO CLEAR A JAM WARNING: REMOVE THE BATTERY FROM THE STAPLER/NAILER BEFORE CARRYING OUT ANY SERVICING OR MAINTENANCE WARNING: DO NOT PULL THE TRIGGER UNTIL THE JAM HAS BEEN CLEARED. 1. Remove the battery from the stapler/nailer. 2. Open the magazine. 3. -
Page 13: Maintenance
• Do not open the casing, the guarantee will be void if the casing has been opened or if the stapler/nailer has been tampered with. • The use of parts other than CLARKE replacement parts may result in safely hazards, decreased tool performance and will invalidate your warranty. -
Page 14: Specification
SPECIFICATION Input Voltage 18V DC Max Firing Speed 100 Nails/min. Maximum Magazine Capacity 100 Nails or 100 Staples Nail Type 18 Gauge (F-Type) 20-50mm Staple Type Type 90 19 - 40 mm Dimensions 285 x 274 x 96 mm Weight inc battery 2.9 kg Activation Mode Full sequential actuation / contact... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
