  • Page 2 Wiring diagram description 1. Cable terminal 2. Spark generator 3. Ignition spark L. Black N. White T. Green (earth)

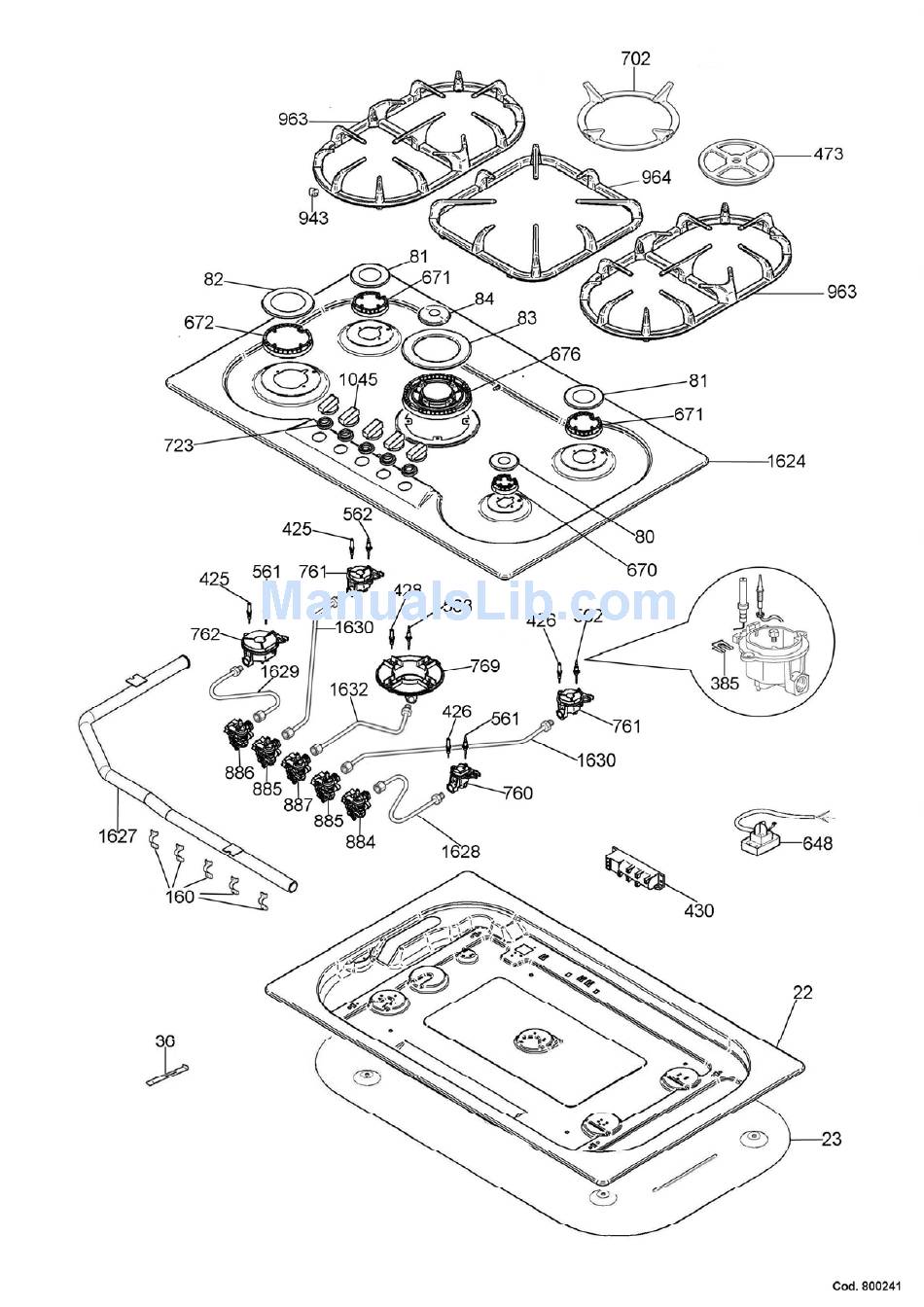

  • Page 3 DESCRIPTION COMPOSANT P34500X - BUILT-IN HOB 202365 LOAD BEARING BOTTOM FOND 202359 DOUBLE CARTER P9 PROTECTION DU FOND PORTANT 202271 FIXING HOOK CROCHET DE FIXAGE 504160 COVER FOR SMALL FLAME SPREADER COUVERCLE PETIT 504161 COVER FOR MEDIUM BURNER COUVERCLE MOYEN 504162 COVER FOR RAPID BURNER COUVERCLE RAPID...

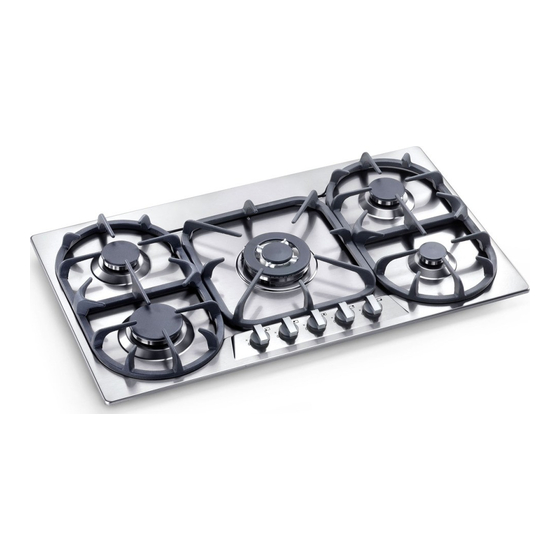

  • Page 4 ’’ (W) x 19 ’’ (860 mm) (500 mm) Models P34 5 00 X [P910..T4X5D] IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR’S USE. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. OBSERVE ALL GOVERNING CODES AND ORDINANCES. In Massachusetts: All gas products must be installed by a "Massachusetts" license plumber or gasfitter.

  • Page 5: Table Of Contents

    INDEX: Installation manual……………………………………..……………………………..pag.2 Inserting the hotplate……………………………………………..…………………..pag.3 Requirements……………………………………..……………………………….…..pag.3-4 Attaching the hotplate……………………………………..………………………….pag.4 Gas connection……………………………………..…………………………………pag.4-5-6 Electrical connection……………………………………..……………………….…..pag.6 Wiring diagrams……………………………………..…………………………….…..pag.6 Instructions for assembly of load bearing bottom protection.…………………….pag.6-7 Room ventilation…………………………………….…………………………………pag.7 Location and venting…………………………………….…………………………….pag.7 Replacement of nozzles……………………………………..………………………..pag.7 Regulation of burners……………………………………………...………………….pag.8 Service & maintenance instructions……………………………..…………………..pag.8 User instructions……………………………………………..……………………….. pag.9 Descriptions…………………………………………………………………………….pag.9 Using burners……………………………………………………..……………………pag.9-10 Cleaning the appliance……………………………………………..…………………pag.10...

  • Page 6: Inserting The Hotplate

    Inserting the hotplate After having removed the various loose parts from the internal and external packing, make sure that the hotplate in not damaged and is suitable for the specific gas usage. The gas type label is on the underside of the hotplate base.

  • Page 7: Attaching The Hotplate

    2. Side clearances (Minimum values) The different side clearances shall be in accordance with the minimum values indicated in the table n.1 and are shown and in the fig. 1 The cooking surface area is defined as that part of the appliance where cooking normally takes place and does not include those parts of the appliance containing control knobs.
  • Page 8 4. For LPG models the gas supply is connected to the regulator which is supplied loose. The inlet connection has a 1/2” B.S.P. male thread. IT IS ESSENTIAL THAT THE ELBOW ON THE APPLIANCE BE HELD FIRMLY WITH A SPANNER WHEN CONNECTING THE SUPPLY. DO NOT OVER TIGHTEN. The regulated pressure For LPG is 11”...

  • Page 9: Electrical Connection

    9. Sometimes the burners will not ignite immediately and seem to ‘blow’ slightly when they do ignite. This usually due to air in the gas lines, which will clear itself within seconds. 10. If after following the instructions given, satisfactory performance cannot be obtained, contact the local gas authority for advice and assistance.

  • Page 10: Room Ventilation

    SECTION VIEW OF THE RIGHT ASSEMBLY Room ventilation – Location and venting. ATTENTION: An exhaust fan may be used with the appliance; in each case it shall be installed in conformity with the national standards in force. ATTENTION: Exhaust hood operation may affect other vented appliances; in each case it shall be installed in conformity with the national standards in force.

  • Page 11: Regulation Of Burners

    Regulation of burners Regulation of the "MINIMUM" on the burners To regulate the minimum on the burners carry out the following procedure indicated below: 1) Turn on the burner and put the knob onto position MINIMUM ( small flame ). 2) Remove the knob ( Fig.
  • Page 12 La pression d’alimentation maximum du gaz en entrée dans le régulateur de pression de l’appareil à gaz est de 20’’ colonne d’eau (w.c.) (5 kPa) La pression d’alimentation minimum du gaz pour le contrôle du réglage du régulateur doit être au moins de 1“...
  • Page 13 Exigences 1. Distances des meubles suspendus (Valeurs minimum) Les distances minimum devront être conformes aux valeurs minimum indiquées dans la table n.1 et sont illustrées dans la fig. 1- 2 Les hottes de cuisine et les ventilateurs aspirant doivent être installés selon les instructions du fabricant. Cependant, dans aucun cas, la distance entre la partie supérieure du brûleur le plus haut de l’appareil de cuisson et la hotte d’aspiration devra être inférieure au 30”( 762mm).

  • Page 14: Branchement Du Gaz

    Branchement du gaz Avant de brancher l’appareil à l’alimentation gaz, enlevez d’abord le bouchon en plastique qui est monté en force dans le raccord d’admission du gaz; pour l’enlever, le tirer simplement. 1. Vérifiez l’étiquette du ‘’type de gaz’’ attachée à la table de cuisson. Les détails concernant les dimensions des injecteurs utilisés sont indiqués sur la plaquette des données située sur la base de l’appareil.
  • Page 15 Schémas de câblage Description du schéma de câblage 1. Cosse de câble 2. Générateur d’étincelles 3. Etincelle d’allumage L. Noir N. Blanc T. Vert (terre) Instructions de montage de la protection du fond portant 1 VIS M5 2 PROTECTION DU FOND PORTANT 3 RIVET M5 4 FOND PORTANT...
  • Page 16 Ventilation du local – Positionnement et dégazage NOTE : Un ventilateur extracteur qui aide l’evacuation des produits de la combustion peut etre utilisé dans le local où se trouve l’appareil ; en chaque cas il doit etre eventuellement installé conformement aux normes nationals en vigueur. NOTE : Le fonctionnement d’une hotte d’aspiration peut avoir influence sur les autres appareils a gaz qui functionnent dans le meme local ;...
  • Page 17 Réglage des brûleurs Réglage du "MINIMUM" sur les brûleurs Pour régler le minimum sur les brûleurs suivez le procédé indiqué ci-dessous: 1) Allumez le brûleur et mettez le bouton sur la position de MINIMUM ( petite flamme ). 2) Enlevez le bouton ( Fig. 7) du robinet qui est réglé pour la pression standard. Le bouton se trouve sur la barre du robinet-même.

  • Page 18: Descriptions

    Instructions pour l’utilisateur ATTENTION: Maintenir la zone de l’appareil propre et libre des matériaux combustibles, de l’essence et d’autres vapeurs et liquides inflammables. Ne stockez aucun matériel dangereux ou inflammable dans les meubles suspendus sur l’appareil; stockez-les dans un lieu sûr pour éviter les risques potentiels. Pour une utilisation sûre de l’appareil, ne l’employez pas pour le chauffage des locaux.
  • Page 19 Tableau B Brûleur Diamètres recommandés en pouces pour les casseroles (mm) Petit ”-55 ”(90 – 140) ½ Moyen ”- 102 ”(140 – 260) Large ”- 102 ” (180 – 260) Double couronne ”-102 ” (220 – 260) (poêle chinoise) Fig.16 Utilisation correcte des casseroles: - Essuyez le fond de la casserole avant de la positionner sur la plaque de cuisson.
  • Page 20 Se référer au certificat de garantie pour les conditions de la garantie. Revendeur /Importateur: Nom, adresse, téléphone CENTRES DE SERVICE Téléphone FABRICANT: BERTAZZONI SPA VIA PALAZZINA, 8 – 42016 – GUASTALLA (REGGIO E.) ITALY Tél. 0522/226411 – fax 0522/226440 – http://www.bertazzoni-italia.com...
  • Page 21 DESCRIPTION COMPOSANT P34500X - BUILT-IN HOB 202365 LOAD BEARING BOTTOM FOND 202359 DOUBLE CARTER P9 PROTECTION DU FOND PORTANT 202271 FIXING HOOK CROCHET DE FIXAGE 504160 COVER FOR SMALL FLAME SPREADER COUVERCLE PETIT 504161 COVER FOR MEDIUM BURNER COUVERCLE MOYEN 504162 COVER FOR RAPID BURNER COUVERCLE RAPID...
  • Page 23 SERVICING - WARNING - WORK SAFELY Where necessary disconnect from electricity and gas before starting. Check product is safe when you have finished. BERTAZZONI PRO BUILT-IN HOBS SERVICE GUIDE Bertazzoni PRO built-in hobs – Service guide rev. 28 08 2006...
  • Page 24 Installation of any gas-fired equipment should be made by a licensed plumber. o A manual gas shut-off valve must be installed in the gas supply line ahead of the oven in the gas flow for safety and ease of service. Bertazzoni PRO built-in hobs – Service guide rev. 28 08 2006...

  • Page 25: Troubleshooting

    • Gas detector spray • Phillips screw driver ph 2 X 100 • Torx screw driver • Flat screw driver small • Single head wrench (8,14) • Tubular spanner diam. 7 Bertazzoni PRO built-in hobs – Service guide rev. 28 08 2006...
  • Page 26 • Gas smell • Electric ignition is not working • The burner does not remain on • Too high flame • Blocked gas tap • Continuous sparking • Electric problem Bertazzoni PRO built-in hobs – Service guide rev. 28 08 2006...
  • Page 27 CHECK: injector TIP: on one burner at min CHECK: gas valve No gas TIP: on all burners CHECK: gas supply line – gas pressure TIP: on one burner CHECK: injector Bertazzoni PRO built-in hobs – Service guide rev. 28 08 2006...
  • Page 28 CHECK: spark generator or daisychain switch TIP: on one burner CHECK: spark plug The burner does not remain on TIP: one burner does not remain on CHECK: thermocouple or gas valve Bertazzoni PRO built-in hobs – Service guide rev. 28 08 2006...
  • Page 29 TIP: one blocked gas tap CHECK: gas valve Continuous sparking TIP: on all burners CHECK: daisychain switch Electric problem TIP: just inserted the electric plug CHECK: cable box – power supply cable Bertazzoni PRO built-in hobs – Service guide rev. 28 08 2006...

  • Page 30: Gas Manifold

    • Work top • Gas manifold Specific parts • Spark generator • Daisychain switch • Gas valve • Injector • Spark plug • Cable box • Thermocouple • Tubes Bertazzoni PRO built-in hobs – Service guide rev. 28 08 2006...
  • Page 31 SERVICING - WARNING - WORK SAFELY Where necessary disconnect from electricity and gas before starting. Check product is safe when you have finished. Work top Bertazzoni PRO built-in hobs – Service guide rev. 28 08 2006...
  • Page 32 SERVICING - WARNING - WORK SAFELY Where necessary disconnect from electricity and gas before starting. Check product is safe when you have finished. Gas manifold Bertazzoni PRO built-in hobs – Service guide rev. 28 08 2006...
  • Page 33 SERVICING – WARNING - WORK SAFELY Where necessary disconnect from electricity and gas before starting. Check product is safe when you have finished. Spark generator Daisychain switch Bertazzoni PRO built-in hobs – Service guide rev. 28.08.2006...
  • Page 34 SERVICING – WARNING - WORK SAFELY Where necessary disconnect from electricity and gas before starting. Check product is safe when you have finished. Gas valve Injector Bertazzoni PRO built-in hobs – Service guide rev. 28.08.2006...
  • Page 35 SERVICING – WARNING - WORK SAFELY Where necessary disconnect from electricity and gas before starting. Check product is safe when you have finished. Spark plug Cable box Bertazzoni PRO built-in hobs – Service guide rev. 28.08.2006...
  • Page 36 SERVICING – WARNING - WORK SAFELY Where necessary disconnect from electricity and gas before starting. Check product is safe when you have finished. Thermocouple Bertazzoni PRO built-in hobs – Service guide rev. 28.08.2006...
  • Page 37 SERVICING – WARNING - WORK SAFELY Where necessary disconnect from electricity and gas before starting. Check product is safe when you have finished. Tubes Bertazzoni PRO built-in hobs – Service guide rev. 28.08.2006...
  • Page 38 Where necessary disconnect from electricity and gas before starting. Check product is safe when you have finished. Electric diagram Wiring diagram description 1. Cable terminal 2. Spark generator 3. Ignition spark L. Black N. White T. Green (earth) Bertazzoni PRO built-in hobs – Service guide rev. 28.08.2006...
