REPAIRS

REPLACING THE POWER SUPPLY CABLE

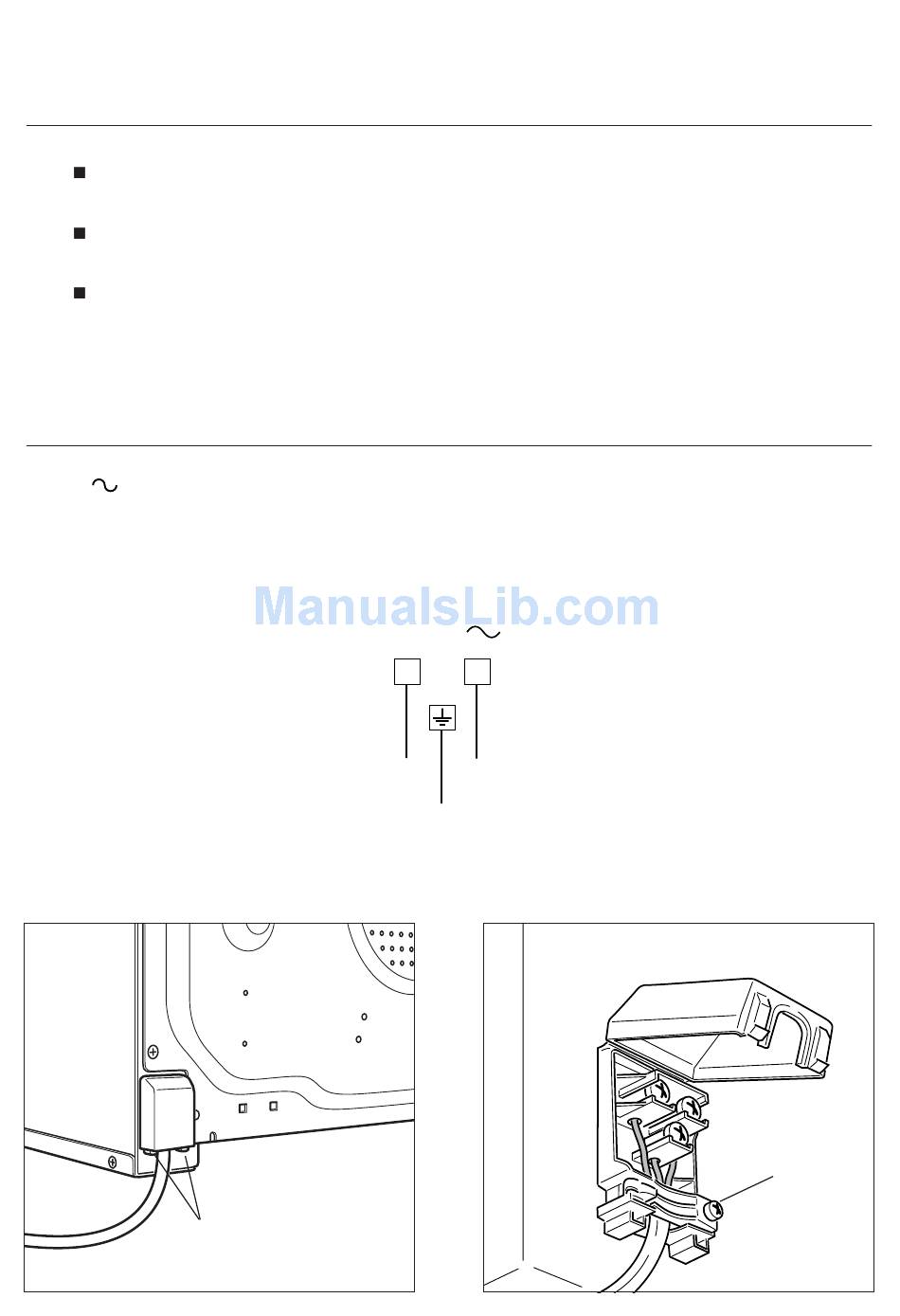

Unhook the terminal board cover by inserting a screwdriver into the two
hooks "A" (fig. 1.2).
Open the cable gland by unscrewing screw "F" (fig. 1.3), unscrew the
terminal screws and remove the cable.
The new supply cable, of suitable type and section, is connected to the
terminal board following the diagram fig. 1.1.
FEEDER CABLE SECTION TYPE HO5RR-F
230 V
6
2
3 x 1,5 mm
A
Fig. 1.2
230 V
L N (L )
1 2
E
Fig. 1.1
F
Fig. 1.3
