DeLonghi PYROLYTIC OVENS Installation And Use Manual page 7

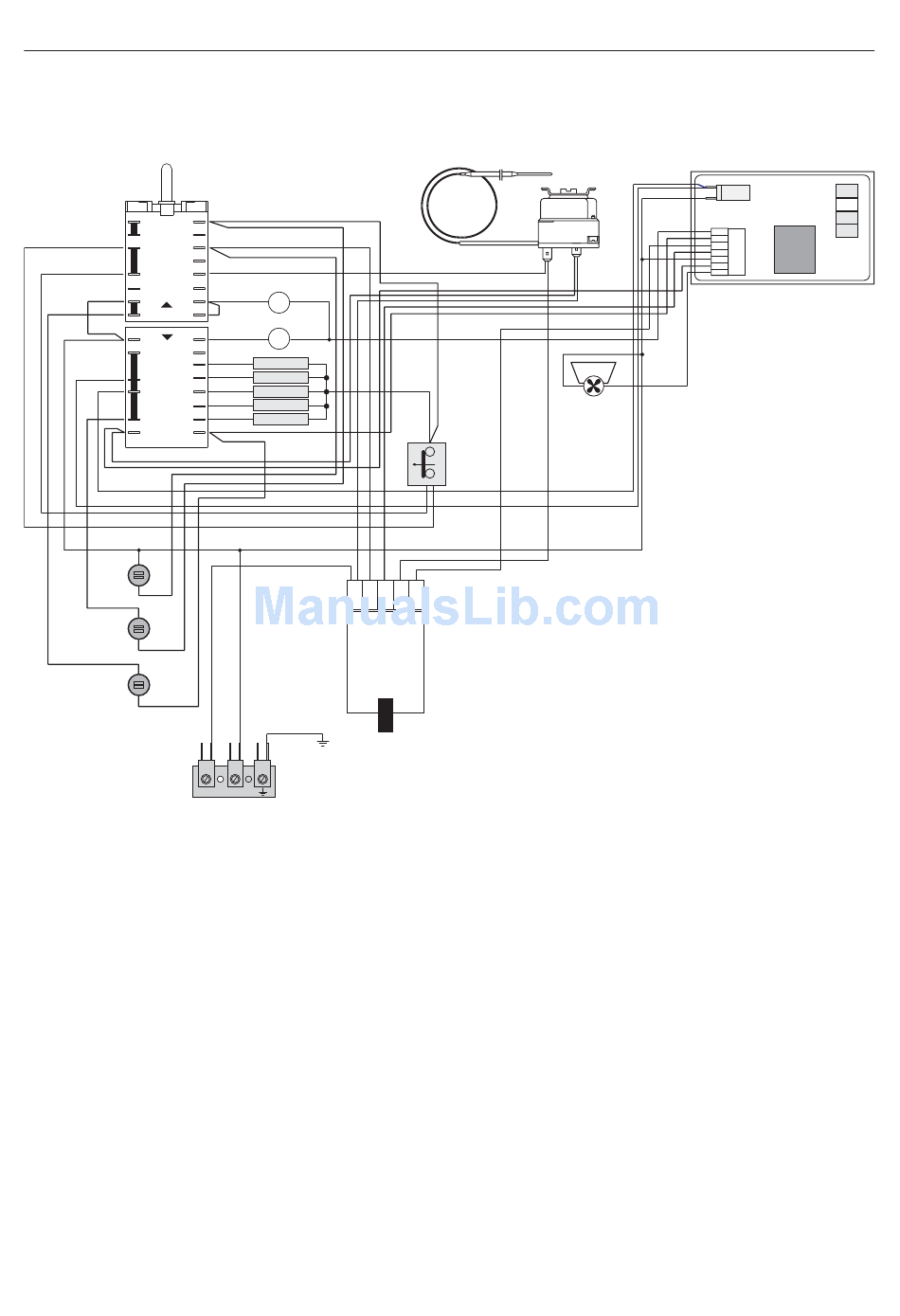

ELECTRIC DIAGRAM - multifunction OVENS
F1
1a 1
2a 2
3a 3
4
5a 5
6a 6
7a
7
8a 8
9a 9
10a 10
11
12
12a
13a 13
14
15a 15
16a 16
SD
ST
SL
M
F1 Oven switch
TH Safety thermostat
ST1 Oven sensor switch
ST3 Oven door switch
ST4 Encoder switch
PR Programmer
TL Thermal overload
DL Door locking safety device
CF Cooling fan
LF Oven lamp
V Fan
ST Thermostat pilot lamp
SL Line pilot lamp
SD Door locking pilot lamp
V
LF LF
CIR
G
C
S INT.
S EXT.
34 33
T
L N
TL
4 3 2
DL
CIR
G
C
S INT.
S EXT.
M
T
PR
TH
7
6
5
4
3
2
1
CF
1131443
Circular element
Grill element
Top element
Bottom element 1
Bottom element 2
Terminal block
Earth connection
ST1
ST3
ST4
Fig. 1.4
7
