DeLonghi PYROLYTIC OVENS Installation And Use Manual page 9

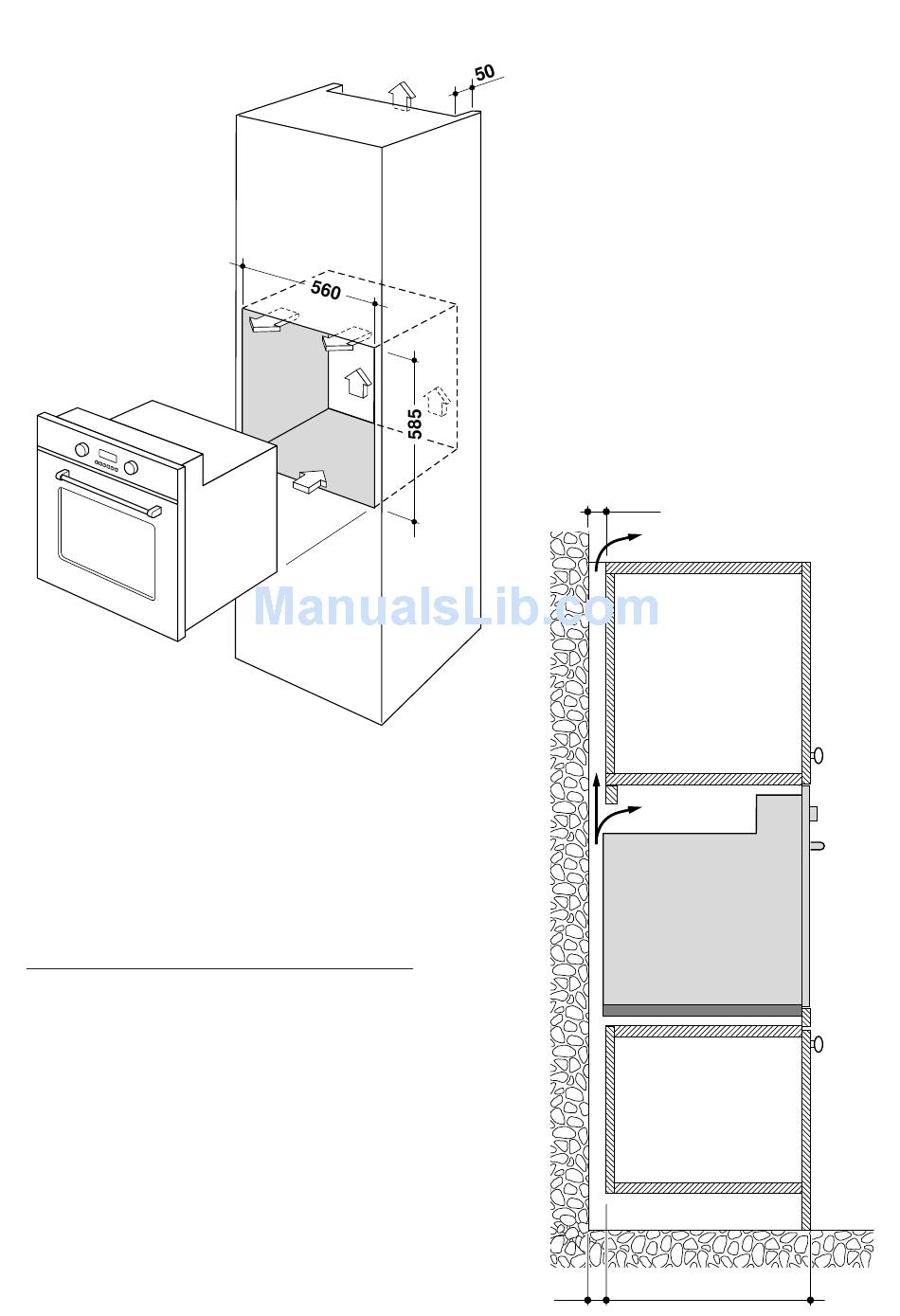

Fig. 1.7
Fig. 1.8
50 mm
FITTING THE OVEN INTO A
COLUMN
The cabinet should have the dimensions
as per fig. 1.7.
Furthermore it is necessary that the
oven is provided with a chimney as per
fig. 1.8.
If the column unit reaches the ceiling an
outlet must be provided through which
air can flow to the outside
9
50 550
