Removing an
Existing Module
(Model 5xx)
To remove an existing module from a model 5xx bridge/router, follow
these steps:
1 Remove the screw from the standoff.
2 Remove the module.

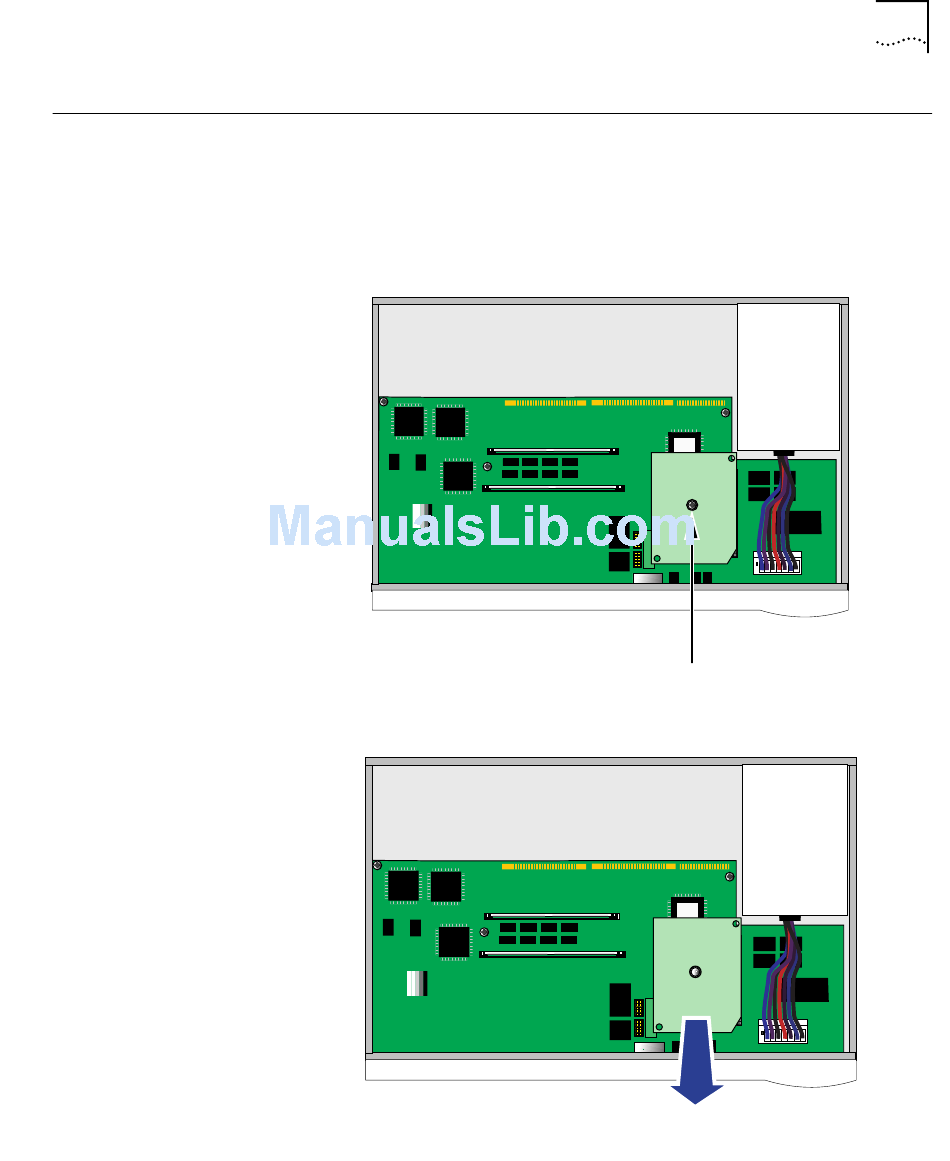

Front panel
Removing an Existing Module (Model 5xx)
Rear panel
Front panel
Remove screw
Lift module straight up off the connectors
65
