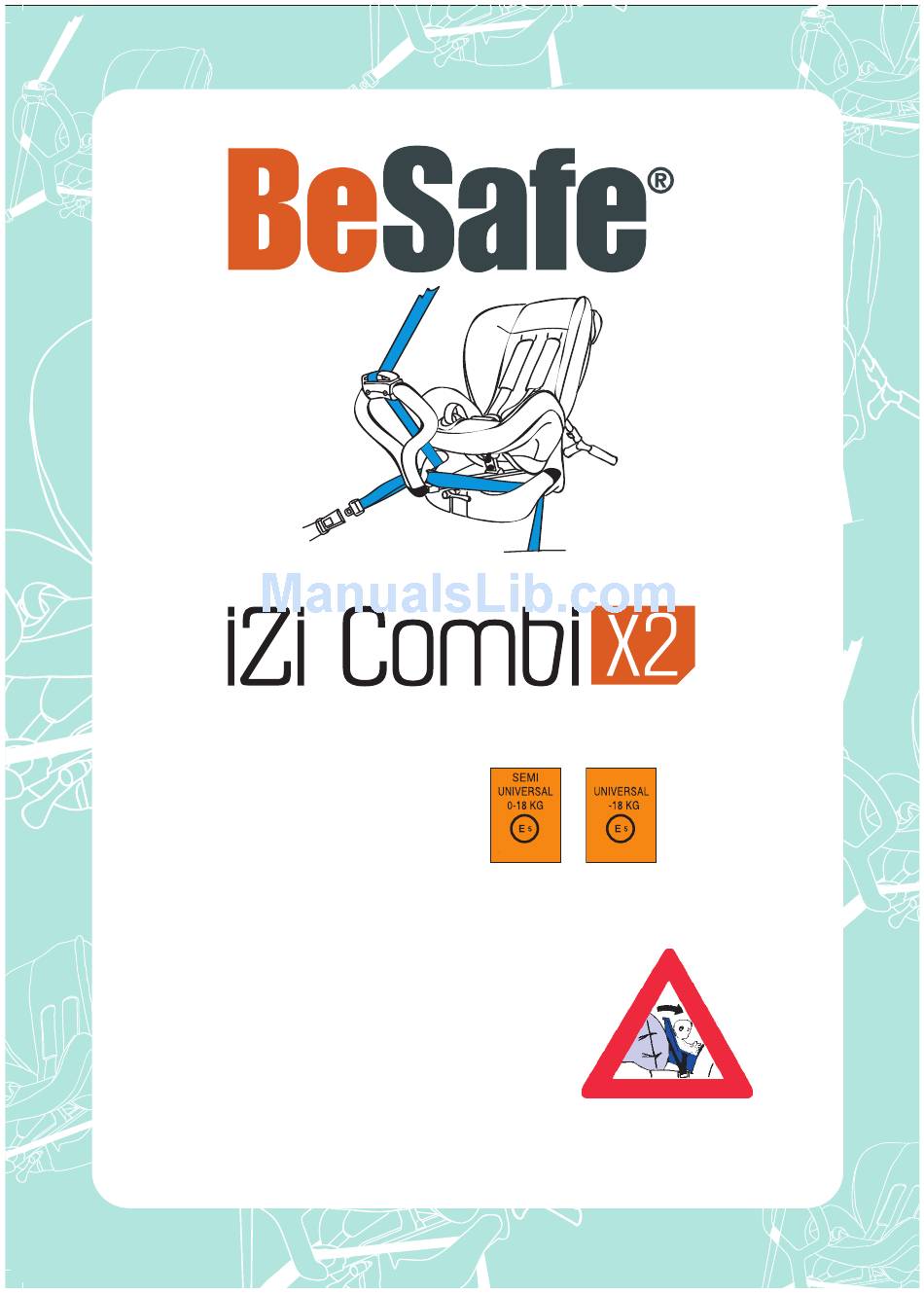

Instruction Manual
E5 04204
E5 04205
44 04
BeSafe iZi Combi is approved in accordance with ECE R
in groups 0 and I, rearward-facing, from 0-18 kg (approx.
0-4 years), and in group 1 forward-facing, from 9-18 kg (approx. 1-4 years), recommended from approx. 2.5-4 years.
BeSafe iZi Combi is installed using the car's 3-point/2-point seat belt and anchor belts in the rearward-facing position.
In the forward-facing position, it is mounted using the car's 3-point belt.
important!
Before doing anything else, carefully read page 17 under the heading:
Sequence for rearward-facing installation:
For fitting the anchor belts in rearward facing position, see page 2.
For mounting in the front seat in rearward facing position, see page 4.
For mounting in the back seat in rearward facing position, see page 8.
Forward-facing:
For mounting in the forward-facing position, see page 13
For placing the child in the seat, see page 15.
NB BeSafe iZi Combi must never be mounted in front
passenger seats with an active airbag. * read more on page 4
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the iZi Combi x2 and is the answer not in the manual?

Questions and answers

Related Manuals for BESAFE iZi Combi x2

Summary of Contents for BESAFE iZi Combi x2

  • Page 1 0-4 years), and in group 1 forward-facing, from 9-18 kg (approx. 1-4 years), recommended from approx. 2.5-4 years. BeSafe iZi Combi is installed using the car’s 3-point/2-point seat belt and anchor belts in the rearward-facing position. In the forward-facing position, it is mounted using the car's 3-point belt.
  • Page 2 Fitting of supplied anchor belts Alternative A 1. Release the fixing bolts on the car seat’s two forward or rear fixing points. 2. The attachment fittings have to go underneath the slide rail on the car seat chassis. Insert an attachment fitting on either side of the car seat's two forward fixing points, see fig.
  • Page 3 Alternative C – Fitting in the front seat 1. Join the two anchor belts together to make a single belt by putting the lock of belt 1 through the loop of belt 2 and then through the loop of belt 1. Pull tight.
  • Page 4 Installation of BeSafe iZi Combi in car’s front seat: NB Must never be fitted in the front seat of cars with an active airbag in the passenger seat. In some cars the airbag on the passenger side can be deactivated –...
  • Page 5 Fig. 7 4. Bring the passenger seat forwards so that BeSafe iZi Combi touches the dashboard. If you wish, put a protective cloth between the dashboard and the seat. Lock the safety leg at the disired heigh using the locking bolt.
  • Page 6 T-0427 iZi COMBI X1 N F GB Mont 16-02-06 09:24 Side 6 7. Fitting the front seat belt Pull out the 3-point belt and place the hip belt over the base of the child seat and behind the horns on each side. Fasten the seat belt, click.
  • Page 7 T-0427 iZi COMBI X1 N F GB Mont 16-02-06 09:24 Side 7 12.Adjustment of front brace Move the front brace outwards by using the ratchet lever. See fig. 12 so the front brace presses tightly into the seat back. See fig. 13. Adjust the ratchet to tight/slack position using the knobs at the top of the ratchet lever.
  • Page 8 T-0427 iZi COMBI X1 N F GB Mont 16-02-06 09:24 Side 8 Mounting of BeSafe Combi in car back seat: 1. Front brace Move the front brace to the inmost position, to the stop mark, using the ratchet lever. See fig. 15, fig. 15a and point 12 on page 7 Fig.
  • Page 9 T-0427 iZi COMBI X1 N F GB Mont 16-02-06 09:24 Side 9 4. Fitting the anchor belts Anchor belts must be crossed over to meet the locking tongues on the child's seat and locked, click. See fig. 18. do not tighten the belts until the mounting process is complete.
  • Page 10 T-0427 iZi COMBI X1 N F GB Mont 16-02-06 09:24 Side 10 Fitting of 3-point seat belt on back seat 5. Pull out the 3-point belt and place the hip belt over the base of the child seat and behind the horns on each side.
  • Page 11 T-0427 iZi COMBI X1 N F GB Mont 16-02-06 09:24 Side 11 Adjustment of front brace 13.To achieve stable and secure mounting, move the front brace outwards with the ratchet lever so the brace is tightly pressed against the seat back. See fig.
  • Page 12 Mounting of BeSafe iZi Combi in car in forward-facing position. 1. To use the BeSafe iZi Combi in forward-facing position, remove the front brace fig. 24a. 2. Remove the lower part of the safety leg see fig. 24b. Fit the black plastic plug, enclosed by purchase, to the end of the support leg.This will protect the original car seat cover.
  • Page 13 T-0427 iZi COMBI X1 N F GB Mont 16-02-06 09:24 Side 13 Click! Klikk! Fig. 26 Fig. 27 ≤ 7. Thread the shoulder belt through the 6. Pull out the seat belt, place the belt housings at the top of each side hip belt over the bottom base of of the child seat.
  • Page 14 T-0427 iZi COMBI X1 N F GB Mont 16-02-06 09:24 Side 14 Fig. 30 10. Use the ratchet lever to tighten the seat properly, see fig. 30 Fig. 31 11. Adjust the ratchet lever to tight/slack position using the Fig. 32 knobs at the top of the ratchet lever, see red arrows on fig.
  • Page 15 T-0427 iZi COMBI X1 N F GB Mont 16-02-06 09:24 Side 15 P lac ing the child in the s eat 1. P ull out the s houlder belts while pres s ing the button on the central adjus tment mechanis m, s ee green arrow fig.
  • Page 16 Fig. 29 6. IIt is very important to hook the belts on correctly and that the belt loop is Washing the cover in position round the metal brace before refitting the cover. If any problems arise, contact your BeSafe dealer.
  • Page 17 T-0427 iZi COMBI X1 N F GB Mont 16-02-06 09:24 Side 17 Important B eS afe iZi C ombi c an only be us ed in c ars lis ted on the next page with a 3-point/2-point s eat belt, fixed or inertia reel belts approved under E C E Order no.

  • Page 18: Important Advice

    Use of non-original accessories or spare parts will invalidate the guarantee and product liability. · BeSafe iZi Combi must not be used without textile cover, and if the latter needs replacement, only original covers must be used. · Any loose objects in the car saloon must be secured or removed to prevent them causing injury in the case of violent braking or an accident.
  • Page 19 T-0427 iZi COMBI X1 N F GB Mont 16-02-06 09:24 Side 19 Carlist for BeSafe iZi Combi C ar model C ar type F ront s eat Middle * S ide A lfa R omeo 155, 164, 156 A udi...
  • Page 20 T-0427 iZi COMBI X1 N F GB Mont 16-02-06 09:24 Side 20 HTS BeSafe as - N-3535 Krøderen www.hts.no...
