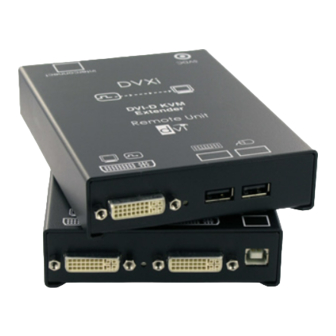

Ihse K462-1W / K462-SA User Manual

DVXI/ET-XM/-XS DVI- KVM-EXTENDER

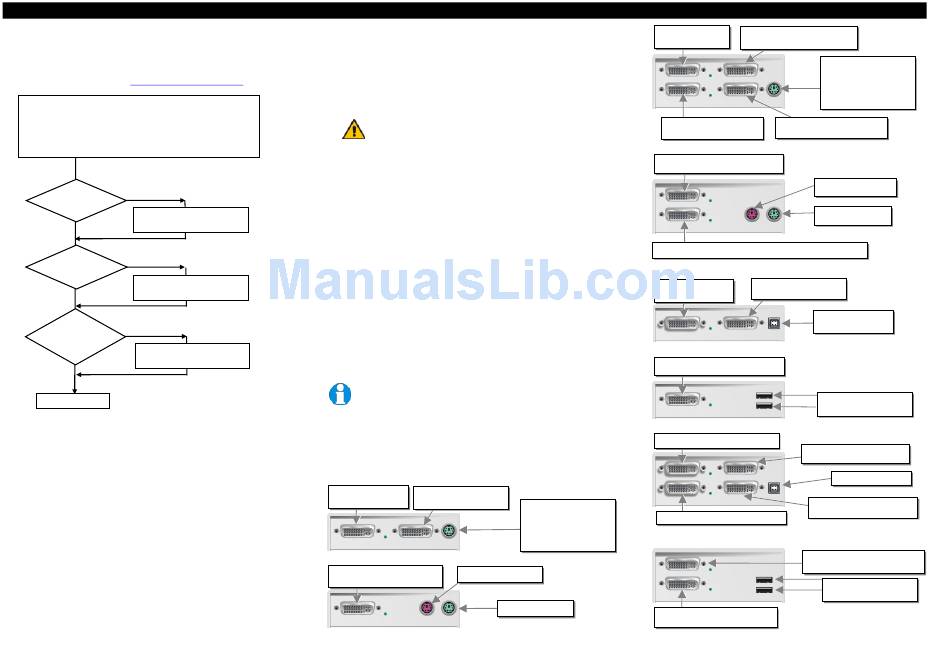

1 Quick Setup

This section briefly describes how to install your KVM extender system. Unless you are an
experienced user, we recommend that you follow the full procedures described in the rest of this
manual. You can download the manual on: http://www.ihse.de/pdf/b462-xx_e.pdf.
Install system
1. Connect Remote unit to KVM.
2. Connect Local unit to CPU or switch.
3. Connect Local and Remote units with matching interconnection cable
(fibre cables).
4. Power up the system.
NO
Power LED
illuminated?
Check p.s.u.'s and connection
to power outlet
YES
NO
Link LED
illuminated ?
Check the fibre cable, and
fibre connectors
YES
Video OK NO
LED ?
illuminated ?
Check settings of graphic card
or boot CPU
YES
Done

2 Installation

For first-time users, we recommend that you carry out a test placement, confined to a single room,
before commencing full installation. This will allow you to identify and solve any cabling problems,
and experiment with the KVM extender system more conveniently.

2.1 Package Contents

You should receive the following items in your extender package (all types):
DVXi/ET KVM-Extender- pair (Local Unit + Remote Unit)
•
2x 5V DC universal power supply for the DVXi/ET - Extender
•
2x German type power cord
•
User manual (Quick Setup)
•
K462-1W, K462-2W, K463-1W und K463-2W (additionally):
DVI combi- connecting cable 1,8m (DVI-I male to DVI-I male, 2x PS2 male)
•
PS2-keyboard-/ mouse adapter for the connection to the local Unit
•
K462-1U, K462-2U, K463-1U und K463-2U (additionally):
DVI-I (1,8m) video cable (DVI-I dual link male-to-male)
•
USB (1,8m) cable (USB type A to type B)
•
K462-2W, K462-2U, K463-2W K463-2U (additionally):
DVI-I (1,8m) video cable (DVI-I dual link male-to-male)
•
If anything is missing, please contact our Technical Support.
manual : http://www.ihse.de/pdf/b462-xw_e.pdf
DVXI/ET-XM/-XS DVI- KVM-EXTENDER

2.2 System Setup

To install your DVXi/ET – Extender system:
1. Switch off all devices.
2. Connect your keyboard, monitor(s) and mouse to the Remote unit (depending on device type).
Please ensure, to not swap Mouse- and Keyboard connector. The Keyboard connector is purple
and the Mouse connector is green.
3. Using the supplied CPU KVM cable(s), connect the keyboard, monitor(s) and mouse
connectors on the computer (or KVM switch). Please ensure, to not swap Mouse- and
Keyboard connector. The Keyboard connector is purple and the Mouse connector is green.
4. Connect the 5V power supply to power the unit.
Only use the power supply originally supplied with this
equipment or a manufacturer-approved replacement.
5. For a dual access system, connect the keyboard, mouse and monitor for the Local console to the
appropriate ports on the Local unit. The ports may also be used to feed into a KVM switch. To
the local (PS2-) Keyboard-/ Mouse port you can attach a Keyboard directly or Mouse/
Keyboard together, using the delivered adapter.
6. Connect the interconnect cable (fibre cable) to the local and the remote unit.
7. Power up the system.

2.3 Interconnection Cable Requirements

To connect the Local and Remote units you will need:
DVI, PS2-Keyboard, PS2-Mouse: Connect the supplied KVM CPU cable set to your CPU
•
(KVM.- Switch, etc.). Please ensure that the connection is tension-free! Devices K462-1W,
K462-2W, K463-1W + K463-2W
DVI, USB-Keyboard, USB-Mouse: Connect the supplied DVI-I cable (DVI-I to DVI-I) and
•
the USB-cable (USB-A to USB-B) to your CPU. Please ensure that the connection is tension-
free! Devices K462-1U, K462-2U, K463-1U + K463-2U
DVI: Connect the supplied DVI CPU cable set to your CPU (KVM.- Switch, etc.). Please
•
ensure that the connection is tension-free! Devices K462-2W, K462-2U, K463-2W und K463-
2U
Fibre Cables:
•
Multimode: Two fibers 50µm or 62.5µm. E.g. I-V(ZN)H 2G50 (In house patch
•
cable)or I-V(ZN)HH 2G62,5 (In house Breakout cable) or I/AD(ZN)H 4G50 (in
house OR outdoor Breakout cable, stress resistant) or A/DQ(ZN)B2Y 4G62,5
(outdoor cable, stress resistant with protection against animal biting) All notations
acc. VDE specification.
Singlemode: Two fibers 9µm. E.g. I-V (ZN)H 2E9 (In house patch cable) or I-
•
V(ZN)HH 2E9 (In house Breakout cable) or I/AD(ZN)H 4E9 (in house OR outdoor
Breakout cable, stress resistant) or A/DQ(ZN)B2Y 4G9 (outdoor cable, stress
resistant with protection against animal biting) All notations acc. VDE specification.
A point to point connection is required. Having one or more patch panels in the
line is possible and allowed. Not allowed is a connection from the fibre link
interface to any other products, especially telecommunications or network
equipment.
Power Supply
•
Connect the supplied 5V/DC power supplies to the Plug terminal on the rear of both Local and
Remote units.

3 Device view (depending on device type)

Please see the manual for audio device views.
Connect to CPU: local DVI-Monitor port Connect
DVI, keyboard, mouse
to Local console monitor
DVXi/ET KVM-Extender type K462-1W und K463-1W Local Unit
Remote DVI-Monitor port– connect to
Remote keyboard port
Remote console monitor
DVXi/ET KVM-Extender Typ K462-1W und K463-1W Remote Unit
manual : http://www.ihse.de/pdf/b462-xw_e.pdf
DVXI/ET-XM/-XS DVI- KVM-EXTENDER
Connect to CPU:
nd
2 DVI-Graphic card
Connect to CPU: 1
Graphic card, keyboard, mouse
DVXi/ET KVM-Extender Type K462-2W and k463-2W Local Unit
nd
2 remote DVI-Monitor port Connect to
Remote console 2
st
1 remote DVI-Monitor port– connect to Remote console 1
DVXi/ET KVM-Extender Type K462-2W und K463-2W Remote Unit
Connect to CPU:
DVI graphic card
DVXi/ET KVM-Extender Type K462-1U / K463-1U Local Unit
remote DVI-Monitor port– connect to
Remote console monitor
DVXi/ET KVM-Extender Type K462-1U / K463-1U Remote Unit
Connect to CPU: 2
Local keyboard/ mouse port
Connect to CPU: 1
Solely Keyboard may be
plugged in directly,
DVXi/ET KVM-Extender Type K462-2U / K463-2U Local Unit
keyboard/mouse through
equipped adapter
Remote mouse port
st
1 remote DVI-Monitor port– connect to
Remote console 1
DVXi/ET KVM-Extender Type K462-2U / K463-2U Remote Unit
manual : http://www.ihse.de/pdf/b462-xw_e.pdf
nd
2 local DVI-Monitor port Connect to
nd
Local console 2 monitor
Local keyboard/ mouse port
Solely Keyboard may be
plugged in directly,
keyboard/mouse through
equipped adapter
st
local DVI-Monitor port Connect to
DVI-
Local console monitor
nd
monitor
Remote keyboard port
Remote mouse port
st
monitor
local DVI-Monitor port Connect
to Local console monitor
Connect to CPU:
USB
Remote keyboard/mouse
port
nd
DVI-Graphic card
nd
2 local DVI-Monitor port Connect
nd
to Local console 2 monitor
Connect to CPU: USB
st
local 1 DVI-Monitor port Connect
st
to Local console 1 monitor
st
DVI-Graphic card
nd
2 remote DVI-Monitor port Connect to
nd
Remote console 2 monitor
Remote keyboard/ mouse
port
st
monitor
