Ihse K466-0M Quick Setup Manual

DVXI/ME-XM /-XS DVI- MEDIA-EXTENDER

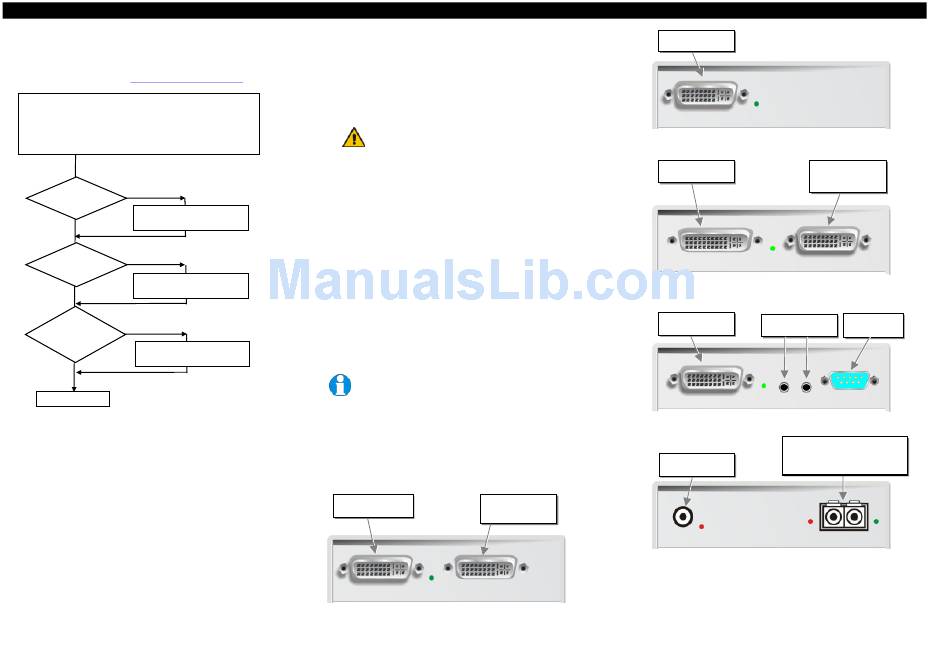

1 Quick Setup

This section briefly describes how to install your KVM extender system. Unless you are an
experienced user, we recommend that you follow the full procedures described in the rest of this
manual. You can download the manual on: http://www.ihse.de/pdf/b466-xx_e.pdf.
Install system
1. Connect Remote unit to the monitor.
2. Connect Local unit to graphic source or switch.
3. Connect Local and Remote units with matching interconnection cable
(fibre cables).
4. Power up the system.
NO
Power LED
illuminated?
Check p.s.u.'s and connection
to power outlet
YES
NO
Link LED
illuminated ?
Check the fibre cable, and
fibre connectors
YES
Video OK
NO
LED ?
illuminated ?
Check settings of graphic card
or boot CPU
YES
Done
2 Installation
For first-time users, we recommend that you carry out a test placement, confined to a single room,
before commencing full installation. This will allow you to identify and solve any cabling problems,
and experiment with the Media extender system more conveniently.
2.1 Package Contents
You should receive the following items in your extender package (all types):
DVXi/ME Media-Extender- pair (Local Unit + Remote Unit)
•
2x 5V DC universal power supply for the DVXi/ME - Extender
•
2x German type power cord
•
User manual (Quick Setup)
•
DVI-I (1,8m) video cable (DVI-I dual link male-to-male)
•
If anything is missing, please contact Technical Support
manual : http://www.ihse.de/pdf/b466-xx_e.pdf
DVXI/ME-XM /-XS DVI- MEDIA-EXTENDER
2.2 System Setup
To install your DVXi/ME – Extender system:
1. Switch off all devices.
2. Connect your monitor(s) and speakers to the Remote unit (depending on device type).
3. Using the supplied DVI-cable(s), connect the local unit to the computer
4. Connect the 5V power supply to power the unit.
Only use the power supply originally supplied with this
equipment or a manufacturer-approved replacement.
5. For a dual access system, connect the monitor for the Local console to the appropriate port on
the Local unit.
6. Connect the interconnect cable to the INTERCONNECT socket(s)
7. Power up the system.
2.3 Interconnection Cable Requirements
To connect the Local and Remote units you will need:
DVI: Connect the supplied DVI CPU cable set to your CPU (Media.- Switch, etc.). Please
•
ensure that the connection is tension-free!
Fibre Cables:
•
Multimode: Two fibers 50µm or 62.5µm. E.g. I-V(ZN)H 2G50 (In house patch
•
cable)or I-V(ZN)HH 2G62,5 (In house Breakout cable) or I/AD(ZN)H 4G50 (in
house OR outdoor Breakout cable, stress resistant) or A/DQ(ZN)B2Y 4G62,5
(outdoor cable, stress resistant with protection against animal biting) All notations
acc. VDE specification.
Singlemode: Two fibers 9µm. E.g. I-V (ZN)H 2E9 (In house patch cable) or I-
•
V(ZN)HH 2E9 (In house Breakout cable) or I/AD(ZN)H 4E9 (in house OR outdoor
Breakout cable, stress resistant) or A/DQ(ZN)B2Y 4G9 (outdoor cable, stress
resistant with protection against animal biting) All notations acc. VDE specification.
A point to point connection is required. Having one or more patch panels in the
line is possible and allowed. Not allowed is a connection from the fibre link
interface to any other products, especially telecommunications or network
equipment.
Power Supply
•
Connect the supplied 5V/DC power supplies to the Plug terminal on the rear of both Local and
Remote units.
3 Device view (depending on device type)
To CPU: Local DVI-Monitor
DVI port Connect to Local
console monitor
K466-0M, K466-0S, K467-0M, K467-0S, 468-0M and K468-0S Local Unit
manual : http://www.ihse.de/pdf/b466-xx_e.pdf
DVXI/ME-XM /-XS DVI- MEDIA-EXTENDER
Output for DVI-
Monitor
K466-0M, K466-0S, K467-0M, K467-0S, 468-0M und K468-0S Remote Unit
To CPU:
Local DVI-Monitor
DVI + Audio
port Connect to Local
console monitor
DVXi/ME Media-Extender Type K466-AM, K466-AS, K467-AM, K467-AS, 468-AM
and K468-AS Local Unit
Ausgang für DVI-
Audio Out
Monitor
DVXi/ME Media-Extender Type K466-AM, K466-AS, K467-AM, K467-AS, 468-AM
and K468-AS Remote Unit
INTERCONNECT – carries video and
data signals – connect to Local/
remote unit with fibre cable
Connect to 5V Power
Fibre-Plug type: LC
supply
DVXi/ME Media-Extender Type K466-0M, K466-AM, K466-0S, K466-ASW, K467-
0M, K467-AM, K467-0S,K467-AS, K468-0M K468-AM, K468-0S and K468-AS
Local Unit und Remote Unit
manual : http://www.ihse.de/pdf/b466-xx_e.pdf
Serial Out
