Ihse K472-SSH Quick Setup

DXXI- KVM-EXTENDER

1 Quick Setup

This section briefly describes how to install your KVM extender system. Unless you are an
experienced user, we recommend that you follow the full procedures described in the rest of this
manual. You can download the manual on: http://www.ihse.de/pdf/b472-xx_e.pdf.
Install system
1. Connect Local unit to CPU or switch.
2. Connect Remote unit to KVM.
3. Connect Local unit and Remote unit with Multimode fibre cables.
4. Power up the system.
NO
Power LED
illuminated?
Check p.s.u.'s and connection
to power outlet
YES
NO
Link LED*
illuminated?
Check the fibre cable, and
fibre connectors
YES
Video OK NO
LED**
illuminated?
Check settings of graphic card
or boot CPU
YES
Link LEDs are the LEDs at the fibre sockets
*
Done
(Fibre DVI 1, Fibre DVI 2 and/or USB)
** Video LEDs are the LEDs at the DVI sockets
(DVI1 and/or DVI 2)

2 Installation

For first-time users, we recommend that you carry out a test placement, confined to a single room,
before commencing full installation. This will allow you to identify and solve any cabling problems,
and experiment with the KVM extender system more conveniently.

2.1 Package Contents

You should receive the following items in your extender package:
DXXi KVM-Extender- pair (Local Unit + Remote Unit)
•
2x 5V DC universal power supply for the DXXi - Extender
•
2x German type power cord
•
User manual (Quick Setup)
•
DVI (1,8m) video cable(s) (DVI-I male-to-male)
•
K472-SSH and K472-SST (1 pc.); K472-DSH, K472-DST and K472-SWH (2 pcs.)
USB (1,8m) cable(s) (USB type A to type B) (1 pc.)
•
K472-SWH and K472-DWH (2 pcs.)
If anything is missing, please contact our Technical Support
(see Appendix F – Calling Technical Support).
Manual: http://www.ihse.de/pdf/b472-xx_e.pdf
DXXI- KVM-EXTENDER

2.2 Interconnection Cable Requirements

To connect the Local and Remote units you will need:
DVI: Connect the supplied DVI cable(s) to your CPU(s) (KVM - Switch, etc.). Please ensure
•
that the connection is tension-free!
USB-Keyboard, USB-Mouse, USB 2.0: Connect the supplied USB cable(s) to your CPU
•
(USB-A to USB-B). Please ensure that the connection is tension-free!
Fibre Cables:
•
Multimode: Two fibres 50µm or 62.5µm. E.g. I-V(ZN)H 2G50 (In house patch
•
cable)or I-V(ZN)HH 2G62,5 (In house Breakout cable) or I/AD(ZN)H 4G50 (In
house OR Outdoor Breakout cable, stress resistant) or A/DQ(ZN)B2Y 4G62,5
(Outdoor cable, stress resistant with protection against animal biting). All notations
acc. to VDE specification.
1 fibre: K472-SSH and K472-SWH
2 fibre: K472-DSH, K472-SST, K472-SDH and K472-DWH
3 fibre: K472-DST and K472-SDT
A point to point connection is required. Having one or more patch panels in the
line is possible and allowed. Not allowed is a connection from the fibre link
interface to any other products, especially telecommunications or network
equipment.
Power Supply: Connect the supplied 5V/DC power supplies to the Plug terminal on the rear of
•
both the local and the remote unit.

2.3 System Setup

To install your DXXi – Extender system:
1. Switch off all devices.
2. Connect your keyboard, monitor(s) and mouse to the Remote unit (depending on device type).
3. Using the supplied CPU KVM cable(s), connect the local unit to your computer (or KVM
switch).
4. Connect the interconnect cable (fibre cable) to the local and the remote unit.
To ensure a stable data connectionyou must hear the SC connectors of the fibre
cable snap into the sockets and the Link LEDs must be on.
5. Connect the 5V power supply to power the unit.
Only use the power supply originally supplied with this
equipment or a manufacturer-approved replacement.
6. Power up the system.
Manual: http://www.ihse.de/pdf/ b472-xx_e.pdf
DXXI- KVM-EXTENDER

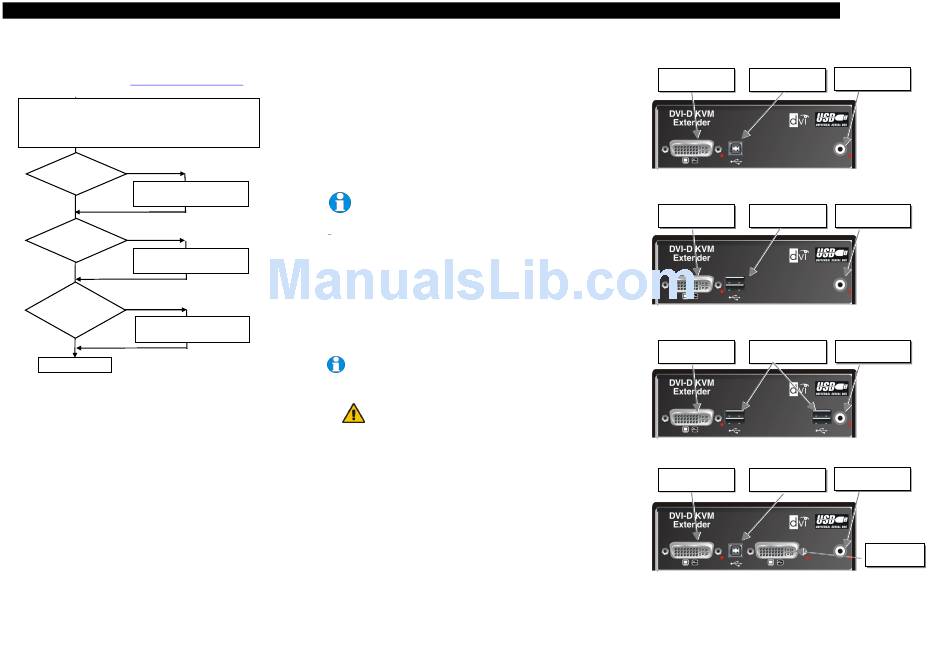

3 Device Views

Connect to CPU Connect to CPU
DVI Port USB Port

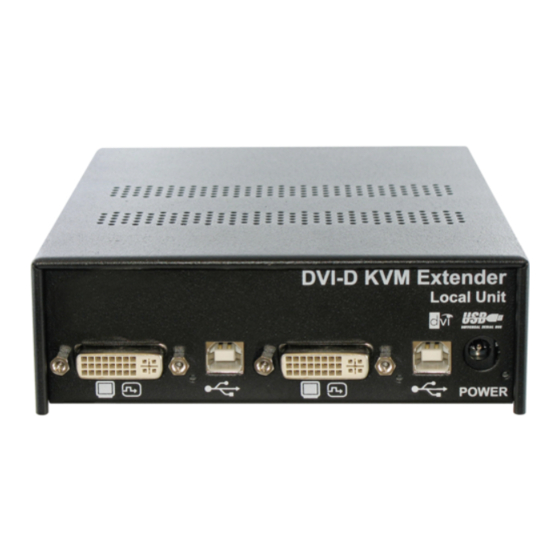

Local Unit – Type K472-SSH, K472-SST, K472-SDH and K472-SDT
Connect to Remote Connect to Remote
DVI Monitor
USB-Keyboard/ Mouse
Remote Unit HID – Type K472-SSH and K472-SDH
Connect to Remote Connect to Remote
DVI Monitor USB 2.0 Devices
Remote Unit USB 2.0 – Type K472-SST and K472-SDT
Connect to CPU Connect to CPU
DVI Port #1 USB Port
Local Unit – Type K472-DSH and K472-DST
Manual: http://www.ihse.de/pdf/ b472-xx_e.pdf
Connect to
5V Power Supply
Connect to
5V Power Supply
Connect to
5V Power Supply
Connect to
5V Power Supply
Connect to CPU
DVI Port #2
