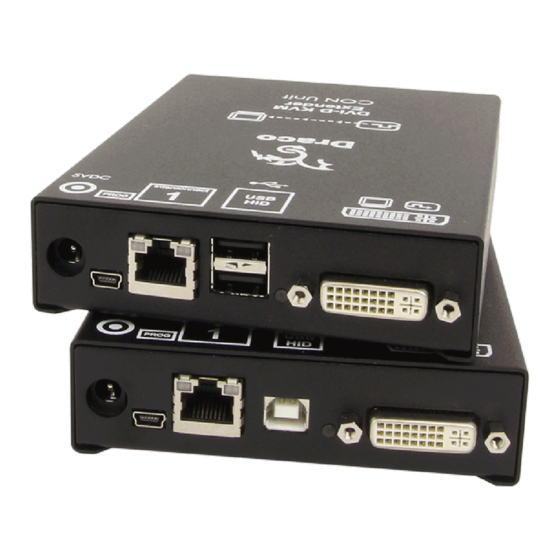

User Manual Edition: 2014-04-15 Draco KVM Extender Model: K477 Series IHSE GmbH Maybachstrasse 11 88094 Oberteuringen Germany info@ihse.de www.ihse.de Tel. +49 7546-9248-0 Fax +49 7546-9248-48... - Page 2 Draco KVM Extender Copyright © 2014. All rights reserved. This information may not be reproduced in any manner without the prior written consent of the manufacturer. Information in this document is subject to change without notice. Trademarks All trademark and trade names mentioned in this document are acknowledged to be the property of their respective owners.
-
Page 3: Table Of Contents
Contents Contents About This Manual ............... 6 Scope.................. 6 Validity ................6 Cautions and Notes ............6 Safety Instructions ............... 7 Description ................... 8 Application ................8 System Overview ..............8 Product Range ..............10 Upgrade Kits ..............11 Accessories............... 11 Device Views .............. - Page 4 Draco KVM Extender Installation .................. 29 Package Contents............. 29 System Setup..............31 4.2.1 KVM-Extender Setup .......... 31 4.2.2 Setup of Optional Modules........32 Example Applications............33 Configuration................35 Transmission Parameters ..........35 DDC Settings ..............35 Command Mode ............... 36 USB-HID Ghosting ............
- Page 5 Certificates.................. 63 10.1 CE Declaration Of Conformity........... 63 10.2 North American Regulatory Compliance ......64 10.3 WEEE ................64 10.4 RoHS/RoHS 2..............64 Glossary..................65 Pos: 1 /806-IHSE/Zu diesem Handbuch/ATB_Zu diesem Handbuch @ 5\mod_1278573163276_6.doc @ 41510 @ 1222 @ 1 2014-04-15...
-
Page 6: About This Manual
This symbol indicates important information to help you make the best use of this product. This symbol indicates best practice information to show recommended and optimal ways to use this product in an efficient way. Pos: 2 /806-IHSE/Sicherheitshinweise/ATB_Sicherheitshinweise @ 5\mod_1278573321245_6.doc @ 41528 @ 1 @ 1 2014-04-15... -
Page 7: Safety Instructions
Do not attempt to open or repair the KVM Extender. There are no user serviceable parts inside. Please contact your dealer or manufacturer if there is a fault. Pos: 3 /806-IHSE/Beschreibung/UEB_Beschreibung @ 5\mod_1278573379151_6.doc @ 41546 @ 1 @ 1 2014-04-15... -
Page 8: Description
Draco KVM Extender Description Pos: 4 /806-IHSE/Beschreibung/Verwendungszweck/VAR_KVM_Cat X / Glasfaser @ 5\mod_1278933037886_6.doc @ 42823 @ @ 1 Application The KVM Extender is used to increase the distance between a source (computer, CPU) and its console (keyboard, mouse, and other peripheral devices). - Page 9 Console (monitor, keyboard, mouse) Second monitor (option, only with Dual-Head devices) USB 2.0 devices (option, only with 2x USB 2.0 devices) See Chapter 4.3, Page 33 for installation examples. Pos: 6 /806-IHSE/Beschreibung/Gerätetypen/477-xx_COMP @ 5\mod_1291120125984_6.doc @ 44563 @ 2 @ 1 2014-04-15...
-
Page 10: Product Range
Example K477-1SHC: CPU Unit: L477-1SHC CON Unit: R477-1SHC All devices of the K477 series are technically compatible to the devices of the K474 series. Pos: 7 /806-IHSE/Beschreibung/Einbauoptionen/477-xx @ 5\mod_1278933558855_6.doc @ 42879 @ @ 1 2014-04-15... -
Page 11: Upgrade Kits
Please note that you will need at least 0,5 U (height unit) for the ventilation above the extenders, if you mount them into racks. Pos: 8 /806-IHSE/Beschreibung/Zubehör/477-xx_COMP @ 5\mod_1291120662750_6.doc @ 44582 @ 2 @ 1 Accessories Model... -
Page 12: Device Views
Service port Connect to interconnect cable Connect to interconnect cable To CPU: USB-HID Connect to USB-HID devices To CPU: DVI-D Connect to DVI monitor Pos: 12 /806-IHSE/Beschreibung/Geräteansichten/477-xx_COMP/1SECA (mit Analog-Audio / Seriell) @ 5\mod_1291647476005_6.doc @ 45820 @ 3 @ 1 2014-04-15... -
Page 13: Model K477-1Seca (Analog Audio / Serial)
Connect to serial (D-Sub 9) Audio IN Audio IN Audio OUT Audio OUT To CPU: USB 2.0 Connect to USB 2.0 devices Pos: 13 /806-IHSE/Beschreibung/Geräteansichten/477-xx_COMP/1SESA / -1SEXA (mit Analog-Audio / Seriell) @ 5\mod_1291647640927_6.doc @ 45838 @ 3 @ 1 2014-04-15... -
Page 14: Model K477-1Sesa / -1Sexa (Analog Audio / Serial)
Connect to serial (D-Sub 9) Connect to serial (D-Sub 9) Audio IN Audio IN Audio OUT Audio OUT To CPU: USB 2.0 Connect to USB 2.0 devices Pos: 14 /806-IHSE/Beschreibung/Geräteansichten/477-xx_COMP/1SECD (mit Digital-Audio) @ 5\mod_1291647722818_6.doc @ 45856 @ 3 @ 1 2014-04-15... -
Page 15: Model K477-1Secd (Digital Audio)
S/PDIF output (RCA) AES/EBU input (Mini-XLR) AES/EBU output (Mini-XLR) S/PDIF input (TOSLINK) S/PDIF output (TOSLINK) To CPU: USB 2.0 Connect to USB 2.0 devices Pos: 15 /806-IHSE/Beschreibung/Geräteansichten/477-xx_COMP/1SESD / -1SEXD (mit Digital-Audio) @ 5\mod_1291647770271_6.doc @ 45874 @ 3 @ 1 2014-04-15... -
Page 16: Model K477-1Sesd / -1Sexd (Digital Audio)
S/PDIF input (RCA) S/PDIF output (RCA) AES/EBU input (Mini-XLR) AES/EBU output (Mini-XLR) S/PDIF input (TOSLINK) S/PDIF output (TOSLINK) To CPU: USB 2.0 Connect to USB 2.0 devices Pos: 16 /806-IHSE/Beschreibung/Geräteansichten/477-xx_COMP/1STC (USB 2.0 Cat X) @ 6\mod_1299603229062_6.doc @ 49190 @ @ 1 2014-04-15... -
Page 17: Model K477-1Stc (Usb 2.0 Cat X)
Service port 2 Service port 2 Connect to interconnect cable 2 Connect to interconnect cable 2 To CPU: USB 2.0 Connect to USB 2.0 devices Pos: 17 /806-IHSE/Beschreibung/Geräteansichten/477-xx_COMP/1STS (USB 2.0 Glasfaser) @ 6\mod_1299603305359_6.doc @ 49208 @ 3 @ 1 2014-04-15... -
Page 18: Model K477-1Sts (Usb 2.0 Fiber)
Service port 2 Service port 2 Connect to interconnect cable 2 Connect to interconnect cable 2 To CPU: USB 2.0 Connect to USB 2.0 devices Pos: 18 /806-IHSE/Beschreibung/Geräteansichten/477-xx_COMP/1SHCV (Single-Head Cat X mit VGA) @ 5\mod_1291647850286_6.doc @ 45892 @ @ 1 2014-04-15... -
Page 19: Model K477-1Shcv (Single-Head Cat X With Vga)
IR receiver for remote control CPU Unit CON Unit Front View Front View IR receiver for remote control IR receiver for remote control Pos: 19 /806-IHSE/Beschreibung/Geräteansichten/477-xx_COMP/1SHSV / -1SHXV (Glasfaser mit VGA) @ 5\mod_1291647910318_6.doc @ 45910 @ 3 @ 1 2014-04-15... -
Page 20: Model K477-1Shsv / -1Shxv (Fiber With Vga)
Service port (DVI-I) IR receiver for remote control CPU Unit CON Unit Front View Front View IR receiver for remote control IR receiver for remote control Pos: 20 /806-IHSE/Beschreibung/Geräteansichten/477-xx/2S4C (Dual-Head Cat X) @ 5\mod_1278934890730_6.doc @ 42958 @ @ 1 2014-04-15... -
Page 21: Model K477-2S4C (Dual-Head Cat X)
Connect to interconnect Connect to interconnect cable 2 cable 2 To CPU: USB-HID 2 Connect to USB-HID devices 2 To CPU: DVI-D 2 Connect to DVI monitor 2 Pos: 21 /806-IHSE/Beschreibung/Geräteansichten/477-xx/2S4S_2S4X (Dual-Head Glasfaser) @ 5\mod_1278935028198_6.doc @ 42976 @ 3 @ 1 2014-04-15... -
Page 22: Model K477-2S4S / -2S4X (Dual-Head Fiber)
Connect to interconnect Connect to interconnect cable 2 cable 2 To CPU: USB-HID 2 Connect to USB-HID devices 2 To CPU: DVI-D 2 Connect to DVI monitor 2 Pos: 22 /806-IHSE/Beschreibung/Diagnose LEDs/477-xx_COMP @ 5\mod_1291121862656_6.doc @ 44702 @ 23333 @ 1 2014-04-15... -
Page 23: Status Leds
Description Status LEDs The KVM Extender is fitted with a multi color LED on both sides for overall status indication and with two further LEDs on the back side for indication of the connection status. 1 1 1 2 Rear View Front View LED 1 and 2: Connection Status Pos. -
Page 24: Status Digital Audio (Option)
Draco KVM Extender 3.7.1 Status Digital Audio (Option) The KVM Extender with optional digital audio is fitted with a further multi- color LED on the rear side for indication of the connection status: CPU Unit CON Unit Rear View Rear View LED 1: Digital Audio Status LED color Description... -
Page 25: Status Usb-Hid Add-On (Option)
Description 3.7.2 Status USB-HID Add-On (Option) The KVM Extender with optional USB-HID is fitted with three further LEDs on the rear side for indication of the connection status: CPU Unit CON Unit Rear View Rear View Pos. LED Status Description 1, 2 Device LED No USB-HID device or not supported... -
Page 26: Status Usb 2.0 (Option)
Draco KVM Extender 3.7.3 Status USB 2.0 (Option) The KVM Extender with optional USB 2.0 is fitted with a multi color LED on both sides for overall status indication and with two further LEDs on the back side for indication of the connection status. CPU Unit CON Unit Rear View... - Page 27 Description LED 3: USB 2.0 Status LED color Description Device ready Green Only connection available, no USB 2.0 signal Green / Connection available, no USB 2.0 device light blue connected (only CON unit) flashing Connection and USB 2.0 signal available Light blue (operating status) 2014-04-15...
-
Page 28: Status Vga / Dvi-I (Option)
Video signal not supported; monitor not detected Green Video signal supported; monitor not detected Blue No video signal; monitor detected Violet Video signal not supported; monitor detected Light blue Video signal supported; monitor detected Pos: 23 /806-IHSE/Installation/UEB_Installation @ 5\mod_1278574971589_6.doc @ 41768 @ 1 @ 1 2014-04-15... -
Page 29: Installation
Installation Installation Pos: 24 /806-IHSE/Installation/Lieferumfang prüfen/477-xx_COMP @ 5\mod_1291123475078_6.doc @ 44730 @ 2 @ 1 Package Contents Your extender package contains the following items: KVM Extender pair (CPU Unit and CON Unit) 2x 5VDC international power supply unit ... - Page 30 Additional content for VGA option (replaces DVI-D cable): VGA cable (1.8 m, VGA male to DVI-I male) Infrared remote control If anything is missing, contact your dealer. Pos: 25 /806-IHSE/Installation/System anschließen/477-xx_COMP @ 5\mod_1291123779531_6.doc @ 44749 @ 233 @ 1 2014-04-15...
-
Page 31: System Setup
Installation System Setup First time users are recommended to setup the system with the CPU Unit and the CON Unit in the same room as a test setup. This will allow you to identify and solve any cabling problems, and experiment with your system more conveniently. -
Page 32: Setup Of Optional Modules
USB-HID devices 2). USB 2.0 Add-On Option: Connect the CPU with the CPU Unit (USB 2.0). Connect the USB 2.0 devices with the CON Unit (Connect to USB 2.0 devices). Pos: 26 /806-IHSE/Installation/Installationsbeispiele/UEB_Installationsbeispiele @ 5\mod_1278581564870_6.doc @ 42759 @ 2 @ 1 2014-04-15... -
Page 33: Example Applications
Installation Example Applications This section illustrates typical installations of KVM Extenders: Pos: 27 /806-IHSE/Installation/Installationsbeispiele/477-xx_COMP @ 5\mod_1291124264328_6.doc @ 44767 @ @ 1 KVM Extender (Single-Head) KVM Extender (Single-Head with Digital / Analog Audio) 2014-04-15... - Page 34 Second monitor (option, only with Dual-Head devices) USB 2.0 devices (option, only with 2x USB 2.0 devices) Audio sink (optional, only with devices with Analog Audio / Serial option or Digital Audio option) Pos: 28 /806-IHSE/Konfiguration/UEB_Konfiguration @ 5\mod_1278575517073_6.doc @ 41846 @ 1 @ 1 2014-04-15...
-
Page 35: Configuration
In exceptional cases there can appear detached "frame droppings" (loss of single pictures) or color effects. Pos: 30 /806-IHSE/Konfiguration/DDC-Einstellungen/477-xx @ 5\mod_1278937107542_6.doc @ 43093 @ 2 @ 1 DDC Settings By default, the device transmits the factory preset DDC information to the CPU. -
Page 36: Command Mode
Draco KVM Extender By deleting this file, the factory DDC Information is restored. Pos: 31 /806-IHSE/Konfiguration/Kommando-Modus/VAR_KVM_USB-HID @ 5\mod_1278577943980_6.doc @ 42024 @ 2 @ 1 Command Mode During normal use, the console keyboard functions in the usual manner. However, for all KVM Extenders with USB-HID support, you can set the keyboard into a Command Mode by using a specific 'Hot Key' sequence. - Page 37 In order to set a 'Hot Key' back to default settings, press the key combination <Right Shift> + <Del> within 5 s after switching on the CON unit or plugging in a keyboard. Pos: 32 /806-IHSE/Konfiguration/USB-HID-Ghosting/K477_USB-HID-Ghosting @ 9\mod_1362404683851_6.doc @ 71192 @ 2 @ 4 2014-04-15...
-
Page 38: Usb-Hid Ghosting
CPU Unit. Deleting the descriptions out of the CPU Unit. The input devices connected to the CON Unit will be now passed transparently to the source (computer, CPU). Pos: 33 /806-IHSE/Konfiguration/474_Konfigurationsdatei/474-xx @ 7\mod_1331801555639_6.doc @ 58172 @ 2 @ 1 2014-04-15... -
Page 39: Configuration File
USB connection to a computer. The configuration file can be edited with all common text editors. The individual settings of the parameters are described in the respective chapters. Pos: 34 /806-IHSE/Betrieb/UEB_Betrieb @ 5\mod_1278577614980_6.doc @ 41970 @ 1 @ 1 2014-04-15... -
Page 40: Operation
Draco KVM Extender Operation Pos: 35 /806-IHSE/Betrieb/Laden von DDC-Informationen/477-xx @ 5\mod_1278937455136_6.doc @ 43130 @ 2 @ 1 Download of DDC Information By default, data from the internal DDC list is reported to the source (computer, CPU). If these settings do not lead to a satisfying result, the DDC information of the console monitor can be downloaded and stored internally. -
Page 41: Specifications
Specifications Specifications Pos: 37 /806-IHSE/Technische Daten/Schnittstellen/UEB_Schnittstellen @ 5\mod_1278578201870_6.doc @ 42114 @ 2 @ 1 Interfaces Pos: 38 /806-IHSE/Technische Daten/Schnittstellen/DVI-D-Single-Link @ 5\mod_1278578254058_6.doc @ 42132 @ 3 @ 1 7.1.1 DVI-D Single Link The video interface supports the DVI-D protocol. All signals that comply to DVI-D Single Link norm can be transmitted. -
Page 42: Usb 2.0 (Transparent)
Connector wiring must comply with EIA/TIA-568-B (1000BASE-T), with RJ45 connectors at both ends. All four cable wire pairs are used. Pos: 43 /806-IHSE/Technische Daten/Schnittstellen/Glasfaser SFP Typ LC @ 5\mod_1278937700855_6.doc @ 43149 @ 3 @ 1 7.1.6 Fiber SFP Type LC (Interconnect) The communication of fiber devices is performed via Gigabit SFPs that have to be connected to suitable fibers fitted with connectors type LC (). -
Page 43: Serial Interface
The following signals are transmitted (hardware handshake): RTS (Request To Send) CTS (Clear To Send) DTR (Data Terminal Ready) DSR (Data Set Ready) Pos: 45 /806-IHSE/Technische Daten/Schnittstellen/Analoge Audio-Schnittstelle @ 5\mod_1291127716734_6.doc @ 44846 @ @ 1 2014-04-15... -
Page 44: Analog Audio Interface
2x 3.5 mm stereo jack plug (audio in & audio out) Connections CON Unit 2x 3.5 mm stereo jack plug (audio in & audio out) Pos: 46 /806-IHSE/Technische Daten/Schnittstellen/474-xx (Digital Audio-Schnittstellen) @ 6\mod_1304585776832_6.doc @ 51309 @ 3 @ 1 2014-04-15... -
Page 45: Digital Audio Interface
Specifications 7.1.3 Digital Audio Interface The digital audio option supports the unidirectional transmission of digital audio data. Up to three sources can be connected to the CPU Unit. The active source is transmitted. If several sources are active, the XLR signal takes priority, otherwise the first active signal. -
Page 46: Interconnect Cable
Optical (S/PDIF; TOSLINK) Pos: 47 /806-IHSE/Technische Daten/Verbindungskabel/UEB_Verbindungskabel @ 5\mod_1279191107845_6.doc @ 43870 @ 2 @ 1 Interconnect Cable Pos: 48 /806-IHSE/Technische Daten/Verbindungskabel/Verbindungskabel (Cat X) @ 5\mod_1278578406026_6.doc @ 42205 @ 3 @ 1 7.2.1 Cat X A point-to-point connection is required. Operation with several patch fields is possible. - Page 47 The use of flexible cables (patch cables) type AWG26/8 is possible, however the maximum possible extension distance is halved. Pos: 49 /806-IHSE/Technische Daten/Verbindungskabel/Verbindungskabel (Cat X)_Kabellänge 477-xx @ 5\mod_1278937761105_6.doc @ 43167 @ @ 1 Maximum Acceptable Cable Length Cat X Installation Cable...
-
Page 48: Fiber
Pos: 51 /806-IHSE/Technische Daten/Verbindungskabel/Verbindungskabel (LWL)_Steckverbinder 477-xx @ 5\mod_1278954447542_6.doc @ 43740 @ @ 1 Type of Connector Connector LC Connector Pos: 52 /806-IHSE/Technische Daten/Unterstützte Peripherie/UEB_Unterstützte Peripherie @ 5\mod_1278578478761_6.doc @ 42242 @ 2 @ 1 2014-04-15... -
Page 49: Supported Peripherals
Specifications Supported Peripherals Pos: 53 /806-IHSE/Technische Daten/Unterstützte Peripherie/USB-HID-Geräte @ 5\mod_1278578523558_6.doc @ 42260 @ @ 1 7.3.1 USB-HID Devices The KVM Extender will support most USB-HID devices, including the vast majority of keyboards and mice currently on the market. Many other kinds... -
Page 50: Connector Pinouts
Draco KVM Extender Connector Pinouts Pos: 56 /806-IHSE/Technische Daten/Pinbelegungen/Buchse DVI-D Single-Link @ 5\mod_1278578723073_6.doc @ 42333 @ @ 1 Connector DVI-D Single-Link 1......8 C1 C2 17......24 C3 C4 Pin Signal Pin Signal Pin Signal T.M.D.S data 2 – 9 T.M.D.S data 1 – 17 T.M.D.S data 0 –... - Page 51 V-sync Hot Plug T.M.D.S clock– recognition Red signal Blue signal Green signal H-sync Pos: 58 /806-IHSE/Technische Daten/Pinbelegungen/Buchse USB Typ B @ 5\mod_1278578750464_6.doc @ 42351 @ @ 1 Connector USB Type B Picture Signal Color VCC (+5VDC) Data – White Data +...
- Page 52 Picture Signal Color VCC (+5VDC) Data – White Data + Green Black Pos: 60 /806-IHSE/Technische Daten/Pinbelegungen/Buchse Mini-USB Typ B @ 5\mod_1278578794167_6.doc @ 42387 @ @ 1 Connector Mini USB Type B Picture Signal Color VCC (+5VDC) Data – White ..5...
- Page 53 Specifications Power Supply Picture Signal Inside VCC (+5VDC) Outside Pos: 64 /806-IHSE/Technische Daten/Pinbelegungen/D-Sub 9 (Seriell) @ 5\mod_1291128631437_6.doc @ 44882 @ @ 1 D-Sub 9 (Serial) RS232 Picture Signal Signal n.c. 1....5 6...9 n.c. Pos: 65 /806-IHSE/Technische Daten/Pinbelegungen/Stereo-Klinkenbuchse 3,5 mm @ 5\mod_1291128765156_6.doc @ 44901 @ @ 1 3.5 mm Stereo Jack Plug...
-
Page 54: Power Supply
Pos: 68 /806-IHSE/Technische Daten/Pinbelegungen/TOSLINK @ 5\mod_1291129073656_6.doc @ 44958 @ @ 1 TOSLINK Picture Diode Signal Data IN / OUT Pos: 69 /806-IHSE/Technische Daten/Stromversorgung/477-xx_COMP @ 5\mod_1291129232140_6.doc @ 44977 @ 2 @ 1 Power Supply Voltage 5VDC Power Requirement Single-Head devices: max. 800 mA (per Unit) ... -
Page 55: Size
1.8 kg (4.0 lb) Dual-Head Devices and Devices with Optional Modules CPU Unit / CON Unit 0.4 kg (0.9 lb) Shipping Box 2.3 kg (5.1 lb) Pos: 73 /806-IHSE/Hilfe im Problemfall/UEB_Hilfe im Problemfall @ 5\mod_1278579113839_6.doc @ 42536 @ 1 @ 1 2014-04-15... -
Page 56: Troubleshooting
CPU Unit quality of interconnect cables between the units. Download DDC information from console monitors (see Chapter 6.1, Page 40). Reboot CPU if necessary. Pos: 75 /806-IHSE/Hilfe im Problemfall/Störung am USB-HID-Anschluss/477-xx @ 5\mod_1278938993948_6.doc @ 43307 @ @ 1 2014-04-15... -
Page 57: Usb-Hid
USB device No USB-HID device Connect USB-HID device. without function USB-HID device is not Contact dealer if necessary. supported Pos: 76 /806-IHSE/Hilfe im Problemfall/Störung am seriellen Anschluss/477-xx_COMP @ 5\mod_1291129551234_6.doc @ 45035 @ @ 1 2014-04-15... -
Page 58: Serial Connection
Touch screen Hardware handshake Adjust serial interface to X-ON / not operational X-OFF software handshake. Pos: 77 /806-IHSE/Hilfe im Problemfall/Störung am Analog-Audio-Anschluss/477-xx_COMP @ 5\mod_1291129755687_6.doc @ 45057 @ @ 1 Analog Audio Diagnosis Possible Reason Measure CON Unit: No audio connection to ... -
Page 59: Digital Audio
No signal / Digital Silence at active Check LEDs at CPU Unit. LEDs 1 OK audio source Check audio format. Change audio input. Pos: 79 /806-IHSE/Hilfe im Problemfall/Störung am USB-HID-Modul-Anschluss/477-xx_COMP @ 5\mod_1291129758421_6.doc @ 45095 @ 2 @ 1 2014-04-15... -
Page 60: Usb 2.0 Add-On
LED 2 off and supported also the necessary drivers. USB 2.0 device New connection of the USB 2.0 without function device. Contact dealer if necessary. Pos: 80 /806-IHSE/Hilfe im Problemfall/Störung am USB-2.0-Anschluss/477-xx_COMP @ 6\mod_1299604653562_6.doc @ 49230 @ @ 1 2014-04-15... -
Page 61: Usb 2.0
/ light supported also the necessary drivers. blue and New connection of the USB 2.0 USB 2.0 device device. without function Contact dealer if necessary. Pos: 81 /806-IHSE/Technische Unterstützung/ATB_Technische Unterstützung @ 5\mod_1278579487089_6.doc @ 42650 @ 122 @ 1 2014-04-15... -
Page 62: Technical Support
Note your RMA number visibly on your shipment. Devices that are sent in without a RMA number cannot be accepted. The shipment will be sent back without being opened, postage unpaid. Pos: 82 /806-IHSE/Zertifikate/UEB_Zertifikate @ 5\mod_1278579534933_6.doc @ 42668 @ 1 @ 1 2014-04-15... -
Page 63: Certificates
Certificates Certificates Pos: 83 /806-IHSE/Zertifikate/ATB_Europäische Konformitätserklärung @ 5\mod_1278579640901_6.doc @ 42686 @ 2 @ 1 10.1 CE Declaration Of Conformity The products listed below in the form as delivered comply with the provisions of the following European Directives: 2004/108/EG Council Directive on the approximation of the laws of... -
Page 64: North American Regulatory Compliance
All power supplies are certified to the relevant major international safety standards. Pos: 84 /806-IHSE/Zertifikate/ATB_WEEE @ 5\mod_1278579673292_6.doc @ 42704 @ 2 @ 1 10.3 WEEE The manufacturer complies with the EU Directive 2012/19/EU on the prevention of waste electrical and electronic equipment (WEEE). -
Page 65: Glossary
Glossary Glossary The following terms are commonly used in this guide or in video and KVM technology: Term Explanation AES/EBU Digital audio standard that is officially known as AES3 and that is used for carrying digital audio signals between devices. Cat X Any Cat 5e (Cat 6, Cat 7) cable The Color Graphics Adapter (CGA) is an old analog... - Page 66 Draco KVM Extender Term Explanation Digital video standard, introduced by the Digital Display Working Group (http://www.ddwg.org). Single Link and Dual Link standard are distinguished. The signals have TMDS level. DVI-I A combined signal (digital and analog) that allows running a VGA monitor at a DVI-I port – in contrast to DVI-D (see DVI).
- Page 67 Glossary Term Explanation S-Video (Y/C) The S-Video (Y/C) is a video format transmitting luminance and chrominance signals separately. Thereby it has a higher quality standard than CVBS. TOSLINK Standardized fiber connection system for digital transmission of audio signals (F05 plug connection) Triple-Head A system with three video connections USB-HID...
