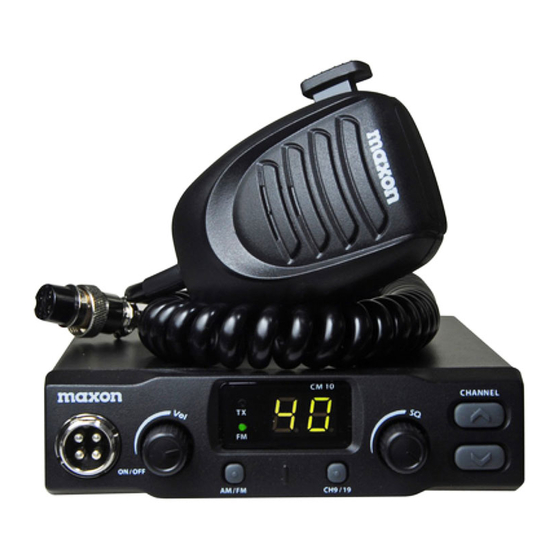

Maxon CM10 User Manual
Multi european cb radio
Hide thumbs
Also See for CM10:
- Service manual (4 pages) ,
- User manual (55 pages) ,
- User manual (69 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Maxon CM10
Summary of Contents for Maxon CM10
-

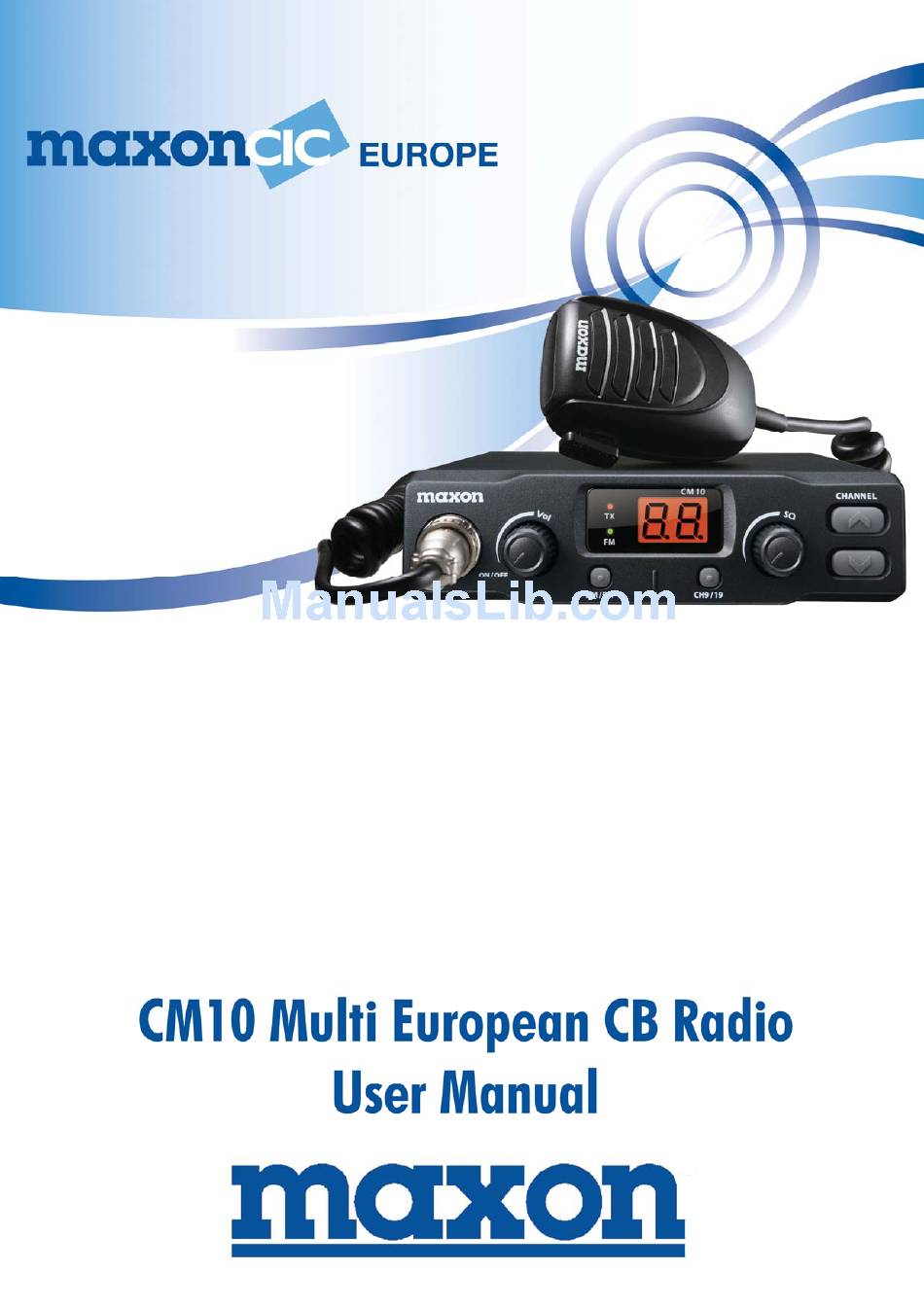

Page 2: Table Of Contents
User Manual CM10 Contents Specification………………………………………………………………………………………………………………………3 Control and Operation ……………..……………………………………………………………………………………4-5 Installation …………………………………………………………………………………………………………………………6 Installation of Main Unit ………………………………………………………………………………………………………6 Installation of Antenna ……………………………………………………………………………………………………….6 Operational Test …………………………………………………………………………………………………………………7 Frequency Bands Table ………………………………………………………………………………………………………7 Frequency Band Selection ……………………………………………………………………………………………………7 Reset ………………………………………………………………………………………………………………………………..8 Table of Restrictions …………………………………………………………………………………………………………..9 Updated Information on National Restrictions ……………………………………………………………………..10 Diagrams ………………………………………..………………………………………………………………………..11-13... -
Page 3: Specification
User Manual CM10 Specification GENERAL Channels…………………………………………………..……...……………………………..…. 40 Ch AM/FM 4W Frequency Range………………………………...………………………………………..….26.565 to 27.99125 MHz Frequency Control……………………………………………………..……………………………………………….……PLL Operating Temperature Range……………………..…………………………………………..…….….-10° / +55°C DC Input Voltage…………………………...…………………...…………………………………….…13.2 V DC ±15% Size………………………………………….………………………………………...…….180(L) X 35(H) X 140(D) mm Weight…………………………………………………………...……………………………………………………..……750 g RECEIVER Receiving System……………………………………………...…………...….Dual Conversion Super Heterodyne Intermediate Frequency…………………………………………………….1... -
Page 4: Control And Operation
User Manual CM10 Control & Operation Front Panel 1. AM/FM Selector This key allows the user to select the AM or FM operating mode in both RX and TX. The AM/FM operating mode selection is possible only if it is enabled on the programmed frequency band. - Page 5 User Manual CM10 9. OFF / VOLUME Control Use this knob to switch the radio ON and OFF, as well as to adjust the receiver volume to the desired level. To adjust the receiver volume (if no signals are received on the operating channel), open the SQUELCH and then adjust the receiver volume using the background noise as a reference.
-
Page 6: Installation
User Manual CM10 Installation Before installing the main unit in a vehicle, identify the most convenient location, so that the radio will be easy to reach and comfortable to operate, without disturbing or interfering with driving the vehicle. Use the supplied bracket and hardware to install the radio. The bracket screws must be well tightened to prevent loosening with the vehicle vibrations. -
Page 7: Operational Test
If this check is successful the transceiver will work correctly. Frequency Bands Table The CM10 transceiver includes an advanced multi-standard programmable circuit, which allows programming on different frequency bands, specifications and operating modes, in conformity with the regulations in the country where the product is used. 8 programmable frequency bands... -
Page 8: Reset
User Manual CM10 Reset To restore the original factory settings (CE frequency brand), follows the below process: 1) Turn the radio OFF. 2) Press and hold the DN key, then turn the radio ON using the OFF/VOLUME knob. 3) The CE frequency band code (code 06) will blink on the display for 3 seconds. -
Page 9: Table Of Restrictions
User Manual CM10 Table of Restrictions on the Use of CB Transceivers The following information is only to be used as an indication. They are believed to be correct at the time of printing this manual. It is however the user’s responsibility to check that, in the country where radio is used, providing the regulations for the use of CB transceivers have not been modified. -
Page 10: Updated Information On National Restrictions
User Manual CM10 Updated information on National Restrictions BELGIUM, UK, SPAIN, SWITZERLAND In order to use this transceiver in Belgium, UK, Spain and Switzerland, users must have an individual licence. Users coming from abroad may freely use the radio in FM mode, while in order to use it in AM mode they must hold a licence issued in their country of residence. -
Page 11: Diagrams
User Manual CM10 Diagrams Page 11 of 14... - Page 12 User Manual CM10 Page 12 of 14...
- Page 13 User Manual CM10 Page 13 of 14...
-
Page 14: Decleration Of Conformity
User Manual CM10 Page 14 of 14...
