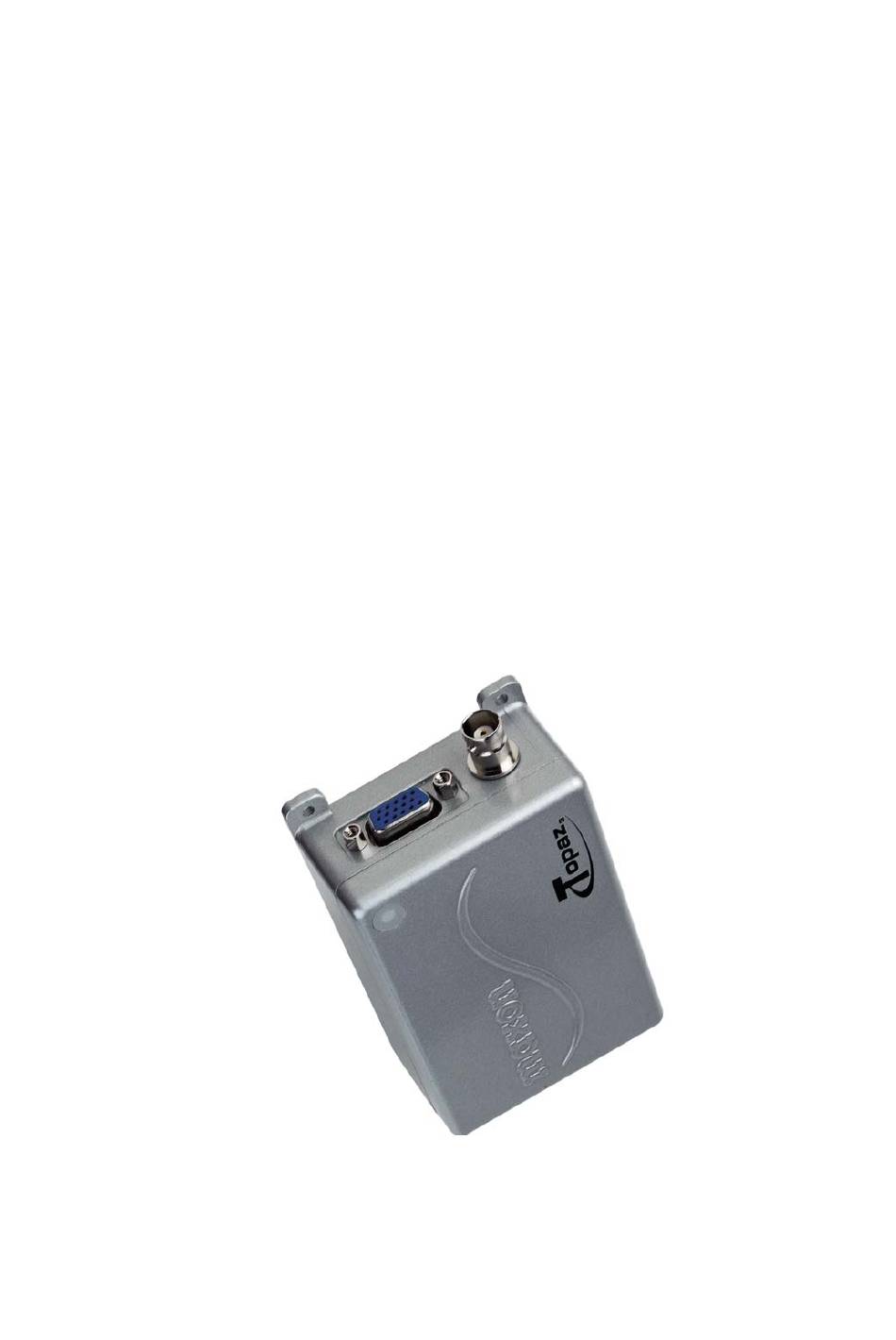

SD-160 Series Data Radio
(include SD-170 Series)
Technical Manual

Advertisement

Table of Contents
loading

Related Manuals for Maxon SD-160 Series

Summary of Contents for Maxon SD-160 Series

  • Page 1 SD-160 Series Data Radio (include SD-170 Series) Technical Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. INTRODUCTION..............4 2. TECHNICAL SPECIFICATIONS ........5 3. FEATURES ................9 4. THEORY OF OPERATION ..........23 4.1. INTRODUCTION ................23 4.2. DIGITAL CIRCUITS ..............23 4.3. RF CIRCUITS................. 27 4.3.1. PLL SYNTHESIZER ................27 4.3.2. TRANSMITTER ..................28 4.3.3.
  • Page 3 8. INTERFACING ..............47 8.1. External connections ..............47 8.2. DB-15 PIN descriptions with input/output level ......47 8.3. Internal components ............... 49 8.4. Option board pin-out chart ............50 8.4.1. ACC-513 (GMSK Modem Option board)..........50 8.4.2. ACC-514 (FFSK Modem Option board) ..........50 8.4.3.

  • Page 4: Introduction

    UHF and VHF models are Phase Lock Loop Synthesizer (PLL) / microprocessor controlled and offer two watts (SD-160 Series) or one to five watts (SD-170 Series) of power with 16-channel capability. Multiple functions including 1200 to 9600 baud rates, AC and/or DC audio coupling, GMSK, FFSK and FSK modulation are standard in these fully programmable wide bandwidth RF wireless modem units.

  • Page 5: Technical Specifications

    2. TECHNICAL SPECIFICATIONS GENERAL Equipment Type : Data radio (Wireless Modem) Data radio (Wireless Modem) Model Series : SD-161 SD-171 SD-164 SD-174 Performance Specifications : TIA/EIA-603 ETS 300-113 TIA/EIA-603 ETS 300-113 Frequency Range : 148-174MHz 148-174MHz 450-490MHz 450-490MHz RF Output : 2W Only 1-5W 2W Only...
  • Page 6 TRANSMITTER Model Series : SD-161 SD-171 SD-164 SD-174 Carrier Power : (Nom. Max. Min.) Hi Power 2W < 3W > 1.5W 5W < 6W > 4.5W 2W < 3W > 1.5W 5W < 6W > 4.5W Low Power 1W<1.5W>0.8W 1W<1.5W>0.8W Sustained Transmission : Time : 5 10 30Sec Power : >90% >85% >80%...
  • Page 7 RECEIVER Model Series : SD-161 SD-171 SD-164 SD-174 Sensitivity (@ 12dB SINAD) : 25 KHz Channel Spacing < 0.28uV < 0.28uV < 0.28uV < 0.28uV 12.5 KHz Channel Spacing < 0.30uV < 0.30uV < 0.30uV < 0.30uV Sensitivity ( 1/100 Error Rate) With ACC-513 <...
  • Page 8 REFERENCE CRYSTAL Model Series : SD-161 SD-171 SD-164 SD-174 Frequency : 12.8MHz Holder Type : HC-18 Temperature Characteristic : ±5.0 ppm from -30° C to +60° C < 2 ppm/ year in 1st year Aging Rate : < 1 ppm/ year thereafter ENVIRONMENTAL (performance without degradation unless stated) Model Series :...

  • Page 9: Features

    3. FEATURES 16 Channels The SD-160 Series(include SD-170 Series, hereinafter called “SD-160”) radio can store up to 16 channels within the same band. These channels can be selected by inner DIP-S/W or serial command inputted from external control system. Channel Spacing The SD-160 is capable of programmable channel spacing, in both UHF and VHF bands.
  • Page 10 CTCSS / DCS Scanning To help to block out unwanted calls to your radio, the SD-160 series can be programmed by your dealer to scan for tones. Busy Channel Lockout This feature, when enabled, disables the transmitter when the user would attempt to transmit during the receiving channel is busy.
  • Page 11 Squelch Options Compared to existing Maxon data radios, programmable sub-audio squelch system (CTCSS & DCS) and two-tone squelch system are newly added. Each channel will have these squelch option sets during dealer programming. More detail descriptions for all available squelch systems of SD-160 are the following.
  • Page 12 of DB-15 connector, respectively. In this case, the external signals are referenced to ground and may be a.c. or d.c. coupled depending on the user requirement. Especially, if the type of external modem is AFSK or FFSK, Sub-audio Squelch(SQ) System can be applied by dealer programming. For reference, its related parameter is “Tx Tone Generation for Data Input”...
  • Page 13 Figure 3.3. External modulated signal flow diagram b. FFSK & GMSK Maxon provides two optional modem boards, ACC-513, GMSK and ACC-514, FFSK for SD-160 to improve the efficiency for data transmission and offer maximum flexibility for user application. Selection of the required modulation option is made installing wanted modem to radio and programming several modem parameters through PC-programmer, ACC-916.
  • Page 14 RF Board RSSI IF IC TA31136FN Pre-Selector Mod Out Data BPF Analog S/W MC14053B Sub-Audio LPF Adj. Level 4th Order Analog S/W MC14053B Sub-Audio LPF Sub-Audio LPF Tone En Master MCU Busy Rx_En Tone Detector RSSI Sub-Audio Tx_En Comparator Encoder Master MCU Rx_En FFSK Modem...
  • Page 15 c. CTCSS signal information Each channel supports the 38 TIA/EIA standard tone frequencies and 11 non-standard tones. All tones will be set up during dealer programming. Freq. Freq. Freq. Freq. Freq. (Hz) (Hz) (Hz) (Hz) (Hz) 67.0 97.4 136.5 192.8 171.3 71.9 100.0...
  • Page 16 PTT signal is inputted. Serial command To give the simplest protocol for control of radio, Maxon has prepared for some serial commands which have an ease to encode and decode format. SD-160 can be used without serial commands, but user can use its various functions through application of those, for instance, setting-up the basic radio operation such as channel change, switch of RX/TX and channel scan, moreover, used for control of GPS and modem option board.
  • Page 17 Data Protocol a. Protocol for input serial command Protocol of data transmission from external equipment or device (: PC) to radio : External equipment or device Radio Input serial command Response Receive response Figure 3.6. Protocol for input serial command b.
  • Page 18 Channel Change 0x64 0x?? :Current channel ( 0x64 + Channel ) 0x61 R(0x72) : Rx mode ( 0x61+0x72 ) RTX Mode Selection T(0x74) : TX mode ( 0x61+ 0x74 ) 0x62 F(0x46) : Scan Stop ( 0x62+ 0x46 ) From PC S(0x73) : Scan Start ( 0x62+ 0x73 ) To Radio...
  • Page 19 If not, radio would send Nack data. Status indicators and audible alert tones SD-160 series data radio has a sophisticated microprocessor control which provides a range of LED displays. LED displays operation mode, current status of radio, warning, and etc. Moreover,...
  • Page 20 STATUS DESCRIPTION LED COLOR AUDIBLE TONE POWER ON Busy Channel Yellow NORMAL Correct Call Green Transmit Yellow Transmit Not Allowed Normal Scan Mode Green LED Flash SCANNING Scan Delete one time Red LED Scan All Delete Two times Red LED Busy Channel lockout two times Green LED Single Beep Tone...
  • Page 21 Moreover, if inputted data is filtered by audio filter circuit to avoid this problem, some of that will be broken. Therefore, to get over these problems and provide maximum flexibility, Maxon prepares FFSK(Fast Frequency Shift Keying) internal option-board.
  • Page 22 Channel Space DTE Baud Rate Modem Baud Rate Narrow (12.5KHz) 4800 4800 4800 4800 Standard (25KHz) 9600 9600 Table 3.7. Available Baud rate for GMSK modem GPS option board As one of methods to satisfy various requests for user application, SD-160 basically supports GPS data handling.

  • Page 23: Theory Of Operation

    4. THEORY OF OPERATION 4.1. INTRODUCTION The VHF and UHF radios comprise of two PCBs (RF and digital PCB). These boards are connected by an 18 pin female and male connector. The digital board which controls the radio and data receiving and sending is interfaced with external data equipment through the 15 pin d- sub female (DB-15) connector.
  • Page 24 adjusted (amplified) by IC416-B. The amplitude-adjusted signal goes to pin 2 of the DB-15 connector (CON401). Audio signals are inputted to the 300Hz High pass filter (IC408) to eliminate sub-audible voice products through IC409. The output of the HPF is switched by IC406-A and de-emphasized by resister R471 and C452.
  • Page 25 unmatched, the busy L.E.D. (Yellow) would be shown. CTCSS/DCS ENCODE CIRCUITS During TX encode, the tone squelch digital signal is produced as a 3-bit parallel word at Pins 33, 34, and 35 of the micro controller (IC401). The 3-bit digital signal is converted to an analog signal by resistors R481, 482 and 483.
  • Page 26 CHANNEL SELECTOR One of 16 channels may be selected using the Dip Switch (SW401) and serial commands. The hardware selector, SW401 encodes the channel number, selected into 4-bit binary code. The binary code plus one equals the channel number. The binary code is decoded by the CPU, which enables the appropriate RX or TX frequency and associated data to be selected from the EEPROM.

  • Page 27: Rf Circuits

    4.3. RF CIRCUITS 4.3.1. PLL SYNTHESIZER 12.8 MHz TCXO The TCXO contains the 3-stage thermistor network compensation and crystal oscillator and modulation ports. Its compensation is ±5 PPM or less from -30c to +60c. PLL IC DUAL MODULE PRESCALER Input frequency of 12.8 MHz to pin 1 of IC2 MB15A02 (or MB15E03SL) is divided into 6.25 kHz or 5 kHz by the reference counter and then supplied to the comparator.

  • Page 28: Transmitter

    DC TO DC CONVERTER The DC to DC converter converts 5v to 14-16v to supply the necessary voltage for wide range frequency in the VCO. The radio adopts a two VCO system for RX and TX in order to maximize each performance. The TX and RX VCO generates RF carrier and local frequency and each VCO is switched by a TX/RX power source.

  • Page 29: Receiver

    amplifies to 0.5W and Q503 amplifies to 3W(SD-161, SD-164) or 6W(SD-171, SD-174) and then matched to 50 Ohms using the L.C. network or strip line, thereby reducing the harmonics by -30 dB. LOW PASS FILTER L7, L8, L9, C36, C37, C38 and C39 are the 7th order Chebyshev low pass filter. Unwanted harmonics are reduced by -70 dBc.
  • Page 30 to the base of Q601 serving as an RF amplifier. Diode D601 serves as protection from static RF overload from nearby transmitters. The output of Q601 is then coupled to a second band pass filter consisting of C611 through C623 and L606 through L609 at UHF and C607 through C601, L603 through L601 at VHF.

  • Page 31: Gmsk Modem Circuits)

    4.4. ACC-513 (GMSK MODEM CIRCUITS) MAXON GMSK option modem boards uses a CMX589A IC to generate and decode GMSK signals. The modem fully supports auto mode, dump mode (RTS mode) and extended dump mode operation. This section describes only the operation of circuit. A special characteristic of GMSK modems is that they can use a high data throughput in limited channel space.

  • Page 32: Ffsk Modem Circuits)

    4.5. ACC-514 (FFSK MODEM CIRCUITS) MAXON FFSK option modem boards uses a CMX469 IC to generate and decode FFSK signals. The modem fully supports auto mode, dump mode (RTS mode) and extended dump mode operation. This section describes only the operation of the circuit. A special characteristic of FFSK modems is that they can apply the sub-audio (tone) squelch system (CTCSS, DCS) to data communication.

  • Page 33: Gps Interface Circuits)

    4.6. ACC-515 (GPS INTERFACE CIRCUITS) The radio series outputs an industry standard NMEA GPS sentence on the DB-15 connector when the GPS option board is installed. The GPS module releases NMEA-0183 format data every 1sec. To prevent unnecessary data from the GPS engine, the GPS output is controlled by Pin 6 of J1 (GPS_OUT), and besides, power save mode can be executed by Pin 4 of J1 (PSAVE).

  • Page 34: Maintenance And Repair

    5. MAINTENANCE AND REPAIR GENERAL Any repair or adjustment should only be made by or under the supervision of a qualified radio service technician. When removing or fitting, use the Exploded View and Parts List in conjunction with the following procedures: Important: Before disassembling and reassembling the radio, wear a conduction wrist strap to prevent any components on its main board from being damaged by electrostatic discharge.
  • Page 35 3. Separate upper cover from bottom cover by removing RF cable of ANT. connector. Fig 5.3. Separating upper and bottom cover REMOVING & REPLACING THE RF BOARD 1. Unscrew the four upholding screws from the RF board. 2. Remove the shield plate. Fig 5.4.
  • Page 36 3. Unscrew the two mounting screws located on shield can for PA module. 4. Replace the RF board assembly. Fig 5.5. Replacing RF board assembly REMOVING & REPLACING THE DIGITAL BOARD 1. Unfasten the two hexagonal screws from DB-15 connector. 2.
  • Page 37 4. Pull the digital board out of bottom cover. 5. Replace the digital board assembly. Fig 5.7. Replacing digital board assembly...

  • Page 38: Component Replacement

    6. COMPONENT REPLACEMENT Surface Mount Components Surface mount components should always be replaced using a temperature controlled soldering system. The soldering tools may be either a temperature controlled soldering iron or a temperature controlled hot-air soldering station. A hot-air system is recommended for the removal of components on these boards.
  • Page 39 Surface Mount Component Replacement 1. “Tin” one terminal end of the new component and the corresponding pad of the PCB. Use as little solder as possible. 2. Place the component on the PCB pads, observing proper polarity for capacitors, diodes, transistors, etc.

  • Page 40: Alignment Procedure

    7. ALIGNMENT PROCEDURE The UHF/VHF Transceivers have broadband tuning range, UHF (450-490 MHz) and VHF (148- 174 MHz) should require no special alignment, unless repairs are performed on the transceiver portion. Should repairs be necessary, use the "Test Equipment Diagram" and the “Alignment Points Diagram", in conjunction with the following procedures: Extender Board (ACC-516) is required in order to separate the Digital and RF PCB’s to allow access to the alignment points.

  • Page 41: Receiver

    7.1. RECEIVER RX VCO RX VCO is pre-tuned at the factory and adjustment should not be required To identify existence of defect of RX VCO, check the VCO Control voltage. 1. Set the unit to the highest receive frequency, 490MHz(UHF2), 174MHz(VHF) and verify the VCO control voltage is under 10.0 Volts.

  • Page 42: Transmitter

    7.2. TRANSMITTER Connect the unit to a Service Monitor with the power meter set to the 10 W scale (or autorange) TCXO Set the channel selector to the mid-range frequency 470 MHz, adjust TCXO1 for a reading of 470MHz ±200Hz (155 MHz VHF models). TX VCO TX VCO is pre-tuned at the factory and no more adjustment is required To identify existence of defect of TX VCO, check the VCO Control voltage.

  • Page 43: Squelch Adjustment

    That’s the reason why radio outputs higher power than assigned after assembly. To prevent over-power output, follow below procedure In case alignment for SD-160 series: 1. Adjust RV4 and set the power at the point of 1.6W. 2. Assemble the radio and then check again RF transmission power is near 2.0W.
  • Page 44 11. Adjust the RF signal to the desired level for squelch sensitivity as you monitor SINAD. This is usually 8 to 12 dB SINAD. 12. On the RF board, adjust RV6 until the squelch is just un-muted (open). 13. Switch off the RF generator (squelch should be closed). 14.

  • Page 45: Test Equipment Setup

    ON). ※ NOTE: The difference of RF signal strength between the un-mute and mute levels must be greater than or at least equal to 0.15mV (i.e. at least -123.5dBm) for the squelch setting to work properly. If they are too close, RSSI through the A/D conversion can not differentiate between the mute and un-mute level properly.
  • Page 46 DB9-Modular cable 15 - 15 Connector S.S.G Oscilloscope ACC-2160 (Test Fixture) Power Supply Audio Output Data Output PTT Input Monitor Distortion Meter sel. Data /Audio In Power SINAD Meter Figure 7.3. Test equipment setup for Receiver Standard test conditions are following 0 Standard test voltage : 12Vdc 1 Temperature for normal test : 25℃±10℃...

  • Page 47: Interfacing

    8. INTERFACING 8.1. External connections Connection is made to the SD-160 via an external 50 ohm BNC socket (RF signal) and a high density 15-way “D”-type socket (DB-15 connector; control and data signals) with 4-40 UNC threaded jack posts for more permanent connection. Besides, SCN-12 type circular connector is added to separate power line from data and analog signals of DB-15 connector.
  • Page 48 Serial data IN Serial command or data input for radio TTL level (RXD) control or program. It uses asynchronous data format. Speaker filtered Audio output from the audio amplifier. Audio It’s filtered by tone-filter, de-emphasis circuit. 1KHz audio at 60% peak system deviation produces Nominal...

  • Page 49: Internal Components

    8.3. Internal components CON407 CON407 RV401 (Default) Available signal level for PTT & Busy RV402 TTL level RV403 SW401 Digital Board (RTS mode only) Available signal level for PTT & Busy RS-232 level Figure 8.2. Signal level selector for PTT(RTS) & Busy CHANNEL NO.

  • Page 50: Option Board Pin-Out Chart

    8.4. Option board pin-out chart 8.4.1. ACC-513 (GMSK Modem Option board) Connector Input/ Function Description Output 6V to 12V Power Input Ground Signal from the digital board to enable transmitter circuit of modem board. TXD_EN It ensures that the radio has stabilized in transmission before the data is processed for modulation.

  • Page 51: Gps Option Board)

    TX_END To finish transmission, it indicates memory buffer of Master MCU of digital board is empty. MUTE Logic level input from digital board to indicate whether a (Busy) carrier is present or not MODEM_EN Modem Enable input POWER_SAVE Power save input for modem board. CMD_EN It indicates that command for Modem programming is effective.

  • Page 52: Wiring Diagram

    8.5. Wiring Diagram CON401 CON404 CON403 PIN# DESCRIPTION PIN# DESCRIPTION PIN# DESCRIPTION DATA MOD IN SERIAL_IN DATA OUT(AF) SERIAL_OUT PTT IN BUSY Carrier_Detect TXD_EN SERIAL OUT (PROG.) PTT_IN TX_END BUSY PROGRAM MUTE (BUSY) MIC IN(AF) MODEM_EN SERIAL IN (PROG.) POWER_SAVE SPK OUT CMD_EN SERIAL DATA IN (OPT)

  • Page 53: Trouble Shooting Guide

    9. TROUBLE SHOOTING GUIDE This chapter contains 6 troubleshooting tables for the following SD-160 components: Receiver Transmitter Synthesizer RX VCO (Voltage Controlled Oscillator) TX VCO (Voltage Controlled Oscillator) Control circuit...
  • Page 54 START VERY LOW NO 12DB SINAD NOISE AT NOISE AT CHECK IFIC PIN 9 OF SPKR WHEN RADIO IS UNSQ'D? IFIC IC6? CHECK AFIC INJECT A IC412 45.1MHz SIGNAL AT C71 IS 12DB IS PIN 1 IS 2ND LO SINAD NEAR OF IFIC AT CHECK IFIC ON FREQ?
  • Page 55 NO POWER OUTPUT AT ANTENNA ( < 0.1A ) HIGH B+ NO OR LOW B+ CURRENT CURRENT CHECK RF OUTPUT CHECK B+ ON CURRENT POWER AT C34 FINAL STAGES DRAW? OUTPUT B+ IS WITHIN POWER +/- 0.5V OF LEVEL DC-DC OUT? GOOD? DC-DC OUTPUT 1) CHECK FOR INCORRECT...
  • Page 56 START VISUAL CHECK OF CORRECT THE BOARD PROBLEM +5V AT IC2 CHECK 5V PINS 3 & 4? REGULATOR IF PIN1(MOD) AND IS 12.8MHZ IS 12.8MHZ PIN4(B+) OF TCXO1 SIGNAL AT SIGNAL AT ARE 1.9VDC AND 5.0VDC, RESPECTIVELY TCXO1 PIN1? IC2 PIN1? THEN REPLACE TCXO CHECK R14 &...
  • Page 57 LOW OR NO POWER AT PIN4 OF T2 VISUAL CHECK OF CORRECT THE BOARD PROBLEM CHECK VOLTAGE 4.2VDC AT REGULATOR EMITTER OF CIRCUITRY FOR Q20? RX VCO ARE Q301 & CHECK R306, Q302 BIASED R307, R308, R309 CORRECTLY? & L304 CHECK RESONANT TANK IS THERE RF...
  • Page 58 RF POWER IS OK BUT LOW OR NO POWER NO OR INCORRECT AT INPUT TO P.A. MODULATION VISUAL IF NO MOD., CHECK REF. CORRECT CHECK OF 1.9VDC AT IS 1.9VDC AT VOLTAGE PROBLEM THE BOARD R201 FOR NO R201? DRIVER (IC4A) MOD.
  • Page 59 START APPLY POWER TO RADIO CHECK CONTACT OF WAS POWER_ON IS POWER POWER CONNECTOR AND INDICATION LIGHT SUPPLIED TO DC- RUNNERS BETWEEN EMITTED? DC CONVERTER? POWER CONNECTOR & DC- DC CONVERTER GREEN LED REASSEMBLE RF & CHECK EEPROM DATA CONTACT OF FLASH DIGITAL B'D AND FOR MODEM OPTION &...

  • Page 60: Voltage Chart

    10. VOLTAGE CHART TRANSISTORS OF CONTROL BOARD Receive state Transmit state REF# Description Q401 KRA104S Q402 KRA104S Q403 KRC104S Q406 KRC104S Q407 KTA1504SY Q408 KRC104S Q410 KRC104S Q411 KRC104S Q413 KRA104S Q417 KTA1504SY Q418 KRC104S Q419 KRC110S Q424 KRA104S Q425 KRC104S TRANSISTORS OF RF BOARD Receive state...
  • Page 61 ICS OF RF BOARD RECEIVE MODE PIN # TK71750SCL MB15A02PFV1 NJM12904V NJM12904V NJM12904V TA31136FN 2.0 (OSC1) 4.3(OSC1) 2.0 (OSC2) 3.7(OSC2) ANALOG ANALOG ANALOG 2.6 (RF) 1.0(AF) ANALOG 1.0(IF) ICS OF RF BOARD TRANSMIT MODE IC6 (OFF) PIN # TK71750SCL MB15A02PFV1 NJM12904V NJM12904V NJM12904V...
  • Page 62 ICS OF DIGITAL BOARD RECEIVE MODE IC402 IC403 IC404 IC405 IC406 IC407 IC408 IC409 (off) CSI24WC04 NJM12903V KIA324F KIA324F MC14066B MC14066B KIA324F MC14053B (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) 0.0(S/W2)
  • Page 63 ICS OF DIGITAL BOARD TRANSMIT MODE IC402 IC403 IC404 IC405 IC406 IC407 IC408 IC409 CSI24WC04 NJM12903V KIA324F KIA324F MC14066B MC14066B KIA324F MC14053B (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) (Analog) 5.0(S/W2) 0.0(S/W2)
  • Page 64 MCU (IC401) RECEIVE MODE PIN # Voltage PIN # Voltage PIN # Voltage PIN # Voltage (XOUT) (XIN) (Analog) RSSI (Analog) 4.9Vp-p 4.9Vp-p MCU (IC401) TRANSMIT MODE PIN # Voltage PIN # Voltage PIN # Voltage PIN # Voltage (XOUT) (XIN) (Analog) (Analog)

  • Page 65: Electrical Parts List

    11. ELECTRICAL PARTS LIST 11.1. PARTS LIST FOR SD-161 PART NO. NAME & DESCRIPTION PART NO. NAME & DESCRIPTION 180-301-7Z METAL POLY CAP 0.33UF 130-443-7 CHIP CERAMIC 0.47UF GRM40 Y5V474Z 16V PT 180-209-8 METAL POLY CAP 0.022UF 223K 63V BOX 134-780-1Y CHIP CERAMIC 470PF...
  • Page 66 PART NO. NAME & DESCRIPTION PART NO. NAME & DESCRIPTION 130-B19-8Y CHIP CERAMIC 0.1UF GRM36 Y5V104Z 16V C107 130-454-7 CHIP CERAMIC 0.047UF GRM36 X7R473K 10V C425 130-B12-1Y CHIP CERAMIC 0.001UF GRM36 X7R102K 50V C108 130-365-0 CHIP CERAMIC 0.033UF GRM36 X7R333K 10V C426 130-B12-1Y CHIP CERAMIC...
  • Page 67 PART NO. NAME & DESCRIPTION PART NO. NAME & DESCRIPTION 144-722-2 CHIP TANTALUM 4.7UF 293D475X0010A2T10V C494 243-052-6 DIODE SI CHIP KDS193 130-B16-5Y CHIP CERAMIC 0.01UF GRM36 X7R103K 16V C500 243-087-8 DIODE CHIP UPP9401(T&R)50V 2.5W 141-036-1 CHIP TANTALUM 293D105X0016A2T16V C504 243-087-8 DIODE CHIP UPP9401(T&R)50V 2.5W 141-059-2...
  • Page 68 PART NO. NAME & DESCRIPTION PART NO. NAME & DESCRIPTION 312-136-6 COIL INDUCTOR CHIP 2.2UH SWI0805FT2R2 L204 202-113-1 TRANSISTOR KTC3875S(BL) 312-168-5 COIL INDUCTOR CHIP 180NH SWI0805CTR18 L205 202-095-8Z TRANSISTOR KRC104SND 312-133-3 COIL INDUCTOR CHIP 1.2UH SWI0805FT1R2 L301 218-057-7Z TRANSISTOR KRA104S 311-801-8 COIL CHIP 56NH...
  • Page 69 PART NO. NAME & DESCRIPTION PART NO. NAME & DESCRIPTION 05D-221-8Z CHIP RESISTOR 1/16W 5% T 1005 05D-472-8Z CHIP RESISTOR 4.7K 1/16W 5% T 1005 05D-301-7Z CHIP RESISTOR 1/16W 5% T 1005 05D-562-6Z CHIP RESISTOR 5.6K 1/16W 5% T 1005 05D-180-4Z CHIP RESISTOR 1/16W 5% T 1005...
  • Page 70 PART NO. NAME & DESCRIPTION PART NO. NAME & DESCRIPTION 05D-124-4Z CHIP RESISTOR 120K 1/16W 5% T 1005 R432 05D-473-9Z CHIP RESISTOR 47K 1/16W 5% T 1005 R506 060-364-7 CHIP RESISTOR 360K 1/10W 5% T 2012 R433 05D-473-9Z CHIP RESISTOR 47K 1/16W 5% T 1005 R507 060-433-6Z...
  • Page 71 PART NO. NAME & DESCRIPTION PART NO. NAME & DESCRIPTION 060-202-4Z CHIP RESISTOR 1/10W 5% T 2012 R710 060-392-2Z CHIP RESISTOR 3.9K 1/10W 5% T 2012 R711 05D-103-5Z CHIP RESISTOR 10K 1/16W 5% T 1005 R801 05D-363-3Z CHIP RESISTOR 1/16W 5% T 1005 R802 06B-018-9 CHIP RESISTOR...

  • Page 72: Parts List For Sd-164

    11.2. PARTS LIST FOR SD-164 PART NO. NAME & DESCRIPTION PART NO. NAME & DESCRIPTION 180-301-7Z METAL POLY CAP 0.33UF 134-780-1Y CHIP CERAMIC 470PF GRM36 X7R471K 50V 180-209-8 METAL POLY CAP 0.022UF 223K 63V BOX 134-780-1Y CHIP CERAMIC 470PF GRM36 X7R471K 50V 180-126-6Z METAL POLY CAP 0.01UF...
  • Page 73 PART NO. NAME & DESCRIPTION PART NO. NAME & DESCRIPTION 131-583-5Y CHIP CERAMIC 1.5PF GRM36 COG1R5C 50V C205 130-294-9Y CHIP CERAMIC 0.022UF GRM36 X7R223K 16V C436 130-525-8Y CHIP CERAMIC 0.5PF GRM36 COG0R5C 50V C206 130-629-9Y CHIP CERAMIC 0.0068UF GRM36 X7R682K 25V C437 131-853-9Y CHIP CERAMIC...
  • Page 74 PART NO. NAME & DESCRIPTION PART NO. NAME & DESCRIPTION 131-128-8Y CHIP CERAMIC 11PF GRM36 COG110J 50V C603 243-052-6 DIODE SI CHIP KDS193 137-017-1Y CHIP CERAMIC GRM36 COG070D 50V C604 243-087-8 DIODE CHIP UPP9401(T&R)50V 2.5W 133-366-6Y CHIP CERAMIC 33PF GRM36 COG330J 50V C605 243-087-8 DIODE CHIP...
  • Page 75 PART NO. NAME & DESCRIPTION PART NO. NAME & DESCRIPTION 312-131-1 COIL INDUCTOR CHIP 0.47UH SWI0805FTR47 L202 218-057-7Z TRANSISTOR KRA104S 312-190-4Z COIL SPRING 1.0X0.45X4T:R(SMD) L203 200-277-6 TRANSISTOR 2SC5086 Q201 310-859-6 COIL INDUCTOR CHIP 0.82UH SWI0805FTR82 L204 200-277-6 TRANSISTOR 2SC5086 Q202 310-659-2 COIL WIREWOUND CHIP 22NH WCI1608T22N...
  • Page 76 PART NO. NAME & DESCRIPTION PART NO. NAME & DESCRIPTION 05D-154-1Z CHIP RESISTOR 150K 1/16W 5% T 1005 05D-103-5Z CHIP RESISTOR 10K 1/16W 5% T 1005 R101 05D-101-3Z CHIP RESISTOR 1/16W 5% T 1005 05D-222-9Z CHIP RESISTOR 2.2K 1/16W 5% T 1005 R104 05D-121-1Z CHIP RESISTOR...
  • Page 77 PART NO. NAME & DESCRIPTION PART NO. NAME & DESCRIPTION 05D-363-3Z CHIP RESISTOR 1/16W 5% T 1005 R438 05D-224-1Z CHIP RESISTOR 220K 1/16W 5% T 1005 R513 05D-303-9Z CHIP RESISTOR 1/16W 5% T 1005 R439 05D-472-8Z CHIP RESISTOR 4.7K 1/16W 5% T 1005 R515 05D-303-9Z CHIP RESISTOR...
  • Page 78 PART NO. NAME & DESCRIPTION PART NO. NAME & DESCRIPTION 05D-222-9Z CHIP RESISTOR 2.2K 1/16W 5% T 1005 R905 05D-472-8Z CHIP RESISTOR 4.7K 1/16W 5% T 1005 R906 05D-222-9Z CHIP RESISTOR 2.2K 1/16W 5% T 1005 R907 05D-470-6Z CHIP RESISTOR 1/16W 5% T 1005 R908 060-000-8Z...

  • Page 79: Component Pinout

    12. COMPONENT PINOUT MANUFACTURER’S BASE DIAGRAM REFERENCE NO. SYMBOL PART NUMBER Q201.202 2SC5086 Q301.302 AT-41532 Q601 Q3.4 KTC4075 Q901.902.903.904 Q5.6 KTA2014 Q905 PBR951 Q701 BFR92A Q9.16.19 KTC3875S Q8.12.15.20 KTA1504S Q407.417 Q14.17.18.21.24 KRC104S (ND) Q403.406.408.410 Q411.418.425 Q7.22 KRA104S (PD) Q401.402.413.424 KRC110S (NK) Q419 KRA110S (PK) Q1.2...
  • Page 80 MANUFACTURER’S BASE DIAGRAM REFERENCE NO. SYMBOL PART NUMBER D1.8.9 KDS181 (A3) D402 KDS193 (F3) D601 KDS226 (C3) D901.902 ZENER (5.6V) D404.405.406.410 HSMS-2817 1SV229 D201.202.301 1SV217 KDS160 D801 MBRS140T3 D802 UPP9401 D3.5 KTA1663...
  • Page 81 MANUFACTURER’S BASE DIAGRAM REFERENCE NO. SYMBOL PART NUMBER BFG35 Q702 BLT50 NE5510279A 2SK3079A Q703 2SK3476 SI4412DY Q801.802 TMP87PS68DF IC401 KIA7042F IC414 Voltage Detector IC MB15A02PFV1 PLL IC TA31136FN IF IC NJM12903V IC403 Comparator NJM12904V IC3.4.5 OP AMP MUX./DEMUX. MC14053BD IC409 DC/DC Converter LTC1435CS IC801...
  • Page 82 MANUFACTURER’S BASE DIAGRAM REFERENCE NO. SYMBOL PART NUMBER CSI24WC04J IC402 EEPROM LM386M IC412 AUDIO AMP 6TH SWITCHED MSNBLPS IC410 CAPACITOR LPF IC TK71750SCL VOLTAGE REGULATOR IC TC7S66FU IC418 Analog S/W IC...

  • Page 83: Schematic Diagrams

    13. SCHEMATIC DIAGRAMS This chapter contains 9 schematic diagrams as the following: Block Diagram for SD-160 Series Digital B’D Schematic for SD-160/SD-170 Series RF B’D Schematic for SD-161 RF B’D Schematic for SD-164 RF B’D Schematic for SD-171 RF B’D Schematic for SD-174...
  • Page 88 RF B’D Schematic for SD-171 (Reserved)
  • Page 89 RF B’D Schematic for SD-174 (Reserved)

  • Page 93: Circuit B'd Details

    14. CIRCUIT B’D DETAILS This chapter contains 7 circuit B’D details as the following: Digital PCB details for SD-160/SD-170 Series RF PCB details for SD-161/171 RF PCB details for SD-164 RF PCB details for SD-174 PCB details for ACC-513 (GMSK Modem) PCB details for ACC-514 (FFSK Modem) PCB details for ACC-515 (GPS Module)
  • Page 106 PCB details for ACC-515 (GPS Module) - Reserved...
