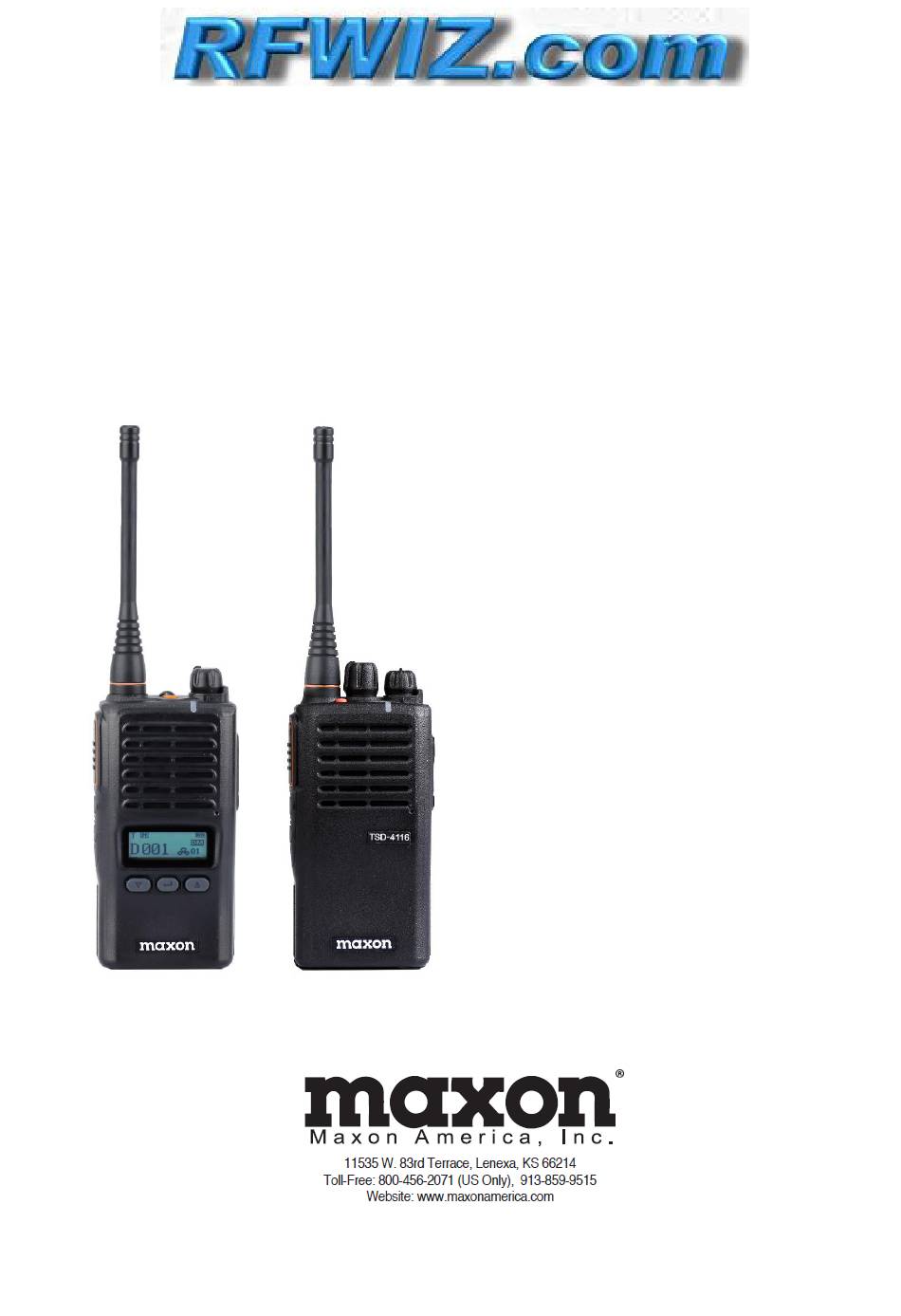

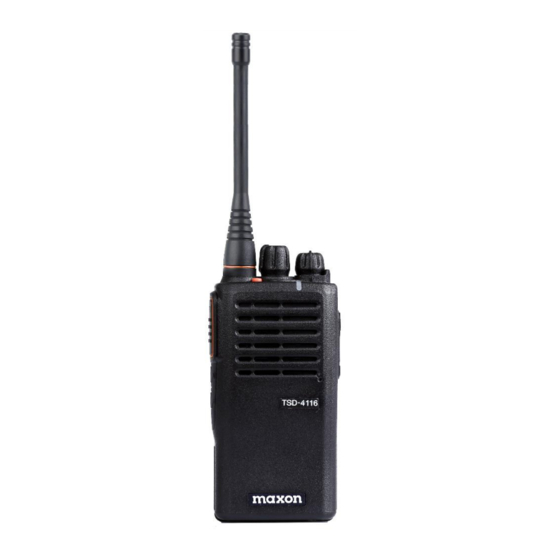

- Page 1 TSD-4000 Series Digital/Analog Radios User’s Manual Display TSD-4424 (UHF) TSD-4124 (VHF) Non-Display TSD-4416 (UHF) TSD-4116 (VHF)
- Page 2 ----------------------- 8. Precautions and Warranty Statement ----------------------------------------------- Thank you for your purchase of the TSD-4000 Series radio. 1. Before using the radio, please read the user guide in detail. 2. The functions and specifications are subject to change without notice.
-
Page 3: Specifications
Specifications TSD-4000 Series Radio Specifications Frequency Range TSD-4124/4116: 136 ~ 174 MHz TSD-4424/4416: 400 ~ 470 MHz Digital DMR Tier II TDMA Programmable Channels 512 Channels: 16 Channels with 32 Zones per channel Dimensions (H/W/D) 4.6 x 2.16 x 1.33”... -
Page 4: In-Box Contents
Battery Dual slot charger Antenna DC Adapter Belt Clip User manual Figure 2-1) TSD-4000 Series in-box items Accessory Part Numbers: ACC-440N: Radio Programming Software TA-855X: Heavy Duty Speaker Microphone ACC-3320E: Programming Cable (USB) w/volume control TA-817X: “D” Style earpiece w/PTT TSA-4260: 2,600mAH Li-ion battery pack TA-818X: “Discrete”... - Page 5 3. Controls and Appearance of TSD-4424/4124 Power ON/OFF Volume Control Knob Turns radio on/off and adjusts audio volume level. PTT Button (Push-To-Talk Button) Press and hold the PTT button to transmit voice and then release it to receive. Menu/OK/Select (programmable button) Used to make selections or enter menus.
- Page 6 Figure 3-1) LCD Icons for TSD-4424/4124 DMR Radio 3.1 Controls and Appearance of TSD-4416/4116 Power ON/OFF Volume Knob Turns radio on/off and adjusts audio volume level. Channel Knob Change channels by turning the control knob clock-wise or counter-clockwise. 16 Channels can be inputted into each zone.
- Page 7 Status LED Used to determine Rx/Tx status and battery charge level. 4. TSD-4000 Series: Accessories and Charging Antenna Attachment and Removal: Turn the antenna clockwise to put on and tighten the antenna and then counterclockwise to loosen and take off the antenna as shown in diagram on right.
-
Page 8: Charging The Battery
5. Charging the Battery 5.1 Safety Notes 1) TSD-4000 Series radios use a large capacity 2600 mAh Li-ion battery (TSA-4260). Use the original battery and charger to ensure you are using safe and reliable equipment. 2) Please use a fully charged battery before using the radio for best performance and safety. -
Page 9: How To Charge
radio performance is degraded. These are the radio’s indicators to alert you to a low battery: 1) Red lamp on RX/TX LED blinks (every 0.5 second) during transmission or reception, and LOW BATTERY beeping sound occurs during use. 2) Battery indicator icon is blinking. 5.3 How to Charge 1) Make sure power adapter for the Dual Slot charger is plugged into the charger (Figure 5-1) and then plug the power adapter for the TSA-0400 charger into an AC120V power outlet. -
Page 10: Menu Description
6. Using the TSD-4424/4124 Display Series 6.1 Menu description To enter the Menu mode, press the Menu / Select button. There are 8 main menus in Menu mode when on a Digital Channel and 4 when on an Analog channel. These menus can be added or removed via the radio’s PC programmer to help you organize the radio the way you want it. -
Page 11: Quick Message
Figure 6-3) TSD-4424/4124 Analog Mode Main menu ☞ Note) Radio will revert to standby mode if no selection made in 25 seconds. 6.1.1 Contact (Digital Mode Only) You can enter your contact list through the settings menu. Radio IDs are set by the radio’s PC programmer. - Page 12 or back up a step by pressing the “P” button. 2) Inbox The message “Inbox” can hold a maximum of 10 received messages. View your inbox by selecting “Inbox” from your Messages menu and then select the message you want to read from the contents listed.
- Page 13 for your oldest recordings start at #1 and are automatically deleted as new recordings are captured. Both the transmitting and receiving radios must either have “Encryption Mode” turned ON or OFF for Voice record calls. Voice record will not record communications between one radio that is using encryption and one that is not.
-
Page 14: Keypad Lock
Suppresses channel noise when the radio is not receiving a transmission. 4. VOX VOX function allows you to initiate a hand’s free voice-activated call through your radio when you switch to a programmed channel or select it from the menu. The radio detects your voice and automatically transmits without using the PTT button. -
Page 15: Radio Information
10. Brightness Used to adjust the screen brightness from 1 (dim) to 7 (brightest) LED Control Used to turn your LED status display ON or OFF. Your radio dealer can adjust detailed LED status behavior using the radio’s programming software. 12. - Page 16 7. TSD-4416/4116 (Non-Display) Function and Operation Function Button & Setting Status LED Descriptions Power up chime is heard then current radio channel selected will be spoken. If Power ON/OFF/Volume Orange radio is on an unprogrammed channel, ON/OFF Control Knob radio will beep. LED will be orange during power up.
- Page 17 8. Precautions 8.1 Precautions for Safe Operation of this equipment. Don’t remove the antenna from the Radio and don’t transform the antenna or make any changes to the antenna. Strong electronic waves emitted from the Radio can have an effect on the performance of the Radio if the antenna is modified and can cause the Radio to have a defect not covered under warranty.
-
Page 18: Safety Notes
8.3 Safety Notes Please read the following recommendations for safe and effective use of the Radio. • Please keep the Radio away at least 1 inch from the body. • Do not touch antenna if it is damaged. Risk of skin burn can occur if the outside surface of antenna gets stripped out. -
Page 19: Warranty Card
TSD-4000 Series Serial No. Purchase date Name Purchaser Address ※ Please contact Maxon below for Return Merchandise Authorization (RMA) number before you send your radio back for service. Maxon America 11535 West 83rd Terrace, Lenexa KS 66214 Tel: 800-456-2071 Fax: 913-859-9550... - Page 20 This User manual is subject to change without notice.
