PM100D
DATA COMPATIBLE MOBILE RADIO
FEATURES
4 Channels (VHF Only)
CTCSS/DCS
Channel Scanning With Lookback
Programmable Channel Spacing (12.5/20/25kHz)
Integral Speaker
Programmable Power (1-25W Hi/Lo)
MIL STD 810 C,D,E IEC529 Level IP54
15 Way High Density D Type Data Connector
Remote Channel Selection
PM100D MODEL INCLUDES:
PM100D - Mobile Radio
MA2472 Fist Microphone
Mounting Bracket
Power Cable
User Manual

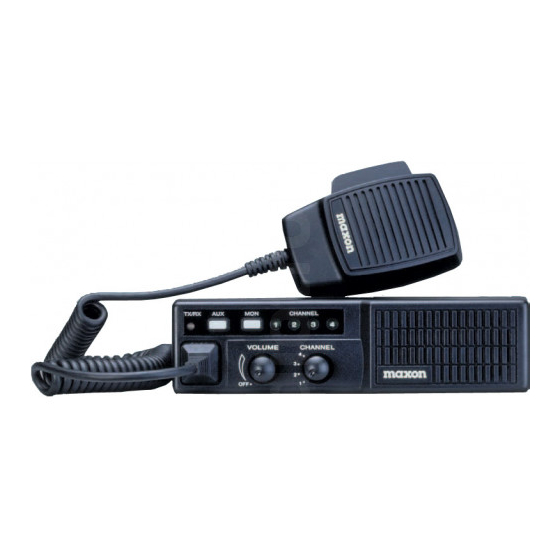

(Model shown as an example only)
Advertisement
Related Manuals for Maxon PM100D
Summary of Contents for Maxon PM100D
- Page 1 Programmable Power (1-25W Hi/Lo) MIL STD 810 C,D,E IEC529 Level IP54 15 Way High Density D Type Data Connector Remote Channel Selection PM100D MODEL INCLUDES: PM100D - Mobile Radio MA2472 Fist Microphone Mounting Bracket Power Cable User Manual (Model shown as an example only)
- Page 2 PM100 4 CHANNEL MOBILE RADIO FEATURES 4 Channels CTCSS/DCS Channel Scanning With Lookback Programmable Channel Spacing (12.5/20/25kHz) Integral Loudspeaker Programmable Power (1-25W Hi/Lo) MIL STD 810 C,D,E IEC529 Level IP54 PM100 MODEL INCLUDES: PM100 - Mobile Radio MA2472 Fist Microphone Mounting Bracket Power Cable User Manual...
-
Page 3: Frequency Bands
For changes to the standard product listed overleaf, refer to the tables below for details on order codes. Items that can be varied are: • Frequency Bands • Internal Option Note that some options will incur an additional cost based on the variation from the standard option. - Page 4 PM100 / PM160 & PM150 ACCESSORIES MS2600-3/2 504550 2m length Power Cable with fitted Desktop PSU.Includes PM100 front panel (Requires ME190015 for plug and in-line fuse holder for PM100/PM160/PM150 PM150). NOTE: Does not include radio or microphone shown above CA1486 MB4000 MA2472 MA4472...
- Page 5 SMP6001 SL55, PM100 and PM160 Programming kit SMP7500 Selcall programming Kit (Windows 95/98) for SOP55-01 (and other Maxon radios with the selcall board) used in conjunction with SMP6100.(Required in addition to SMP6100). Includes CA7502 programming lead & ME440020 Interface box.
