Fast
EthErnEt
rackmount
switch
usEr
manual
Models 520409
& 520416

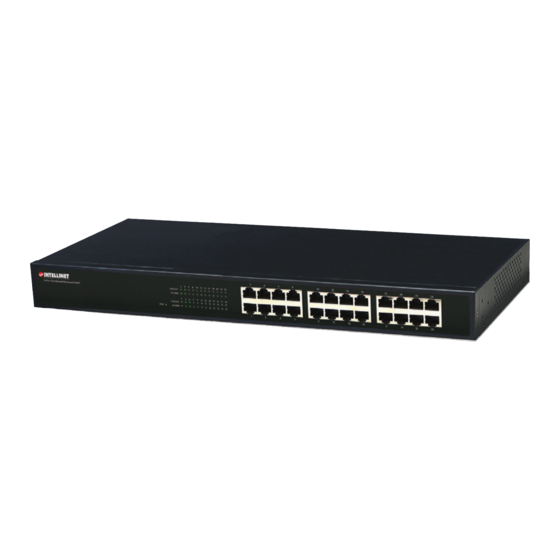

Shown: Model 520416, 24-Port
INT-520409/520416-UM-1009-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 520409 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intellinet 520409

Summary of Contents for Intellinet 520409

  • Page 1 Fast EthErnEt rackmount switch usEr manual Models 520409 & 520416 Shown: Model 520416, 24-Port INT-520409/520416-UM-1009-01...
  • Page 3 Thank you for purchasing the INTellINeT NeTWoRK solUTIoNs ™ Fast ethernet Rackmount switch, Model 520409 (16-Port) or Model 520416 (24-Port). This high-performance 10/100 Mbps lAN switch — with auto-sensing and auto-negotiation on every port — provides you with a space-saving,...
  • Page 4 ports & indicators Ports The RJ45 connections on the front panel (partially shown in the image below) match workstations, servers or other network devices to 10/100 Mbps switching ports that sense 10/100Mbps speed and automatically negotiate full/half duplex mode, allowing you to connect the switch to 10Base-T and 100Base-TX devices.
  • Page 5 PCs, Servers, Hubs and Other Switches, and Other Devices All of the RJ45 ports on the switch support Auto-MDI/MDI-X, allowing you to use straight-through or crossover cable to connect it to workstations, hubs and such. Connect one end of the network cable to an RJ45 port on the switch and connect the other end to an RJ45 port on the network device.

  • Page 6: Specifications

    • Ports: 10/100Base-TX RJ45 (Model 520409: 16; Model 520416: 24) • Packet filter/forwarding rate: 148,800 pps (100 Mbps); 14,880 pps (10 Mbps) • Backplane speed: Model 520409: 3.2 Gbps; Model 520416: 4.8 Gbps • MAC address table: 8192 entries • Buffer size: 156 kBytes •...
  • Page 8 INTELLINET NETWORK SOLUTIONS offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
