Intellinet 524063 User Manual

Gigabit ethernet rackmount web-smart switch
Hide thumbs Also See for 524063:

Advertisement

Quick Links

Download this manual See also: User Manual
GiGabit
EthErnEt
rackmount
WEb-Smart
SWitch
uSEr
manual
Models 524063
& 524087

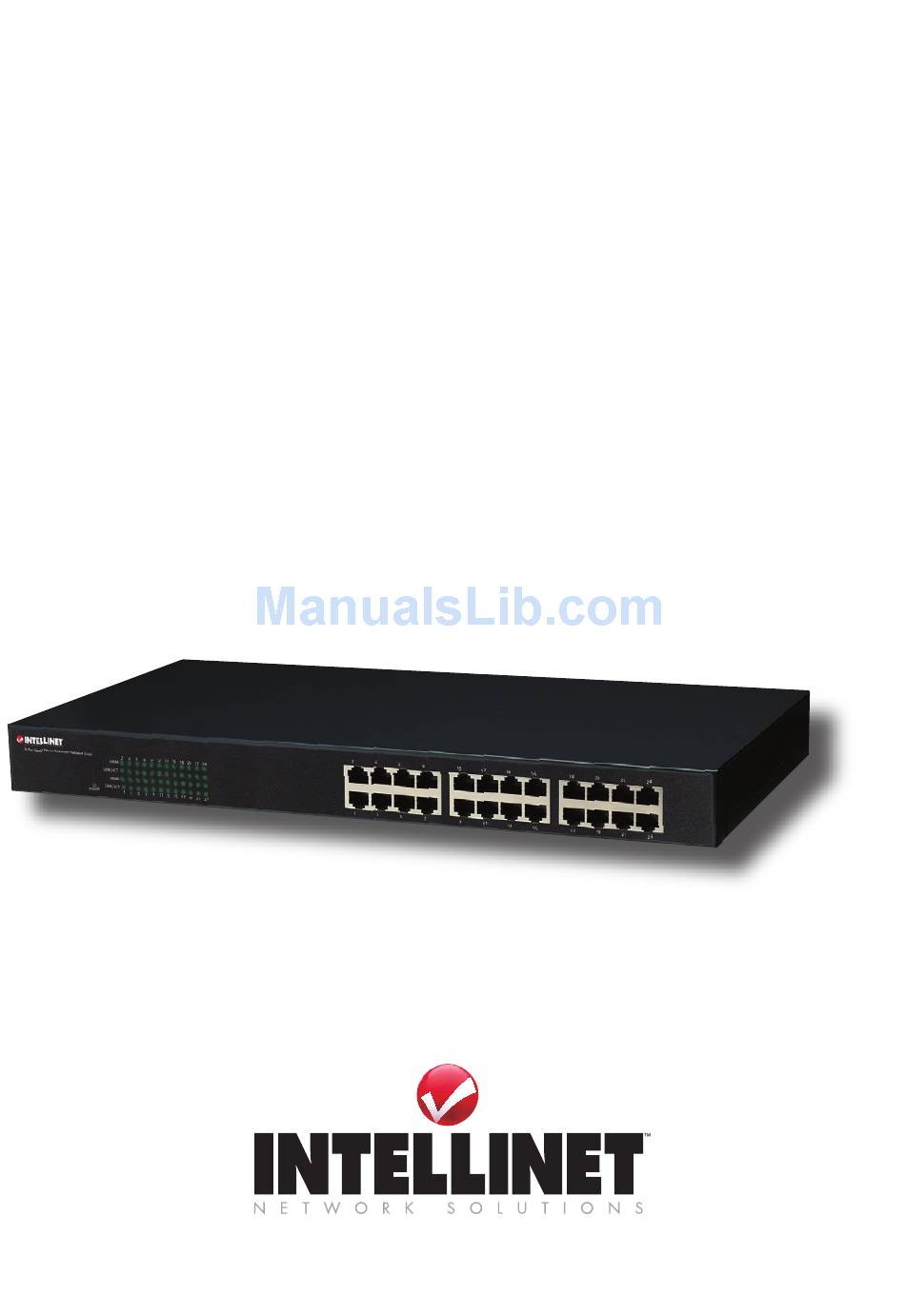

Model shown: 524063, 24-port
INT-524063/524087-UM-0308-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the 524063 and is the answer not in the manual?

Questions and answers

Related Manuals for Intellinet 524063

Summary of Contents for Intellinet 524063

  • Page 1 GiGabit EthErnEt rackmount WEb-Smart SWitch uSEr manual Models 524063 & 524087 Model shown: 524063, 24-port INT-524063/524087-UM-0308-01...
  • Page 3 Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ™ Gigabit Ethernet Rackmount Web-Smart Switch, Model 524063 (24-port) or Model 524087 (16-port). This handy device lets you increase the speed of your network with 10/100/1000 Mbps auto-sensing ports that automatically detect optimal...
  • Page 4 SEtup LED Status Operation POWER There is power to the unit. 1000M The corresponding port is transmitting/receiving at 1000 Mbps. The corresponding port is transmitting/receiving at 10/100 Mbps. LINK/ACT On The corresponding port is connected to another device. • Using twisted-pair cable, connect the switch to your computer. •...
  • Page 5 3. Enter “admin” in the Password field, then click “Apply.” The authentication process will now allow you to navigate among/within the primary menu options: Configuration, Monitoring and Maintenance. Configuration System This screen presents the MAC address, system firmware version and several other settings/ readings.
  • Page 6 Set up any port trunk groups you prefer, then click the port numbers you want to include in the same group. There are eight groups that can be created, and the maximum number of ports for any one group is 24 for Model 524063; 16 for Model 524087.
  • Page 7 LACP Select the port number(s) for which you want to enable/disable the protocol. RSTP Select the port number(s) for which you want to enable/ disable the protocol.
  • Page 8 Port Mirroring is used to mirror traffic from a source port to a destination port for analysis. Select the destination port (1 – 24 for Model 524063; 1 – 16 for Model 524087) in the left-hand column, then select the source port by checking the corresponding “Mirror Source”...
  • Page 9 QoS (Quality of Service) When QoS Mode is enabled, you can select the Quality of Service for each individual port. Filter Select the port number(s) for which you want to enable/disable IP address filtering. Rate Limit Select the port number(s) for which you want to establish/change speed settings.
  • Page 10 Monitoring Statistics Overview This screen lets you monitor the current status and statistics for each of the ports. Detailed Statistics This screen lets you view detailed statistics by clicking on the port in the top panel.

  • Page 11: Lacp Status

    LACP Status has LACP enabled. if other switch has LACP enabled. This screen lets you view the LACP (Link Aggregation Control Protocol) status for LACP ports. NOTE: Only 16 ports will display for Model 524087. RSTP Status Bridge ID 32769:00-03- cd-07-00-01 This screen lets you view the RSTP (Rapid Spanning Tree Protocol) status for RSTP ports.
  • Page 12 IGMP Status This screen lets you view the IGMP (Internet Group Management Protocol) status for IGMP ports. Monitoring: VeriPHY Cable Diagnostics This screen lets you check the cable status for all ports: Select a port and mode from the drop- down menus.

  • Page 13: Maintenance

    Maintenance Warm Restart Click “Yes” to reboot the switch in order to affect any changes. Factory Default Click “Yes” to return to the factory defaults. Additional Menu Options For Software Upload, Configuration, File Transfer and Logout procedures, select the menu option and follow the on-screen instructions.

  • Page 14: Specifications

    SpEcificationS • Port Aggregation/Trunking: Standards - Model 524063: 8 groups with up to 24 member • IEEE 802.1d (Spanning Tree Protocol) ports per trunk • IEEE 802.1w (Rapid Spanning Tree Protocol) - Model 524087: 8 groups with up to 16 member •...
  • Page 16 INTellINeT NeTWoRK solUTIoNs offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.

This manual is also suitable for:

524087
