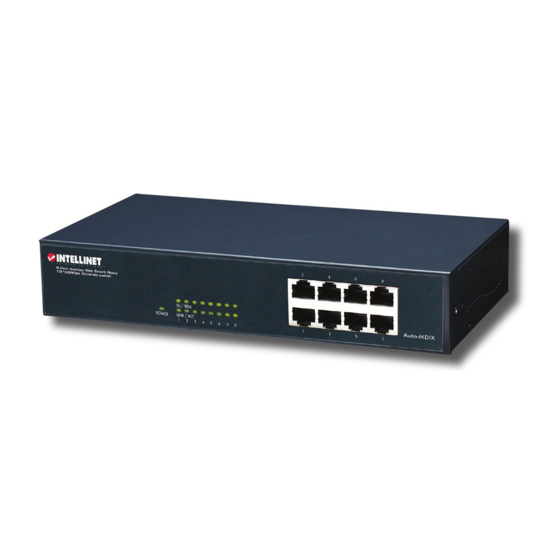

- Page 1 8 Port Fast EthErnEt WEb-smart sWitch usEr manual Model 523783 INT-523783-UM-0407-01...
- Page 3 Smart Switch management, making it a snap to monitor switch performance, configure ports, even set up port trunks, VLANs and traffic prioritization. Shipped ready for use straight out of the box, INTellINeT NeTWoRK SolUTIoNS Web- Smart Switches are ideal for adding basic management to your unmanaged networks and extending your managed networks.
- Page 4 conFiguration 1. Use a twisted pair cable to connect the Web-Smart Switch to your PC, then turn on power to the switch. 2. Set your PC’s IP to 192.168.2.xx. 3. open your Web browser, then go to the 192.168.2.1 site to display the login screen (right).
-
Page 5: System Ip Configuration
administrator authentication If you change the password — or create a new username and password — fill in the appropriate fields, then click “Update.” Restart the switch to effect any change. System IP Configuration If you change the IP address, fill in the appropriate field(s); click “Update” to effect any change. system status on this screen, you can view the switch’s MAC address and designate System Time-out Handling as either “Back to the last display”... -
Page 6: Port Management
Load Default Setting To load the factory default settings, click “Load,” then restart the switch to effect the change. Firmware update To update with new firmware, follow the instructions on this screen. Port Management Port Configuration CONFIGURATION... -
Page 7: Bandwidth Control
Port No. lets you select the port number you want to configure from the drop-down menu. Link Capability lets you set the selected port in either Auto-Nego(tiation) mode or Force mode on 100M or 10M. duplex lets you designate the selected port as full or half duplex. Tx &... -
Page 8: Vlan Setting
Max Packet Length Here, select either 1536 or 1552 Bytes as the maximum packet length supported by the switch. VLAN Setting Group VLAN Setting Four VLAN groups can be used. Select a group, then click the port number you want included. Vlan multi to 1 mode once this setting’s been activated, ports can only connect with the designated destination port. -
Page 9: Qos Setting
QoS Setting Class of Service Configuration on this screen, select the class of service for each port. High Priority Queue Configuration on this screen, select the Weight Round Robin weight: 1/4 or 1/8. customization diffserv To change the settings, follow the instructions on the screen. CONFIGURATION... -
Page 10: Specifications
Port Setting When this function is enabled, the port will record the first receiving-source MAC address as the security MAC address, and will allow only the packet which has the MAC address to be active on the port. Logout Click to log off. sPEciFications •... - Page 12 Are you completely satisfied with this product? Please contact your INTellINeT NeTWoRK SolUTIoNS dealer ™ with comments or questions. Copyright © INTellINeT NeTWoRK SolUTIoNS All products mentioned are trademarks or registered trademarks of their respective owners.
