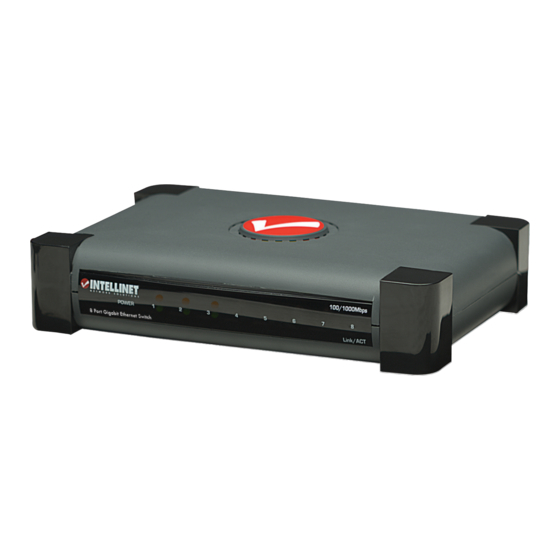

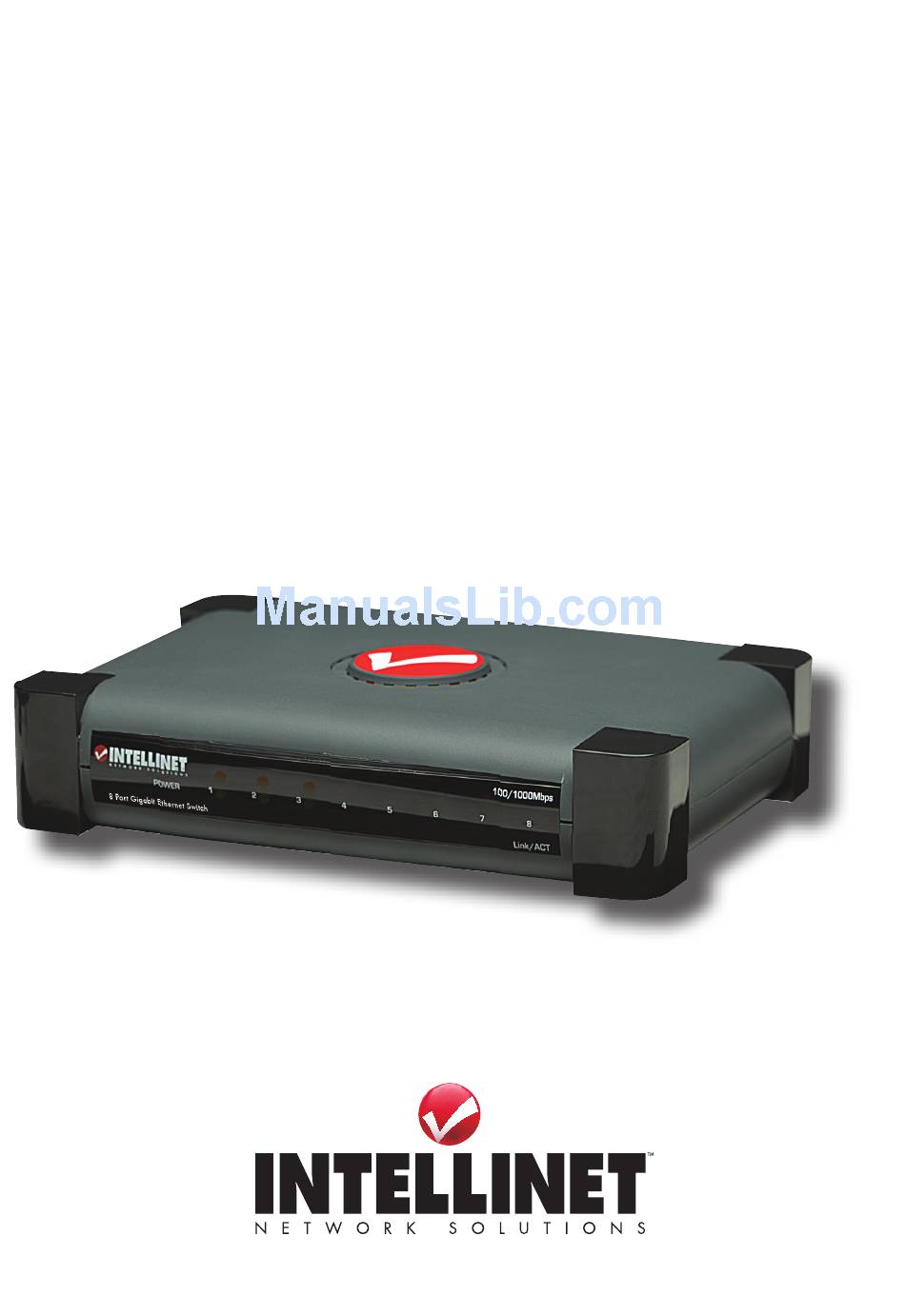

- Page 1 GiGabit EthErnEt DEsktop switch usEr manual Models 524117 & 524124 Model shown: 524124 INT-524117/524124-UM-0408-02...
- Page 3 Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ™ Gigabit Ethernet Desktop Switch, Model 524117 (5-port) or Model 524124 (8-port). Providing your network with the high level of performance it needs to handle quick transfer speeds to support disk mirroring, data backup,...
-
Page 4: Front Panel
front panEl The front-panel LED indicators — POWER, Link/Act and 100/1000Mbps — allow for more convenient monitoring and troubleshooting of the switch. The table below shows each LED function. Status Operation POWER Steady green Power on Check AC connection; turn the power on LINK/ACT Steady green... - Page 5 installation Cat5/5e UTP/STP cables provide optimal performance; just make your connections between the Gigabit Ethernet Desktop Switch and your network devices. If a front-panel LED corresponding to any of the five or eight ports in use doesn’t indicate a link or activity, check the connected device for proper setup and operation.
-
Page 6: Specifications
• Non-blocking, store and forward switching architecture • Backpressure flow control for half duplex mode on 10/100 Mbps ports • Connectors: - Model 524117: 5 10/100/1000 Mbps RJ45 ports - Model 524124: 8 10/100/1000 Mbps RJ45 ports • Switch architecture: store and forward switch technology •... - Page 7 Power • DC input: 5 V, 2 A Environmental • Plastic housing, desktop size • Dimensions: 109 (W) x 160 (L) x 33 (H) mm (5.5 x 6.3 x 1.3 in.) • Weight: 0.64 kg (1.4 lbs.) • Operating temperature: 0 – 40°C (32 – 104°F) •...
- Page 8 INTellINeT NeTWoRK solUTIoNs offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
