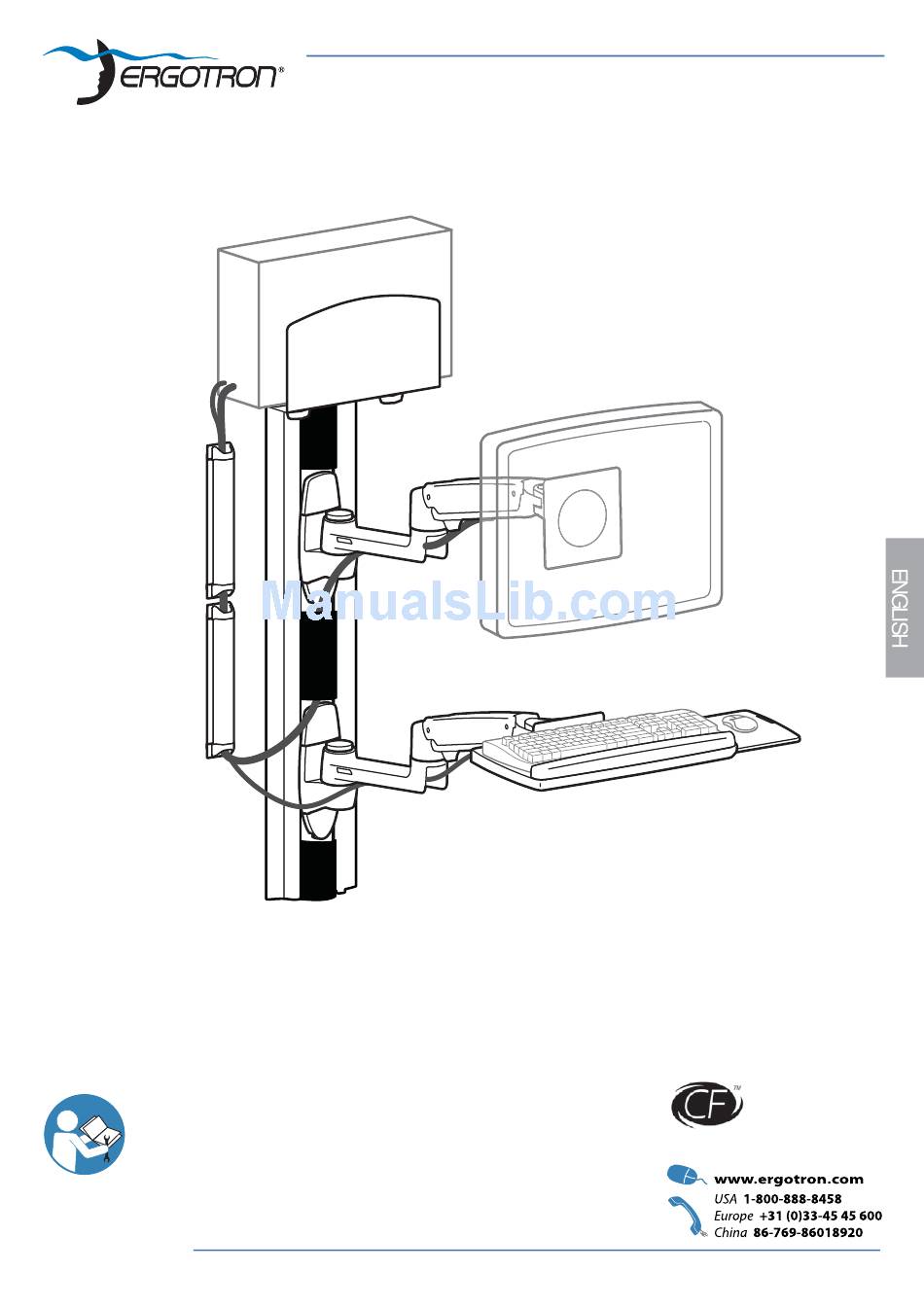

ASSEMBLY INSTRUCTIONS
LX Wall Mount System
Includes
Constant Force™
Technology
1 of 18

Advertisement

loading
Need help?

Need help?

Do you have a question about the LX Wall Mount System and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ergotron LX Wall Mount System

Summary of Contents for Ergotron LX Wall Mount System

  • Page 1 ASSEMBLY INSTRUCTIONS LX Wall Mount System For the latest User Installation Guide please visit: www.ergotron.com Includes User's Guide - English Constant Force™ Guía del usuario - Español Technology Manuel de l’utilisateur - Français Gebruikersgids - Deutsch Benutzerhandbuch - Nederlands Guida per l’utente - Italiano Användarhandbok - svenska...
  • Page 2 1.38" - 3.75" (35-95 mm) 50 lbs (22.7 kg) 5 - 25 lbs* (2.3 - 11.3 kg) 0 - 5 lbs (0 - 2.3 kg) 180° 70° 360° 13" (330 mm) 180° 5° 3° 3° 180° 13" (330 mm) 360° 90°...

  • Page 3: Tools Needed

    Components 1/4-20 x 2" M4 x 8mm 1/4-20 x 1/2" 2.5mm 10-24 x 1/2" 1/8” M10 x 16mm M4 x 10mm M4 x 10mm M4.2 x 25mm M3 x 6mm M4 x 14mm Tools Needed Ø 1/2” (12.7 mm) Ø 3/16" (5 mm) Hollow Wall Wood Studs ≥...

  • Page 4: Determine Mounting Location

    Mounting Height for Ergonomic Workstation This mounting height is a recommendation for an ergonomic workstation that accommodates user heights of 5'0"-6'1" (152-185cm) when set up for standing and user heights of 5’0”-6’4” (152-193cm) when set up for sitting. If user heights are diff erent than this, you should change mounting height to accommodate user heights. (Change mount- ing height one inch for every one inch diff erence in user heights).
  • Page 5 WARNING: Ensure that the wall structure is capable of supporting four times the total weight of mounted equipment. Mounting to wall surfaces that do not meet this criteria may result in an unstable, unsafe condition which could lead to personal injury and/or property damage.
  • Page 6 Wood Studs ≥ 25 gauge steel Madera Pernos de acero de calibre ≥ 25 Bois Goujons ≥ calibre 25 en acier Solide Holzbalkenträger Bolzen ≥ Blechlehre Nr. 25 Massief Houten Pilaren Verbindingsbouten ≥ 25 gauge staal Due montanti in legno massiccio Prigionieri in acciaio spessore ≥...
  • Page 7 Hollow Wall Pared Requires minimum material thickness of 5/8” (16 mm). ≥ 5/8” Requiere un grosor mínimo de 16 mm. Wand Muur Epaisseur minimum de 16 mm. Parete Requer uma espessura mínima de 5/8” (16 mm). Sheetrock Mit einer Materialdicke von mindestens 16 mm. Sheetrock Vereist een minimale materiaaldikte van 1.6 cm.
  • Page 8 1/4-20 x 1/2" 10-24 x 1/2" 10-24 x 1/2" 10-24 x 1/2" NOTE: Fasteners may unwind due to vibration caused by movement of mounting solution over time. Inspect mounting solution for loose fasteners on a routine basis. If desired, apply a light duty thread locking adhesive to fasteners before installation to prevent back-out.
  • Page 9 M10 x 16mm 1/8" 888-45-176-W-06 rev.R • 09/14 9 of 18...
  • Page 10 M4 x 10mm M4 x 10mm M3 x 6mm 0° 888-45-176-W-06 rev.R • 09/14 10 of 18...
  • Page 11 M4 x 8mm 888-45-176-W-06 rev.R • 09/14 11 of 18...
  • Page 12 888-45-176-W-06 rev.R • 09/14 12 of 18...
  • Page 13 NOTE: Leave enough slack in cable to allow full range of motion. Caution: To avoid the potential to pinch cables it is important to follow the cable routing instructions in this manual. Failure to follow these instructions may result in equipment damage or personal injury.
  • Page 14 Ø 7/32" (5.6 mm) M4.2 x 25mm M4.2 x 25mm 888-45-176-W-06 rev.R • 09/14 14 of 18...
  • Page 15 Adjustment Step Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or diffi cult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements.
  • Page 16 Tilt – Forward and Backward Increase Friction If this product moves too easily, then you'll need to increase friction: Decrease Friction If this product is too diffi cult to move, then you'll need to decrease friction: CAUTION: DO NOT remove screw. Removing screw may cause damage to equipment.
  • Page 17 How to remove this tilting feature: 3° 3° Save these screws incase you want to add this feature later. M4 x 14mm 888-45-176-W-06 rev.R • 09/14 17 of 18...
  • Page 18 Blink - Blink often to avoid dry eyes. Break • 2 to 3 minutes every 20 minutes • 15 to 20 minutes every 2 hours. For local customer care phone numbers visit: http://contact.ergotron.com 888-45-176-W-06 rev.R • 09/14 18 of 18...
