For the latest User Installation Guide please visit: www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイド : 日本語
用户指南 : 汉语
888-45-352-G-02 rev. E • 09/17

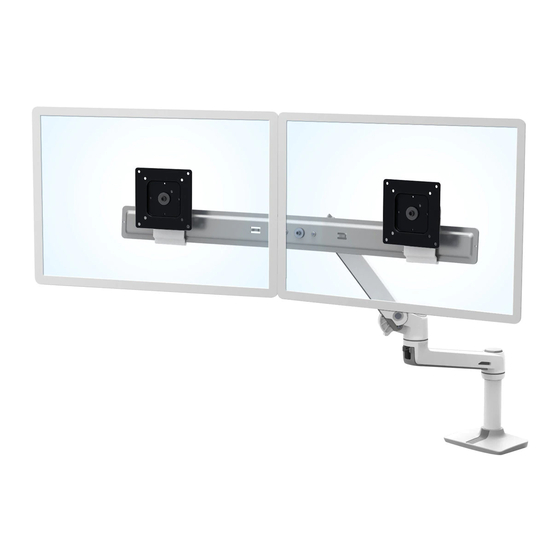

LX Desk Dual Direct Arm
User's Guide
Includes
Constant Force™
Technology
1 of 14
Advertisement
Related Manuals for Ergotron LX Desk Dual Direct Arm
Summary of Contents for Ergotron LX Desk Dual Direct Arm

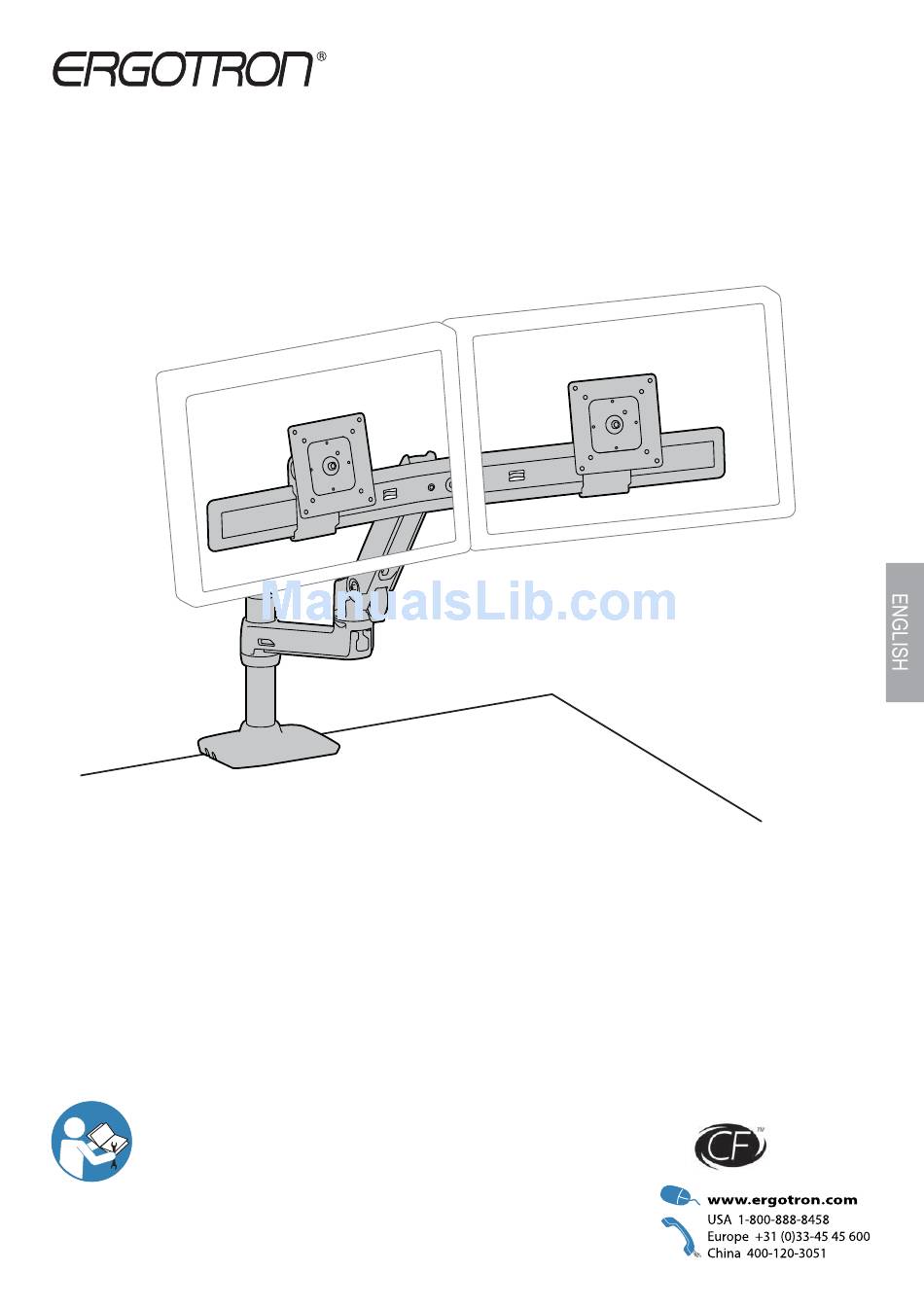

- Page 1 User's Guide LX Desk Dual Direct Arm For the latest User Installation Guide please visit: www.ergotron.com User's Guide - English Guía del usuario - Español Includes Manuel de l’utilisateur - Français Constant Force™ Gebruikersgids - Deutsch Technology Benutzerhandbuch - Nederlands Guida per l’utente - Italiano...
- Page 2 Hazard Symbols Symbol Signal Word Level of Hazard Review A NOTE indicates important information that helps you NOTE make better use of this product. These symbols alert users of a safety condi- tion that demands attention. All users should A CAUTION indicates either potential damage to be able to recognize and understand the CAUTION hardware or loss of data and tells you how to avoid the...
- Page 3 Features & Specifi cations CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! < 11lbs. (5 kg) < 11lbs. (5 kg) * The lower most range of motion for vertical lift may decrease up to 4.5” (114 mm) when arm is adjusted to hold over 20lbs (9 kgs).
-
Page 4: Tools Needed
Components 4 mm M4 x 10mm M4 x 8mm M4 x 6mm M4 x 10mm 2.5mm Tools Needed 10mm 4 of 14 888-45-352-G-02 rev. E • 09/17... - Page 5 ≤0.4" (10mm) 0.47" - 1.38" (12 - 35mm) 1.46" - 2.4" (37 - 60mm) 2.5mm 888-45-352-G-02 rev. E • 09/17 5 of 14...
- Page 6 M4 x 6mm OPTIONAL: Insert stop screw to lock portrait/landscape M4x 6mm monitor rotation. 0° Loosely thread thumb screws Attach monitors to mounting brackets. into mounting brackets. M4 x 10mm M4 x 10mm M4 x 8mm 6 of 14 888-45-352-G-02 rev. E • 09/17...
- Page 7 Slide monitor onto crossbar. 888-45-352-G-02 rev. E • 09/17 7 of 14...
- Page 8 Tighten thumb screws to secure monitors. M4 x 8mm M4 x 10mm M4 x 10mm 8 of 14 888-45-352-G-02 rev. E • 09/17...
- Page 9 NOTE: Leave enough slack in cable to allow full range of motion. Caution: To avoid the potential to pinch cables it is important to follow the cable routing instructions in this manual. Failure to follow these instructions may result in equipment damage or personal injury.
- Page 10 Adjustment Step Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or diffi cult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements.
- Page 11 Lift - Up and Down Raise arm to highest position. 4 mm Increase Lift Strength If the mounted weight is too heavy or this product does not stay up when raised, then you'll need to increase Lift Strength: Decrease Lift Strength If the mounted weight is too light or this product does not stay down when lowered, then you'll need to decrease...
- Page 12 Level Crossbar 4 mm 12 of 14 888-45-352-G-02 rev. E • 09/17...
- Page 13 Arm Swing – Side-to-side 2.5mm Increase Friction If this product moves too easily from side-to-side, then you'll need to increase friction: Decrease Friction If this product is too diffi cult to move from side-to-side, then you'll need to decrease friction: CAUTION: DO NOT remove screw.
- Page 14 • 15 to 20 minutes every 2 hours. For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com NOTE: When contacting customer service, reference the serial number. © 2016 Ergotron, Inc. All rights reserved.
