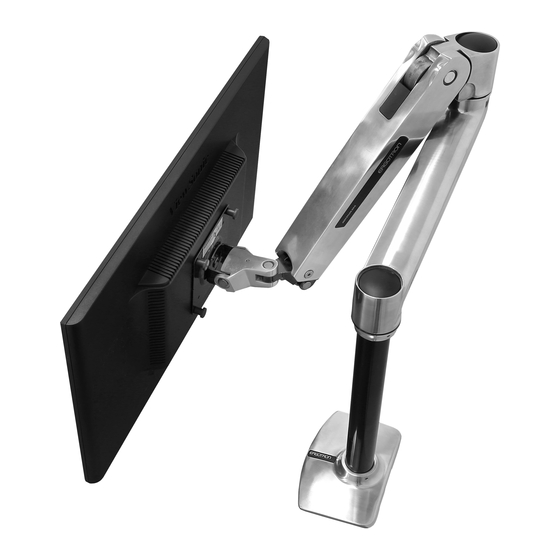

LX Sit-Stand
Desk Mount LCD Arm
0.78"-2.25" (20-57mm)
0.5"-2.5" (13-64mm)
360°
|
Europe: +31 (0)33-45 45 600
20"
(508 mm)
1/4"
|
China: 400-120-3051
14-30 lbs
(6.35-13.61 kg)
Maximum Screen
Size* = 42"
*Limited to 25 lbs
maximum
70°
5°
|
Japan: japansupport@ergotron.com

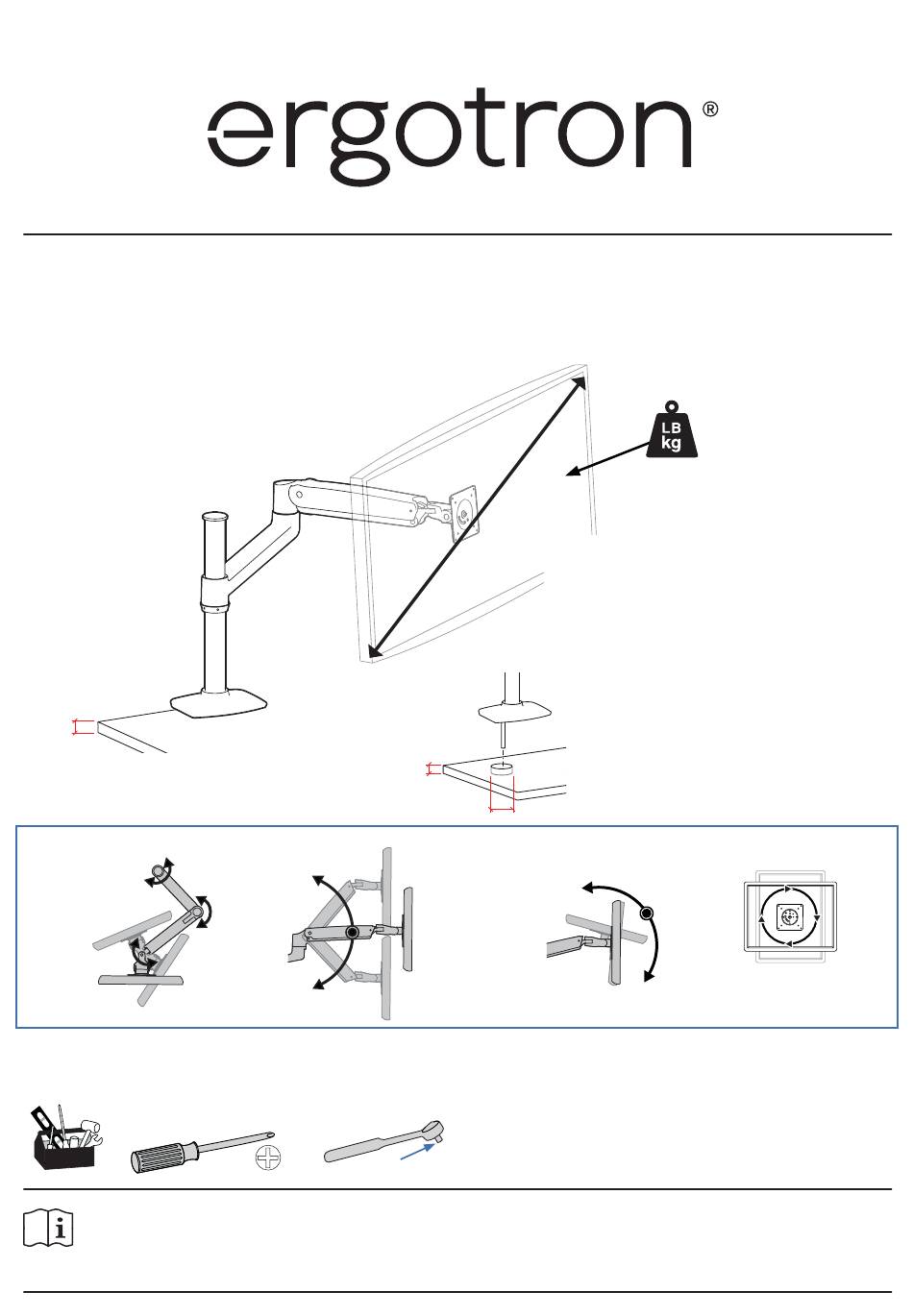

User's Guide
English
1 of 15

Advertisement

loading
Need help?

Need help?

Do you have a question about the LX Sit-Stand and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ergotron LX Sit-Stand

Summary of Contents for Ergotron LX Sit-Stand

  • Page 1: Tools Needed

    20" (508 mm) 180° 5° Tools Needed English 1/4" For the latest User Installation Guide please visit: www.ergotron.com English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语 www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com 888-45-311-W-01 rev.J •...
  • Page 2 Safety CAUTION: DO NOT rotate monitor past rear edge of desk. Doing so will create an unstable situation and may cause equipment damage or personal injury. Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments.
  • Page 3 Components M5 x 7mm 2.5mm M4 x 10mm M4 x 10mm M3 x 6mm 1x 1x M8 M5 Kit M6 x 45mm 1/4” M5x20mm M8-M5 Reducer M4x12mm M5x12mm M6x12mm 888-45-311-W-01 rev.J • 12/18 3 of 15...
  • Page 4 CLAMP GROMMET HOLE DESK THICKNESS 0.78"-1.38" (20-35mm) 1.18"-2.56" (30-65mm) 1/4” 1/4" CAUTION: Bolt must be centered in hole. 4 of 15 888-45-311-W-01 rev.J • 12/18...
  • Page 5 Portrait / Landscape Options OPTION i If you want full portrait/landscape rotation, skip to step 8 on the next page. OPTION ii If you do not want your TV/Monitor to rotate all all, you can stop rotation by inseting the set screw. 0˚...
  • Page 6 Check size of TV/Monitor hole TV/Monitor Hole VESA Adapter pattern Pattern Sizes Confi gurations 100mm (3-15/16”) 75mm (2-15/16”) 75x75mm 100x100mm 100mm (3-15/16”) 100x200mm 200mm (7-7/8”) 200x200mm 200mm (7-7/8”) 200x100mm 6 of 15 888-45-311-W-01 rev.J • 12/18...
  • Page 7 Mount Type A TV/Monitor to Arm M4 x 10mm 75x75mm 100x100mm 100mm (3-15/16”) M4 x 10mm 75mm (2-15/16”) M4 x 10mm 7 of 15 888-45-311-W-01 rev.J • 12/18...
  • Page 8 Mount VESA Adapters to Arm based on TV/Monitor hole pattern size (B, C, or D) . M5 x 7mm 8 of 15 888-45-311-W-01 rev.J • 12/18...
  • Page 9 Mount Type B, C, or D TV/Monitor to Arm 100mm (3-15/16”) 200mm (7-7/8”) 200mm (7-7/8”) M5x12mm M4x12mm M6x12mm NOTE: To reduce M8 holes for use with M5 screws, or if you have a model with Samsung holder rings, follow the M8M5 KIT instructions on the next page.
  • Page 10 M8M5 KIT Instructions NOTE: follow this step only if your TV/monitor has M8 holes which need to be reduced to M5 or for Samsung models using the holder ring. Install M8M5 reducer bushing to TV/Monitor and use M5 x 20 mm monitor screws to secure when using the Samsung holder ring.
  • Page 11 Mount extension and arm to pole. CONTAINS GREASE. Use bag to protect hands from getting greasy. 824-369-00 M6 x 45mm 1x 1x 888-45-311-W-01 rev.J • 12/18 11 of 15...
  • Page 12 Organize and route cables 12 of 15 888-45-311-W-01 rev.J • 12/18...
  • Page 13 Adjustment Step Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or diffi cult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements.
  • Page 14 To adjust the TV/monitor tilt: CAUTION: DO NOT remove screw. Removing screw may cause damage to equipment. Increase Lift Strength If the mounted weight is too heavy or this product does not stay up when raised, then you'll need to increase Lift Strength: Decrease Lift Strength If the mounted weight is too light or...
  • Page 15 Break • 2 to 3 minutes every 20 minutes • 15 to 20 minutes every 2 hours. ™ www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com © 2015 Ergotron, Inc. All rights reserved. 888-45-311-W-01 rev.J • 12/18 15 of 15...
