Ergotron LX Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Ergotron Manuals
  4. Racks & Stands
  5. LX
  6. Assembly instructions manual

Ergotron LX Assembly Instructions Manual

Keyboard arm, wall mount
Hide thumbs Also See for LX:

Advertisement

Quick Links

Download this manual
A
1x
1x
1
4x
2
M4x10mm
1x
3
1/8"
2x
4
2x
5
2x
6
Stud Finder
螺栓探测器
스터드 파인더
888-45-047P-00 rev.G • 09/09
B
1x
4x
10-24 x 1/2
1x
2.5mm
1x
M8 x 80mm
Ø 3/16" (5 mm)
Wood
木质
나무
Ergotron LX Keyboard Arm, Wall Mount
C
1x
1x
1x
3/32"
1x
2x
2x
Ø 3/8" (10 mm)
Concrete
水泥质
콘크리트
ASSEMBLY INSTRUCTIONS
安装说明
설치 안내
D
1x
4mm
1x
13mm
1/13

Advertisement

loading
Need help?

Need help?

Do you have a question about the LX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ergotron LX

Summary of Contents for Ergotron LX

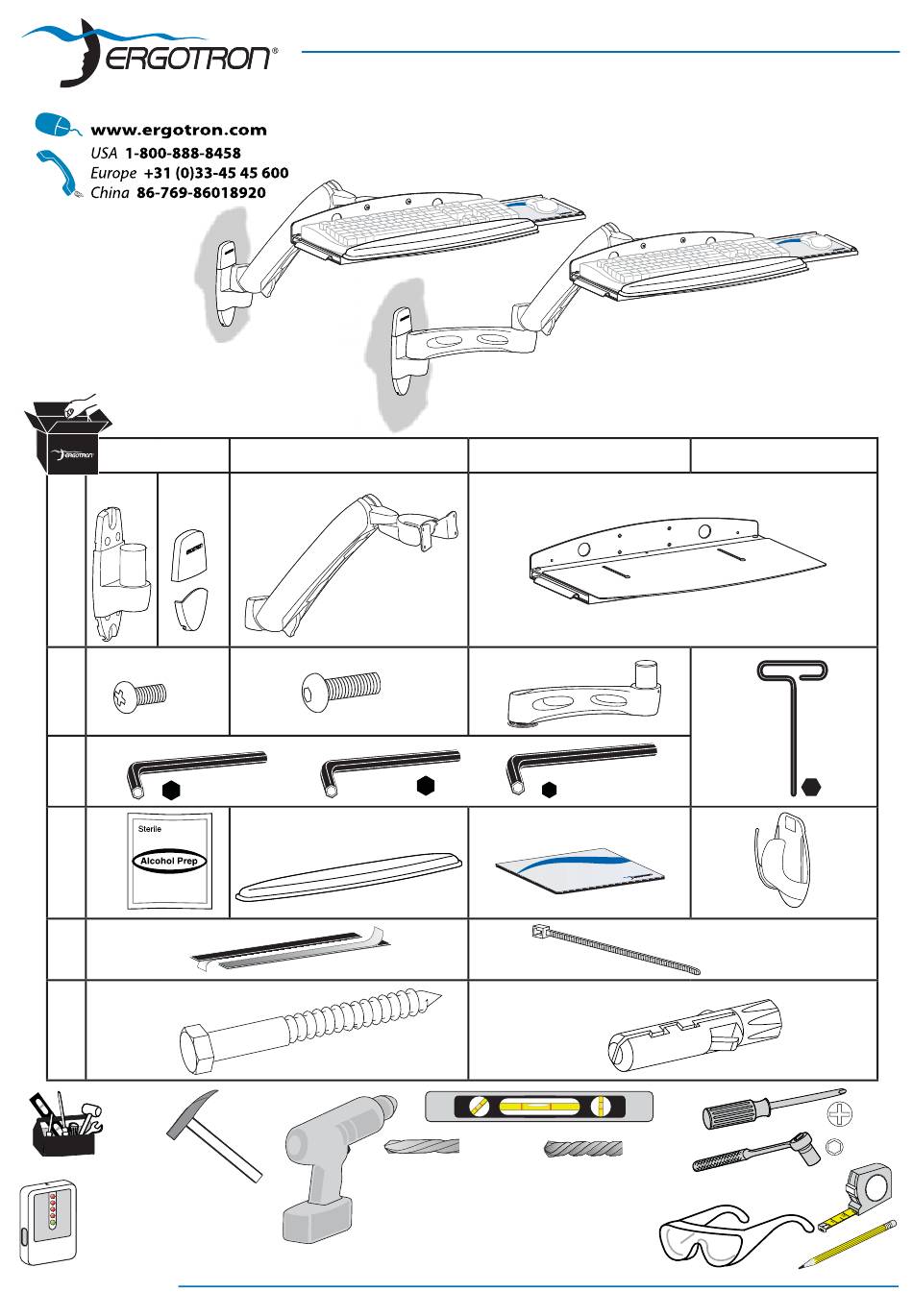

  • Page 1 Ergotron LX Keyboard Arm, Wall Mount ASSEMBLY INSTRUCTIONS 安装说明 설치 안내 10-24 x 1/2 M4x10mm 2.5mm 1/8" 3/32" M8 x 80mm 13mm Ø 3/16" (5 mm) Ø 3/8" (10 mm) Stud Finder Wood Concrete 螺栓探测器 木质 水泥质 스터드 파인더 나무...
  • Page 2 충족하지 않는 벽 표면에 장착하면 불안정하고 안전하지 않은 상태가 되어 부상을 입거나 제품 손상이 발생할 수 있습니다. 이에 대한 정확한 의미를 잘 모르겠으면 건축 전문가에게 문의하십시오. 33" (838 mm) To Floor ERGOTRON PRODUCT Wood Concrete ERGOTRON 产品 木质 水泥质 ERGOTRON 제품...
  • Page 3 ERGOTRON PRODUCT ERGOTRON 产品 ERGOTRON 제품 NOTE: Wall Track and Brackets sold separately. 墙轨和托架单独出售。 벽 트랙 및 브래킷 별도 판매 1/8" 1/8" When attaching to Pole Clamps, use 10-24 x 5/8” screws included with pole brackets, Do NOT use 10-24 x 1/2” screws 安装到杆夹时，采用10-24 x 5/8”螺...
  • Page 4 Wood 木质 나무 Ø 3/16" (5 mm) M8 x 80mm CAUTION: Make sure the wall mount bracket is level, fl ush and snug to the wall surface. DO NOT OVERTIGHTEN THE BOLTS. 注意： 13 mm 请确保壁挂式安装支架水平、平直并紧贴墙 壁。不要过度拧紧螺栓。 주의: 벽 설치 브래킷이 수평이며 벽 표면에 편평 하고...
  • Page 5 Concrete 水泥质 WARNING: 콘크리트 Mounting holes must be at least 3-1/8” (80mm) deep and must be located within solid concrete, not mortar or covering material. If you drill into an area of concrete that is not solid, reposition mounting holes until both anchors can be fully inserted into solid concrete! 警告：...
  • Page 6 Concrete 水泥质 WARNING: 콘크리트 Anchors that are not fully set in solid concrete will not support the applied load resulting in an unstable, unsafe condition which could lead to personal injury and/or property damage. Consult a construc- tion professional if you have any doubt about what this means in regard to your particular situation.
  • Page 7 M4x10mm 3/32" 888-45-047P-00 rev.G • 09/09 7/13...

  • Page 8: Cable Routing

    CABLE ROUTING 电线路径 Leave slack in cable. 케이블 정리 电线保持松弛 케이블을 느슨하게 유지 888-45-047P-00 rev.G • 09/09 8/13...
  • Page 9 LIFT – Up and down: This product is designed to adjust quickly and easily according to your needs – refer to following steps for adjustment. 抬起 –上下: 该产品的设计是为了快捷的适应您的需要 参看以下步骤 +36˚ 进行调整。 높이 – 위/아래로 11.5" 본 제품은 원하는 대로 쉽고 빠르게 조절할 수 있도록 설계되었습니 (292 mm) 다.
  • Page 10 ARM SWING – Side-to-side: This product is designed to adjust quickly and < 180˚ easily according to your needs – refer to following steps for adjustment. 臂摇摆－侧向: 该产品的设计是为了快捷的适应您的需要 参看以下步骤 进行调整。 < 360˚ < 180˚ 암 스윙 – 수평 본 제품은 원하는 대로 쉽고 빠르게 조절할 수 있도록 설계되었습니다. 조절...

  • Page 11: Troubleshooting

    TILT – Forward and Backward 倾斜 – 前后 기울기 조절 – 앞/뒤로 -84˚ -5˚ Trouble Shooting Problem Cause Solution Adjust Lift Tension needs adjustment. Display lifts up and down too easily or with diffi culty. Exceeds weight capacity: 0 - 5 lbs. (0 - 2.27 kg). Adjust Arm Swing Arm swings side-to-side Tension needs adjustment.
  • Page 12 문제 해결 문제점 원인 해결책 높이 조절 장력을 조절해야 합니다. 디스플레이를 상하로 움직 이기가 너무 쉽거나 너무 어 렵습니다. 허용 중량을 초과합니다: 0 - 5 lbs. (0 - 2.27 kg). 암 스윙 조절 암을 수평으로 돌리기가 너 무 쉽거나 너무 어렵습니다. 장력을 조절해야 합니다. 888-45-047P-00 rev.G •...
