Parts Identification

1. Stator Frame
2. Stator Laminations
3. Rotor Laminations
4. Stator Windings
5. Air Deflector
6. Fan
7. Upper Half End Shield
8. Upper Bearing Cap
9. Bearing
44
GE Energy Motors GEEP-427-I
GEEP-427-I Pegasus, Horizontal Induction Motor
10. Shaft
11. Oil Ring
12. Lower Half End Shield
13. Heater
14. Conduit Box
15. Lower Half End Shield
16. Oil Sight Glass
17. Cover
18. Bearing

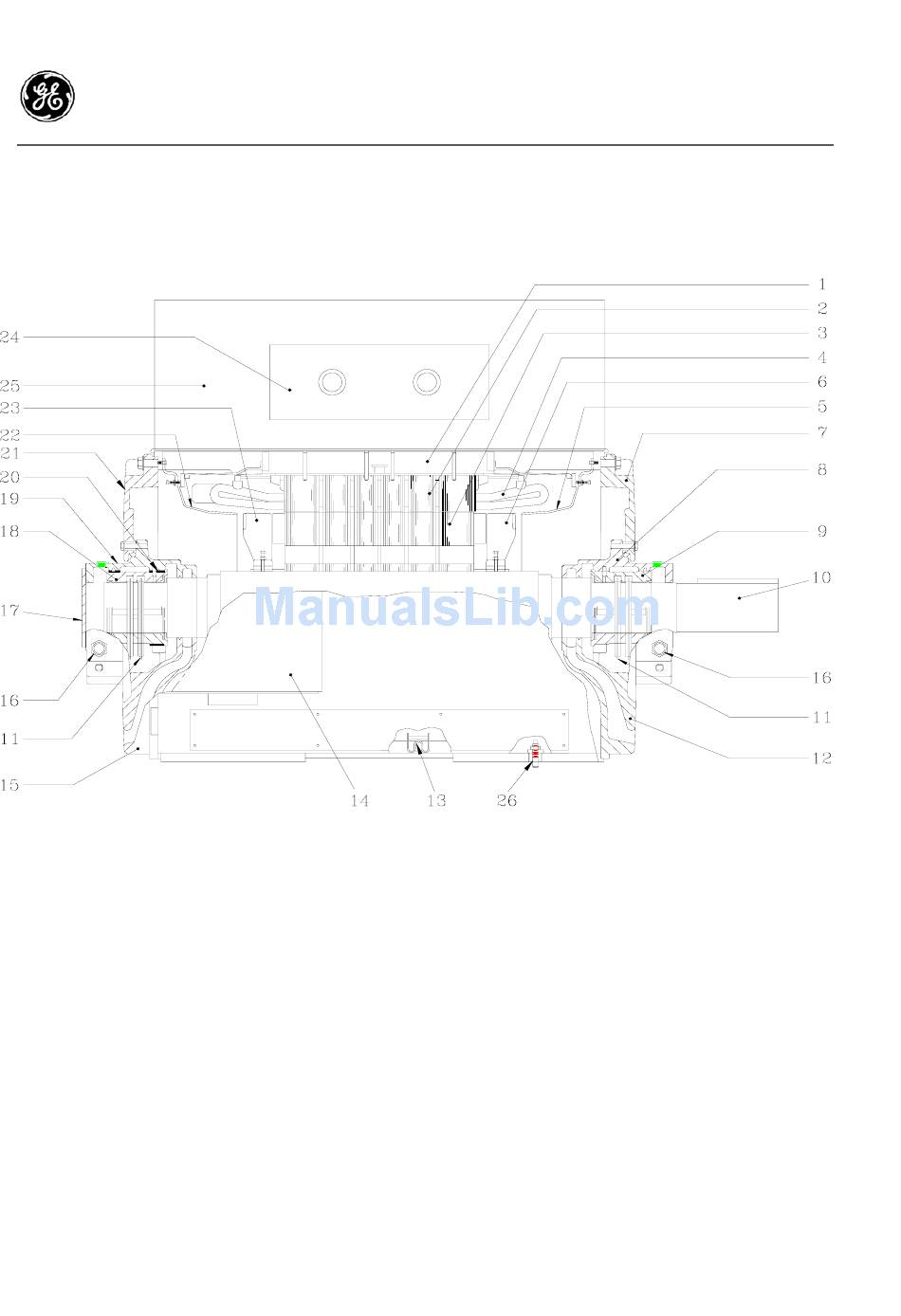

Fig. 1 General view
Copyright 2009, The General Electric Company, USA
TEWAC, Sleeve Bearing
19. Upper Bearing Cap
20. Bearing Insulation
21. Upper Half End Shield
22. Air Deflector
23. Fan
24. Water to Air Heat Exchanger
25. Top Cover Assembly
26. Dowel Pin
