Maintenance - Drive-End Bearing

1. End shield bolt
2. Upper half end shield
3. Upper half end shield bolt
4. Upper bearing cap
5. Upper half bearing
6. Bearing bolt
7. Shaft
8. Lower-half end shield
9. Lower half bearing
10. Oil ring

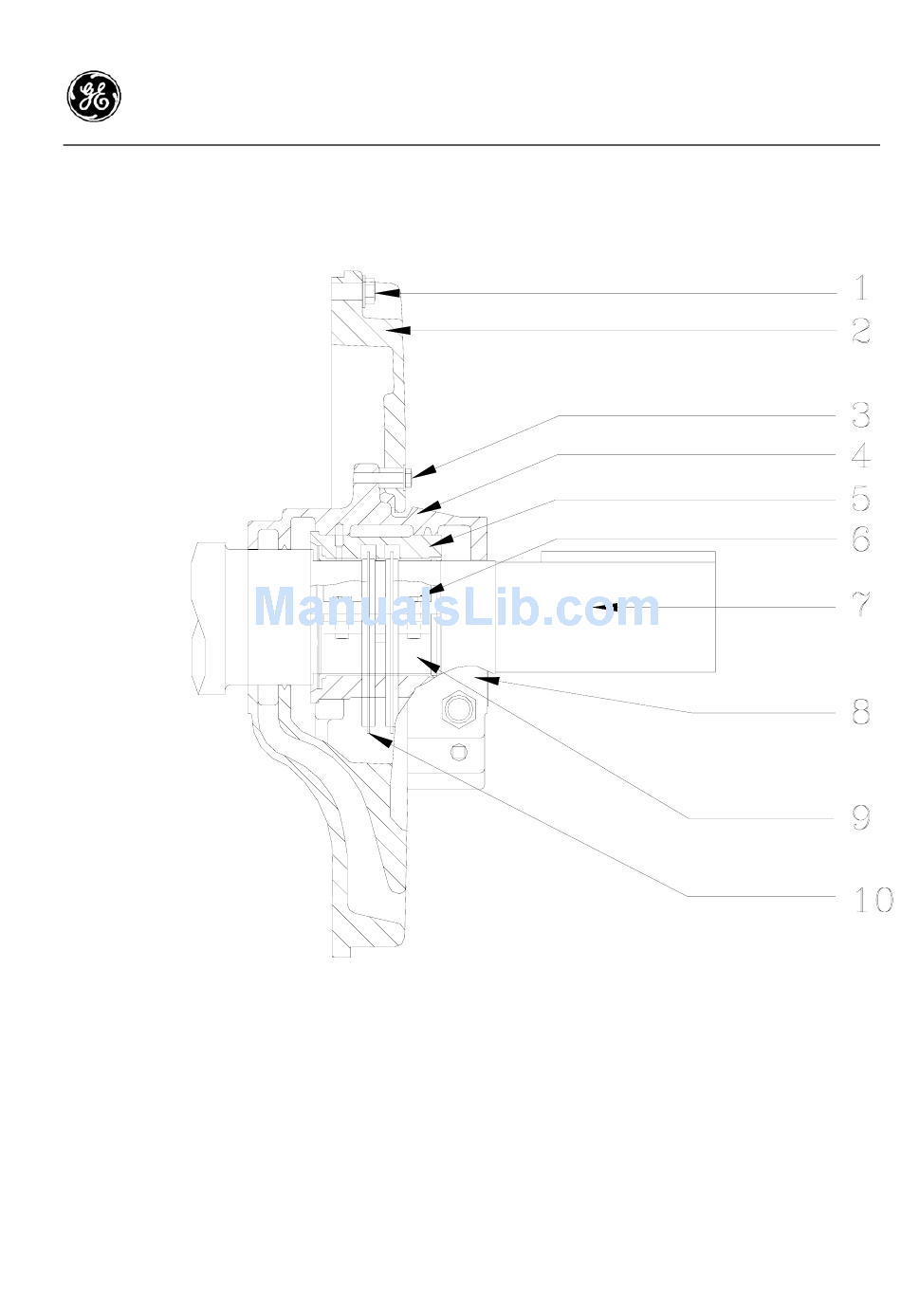

Fig. 1. Drive-End Bearing
GE Energy Motors GEEP-427-I
