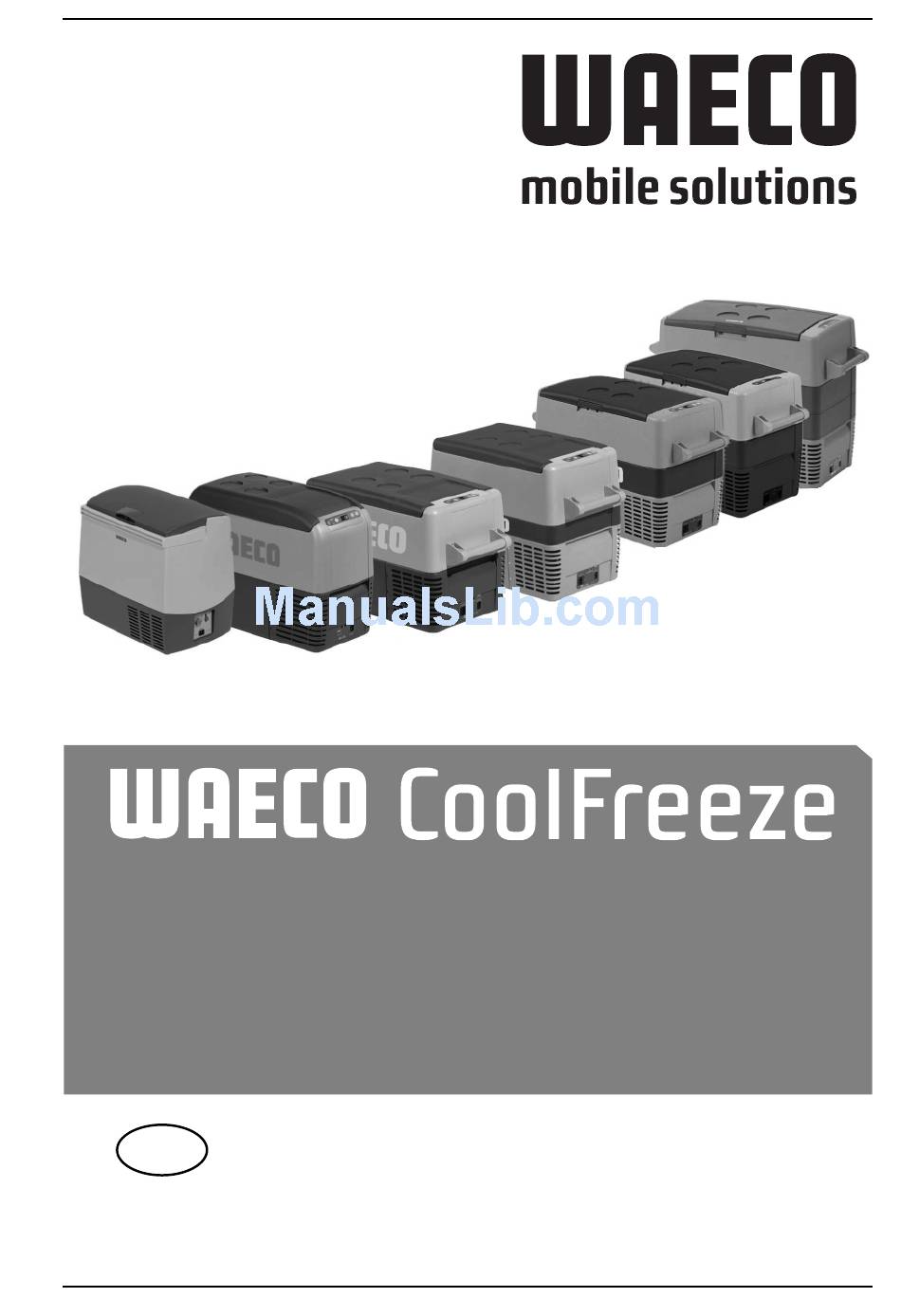

- Page 1 CF-60 AC CF-50 ACDZ CF-50 AC CF-40 AC CF-35 AC CF-25 CF-18 CF-18,CF-25,CF-35, CF-40, CF-50, CF-50DZ, CF-60 Compressor Cooler Instruction Manual M_81003...
-
Page 2: Table Of Contents
CoolFreeze Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is handed over to another person, this operating manual must be handed over along with the device. Contents Notes on using the manual ............ -
Page 3: Components View
CoolFreeze CF-25, CF-35, CF-40, TEMPERATURE BATTERY MONITOR ERROR HIGH POWER COLD FREEZE 12/24V DC CF-18... - Page 4 CoolFreeze POWER ° DOWN – ERROR CF-25, CF-35, CF-40, CF-50, CF-60 100-240V~AC 12/24V DC 12/24V DC EMERGENCY OVERRIDE FUSE NORMAL USE CF-35, CF-40, CF-50, CF-60 CF-25 CF-35, CF-40, CF-50, CF-60...
- Page 5 CoolFreeze CF-50, CF-60...
-
Page 6: Notes On Using The Manual
3. Please observe the following safety instructions. Safety instructions • Caution! WAECO International will not be held liable for claims for damage resulting from the following: – Damage to the device resulting from mechanical influences and overvoltage – Alterations to the device made without the explicit permission of WAECO International –... -
Page 7: General Safety
• This device may only be repaired by qualified personnel. Inadequate repairs can lead to considerable hazards. • Should your device need to be repaired, please contact WAECO customer service. • Do not open the refrigerant circuit under any circumstances! •... -
Page 8: Operating The Device Safely
CoolFreeze Intended use Operating the device safely • Caution – Danger of electrocution! Do not touch exposed cables with your bare hands. This especially applies when operating the device from an AC mains. • Before starting the device, ensure that the power supply line and the plug are dry. -
Page 9: Scope Of Delivery
CoolFreeze Function description Scope of delivery Fig. page 4, shows the scope of delivery. Item Quantity Description Cooler Connection cable for 12/24 VDC connection Connection cable for 100 – 240 VAC connection (except CF-18, CF-25) Carrying handle, consisting of: (except CF-18, CF-25) –... -
Page 10: Function Description
CoolFreeze Operation Function description The cooler can chill products, keep them cool as well as freeze them. A low maintenance, CFC-free refrigerant circuit with compressor provides the cooling. The extra strong CFC-free insulation and powerful compressor ensure especially fast cooling. The cooler is designed for mobile use and can be carried by using a folding carrying bracket (CF-18), two recessed grips (CF-25) or two removable carrying handles (CF-35, CF-40, CF-50, CF-60). -
Page 11: Operating And Display Elements
CoolFreeze Operation Operating and display elements CF-25, CF-35, CF-40 Lock for lid: Fig. 1, page 4. CF-18 Operating panel and connection socket (Fig. page 4): Item Description Explanation TEMPERATURE Temperature controller, cooling temperature at the end positions: COLD: +10 ˚C (+50 ˚F) FREEZE: –18 ˚C (0 ˚F) POWER... - Page 12 CoolFreeze Operation CF-25, CF-35, CF-40, CF-50, CF-60 Operating panel (Fig. page 5) Item Description Explanation Switches the cooler on or off when the button is pressed for between one and two seconds POWER Status indication LED lights up green: Compressor is on LED lights up amber: Compressor is off LED flashes amber:...
-
Page 13: Accessories
CoolFreeze Operation Accessories If you want to operate the coolers CF-18 and CF-25 from the 240 V AC mains, be sure to use the rectifier WAECO CoolPower EPS-816 (CF-18 only) or EPS-817 (CF-18 and CF-25). Operation Before initial use Note Before starting your new cooler for the first time, you should clean it... -
Page 14: Energy Saving Tips
CoolFreeze Operation Selecting the temperature units – ºC or ºF CF-25, CF-35, CF-40, CF-50, CF-60 You can switch the temperature display between Celsius and Fahrenheit. This is how to do it: ➤ Switch on the cooler. ➤ Press the “SET” button (Fig. 4, page 5) twice. -
Page 15: Connecting The Cooler
CoolFreeze Operation Connecting the cooler Connecting to a battery (Vehicle or boat) The cooler can be operated with 12 V or 24 V DC. Caution – Danger of damaging the device! Disconnect the cooler and other consumer units from the battery before you connect the battery to a quick charging device. -
Page 16: Using The Battery Monitor
Operation CF-18, CF-25 To operate the coolers CF-18 and CF-25 from the 220–240 V AC mains, use the optional accessory rectifier WAECO CoolPower EPS-816 (CF-18 only) or EPS-817 (CF-18 and CF-25). Using the battery monitor The device is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the device is connected to the on-board 12/24 V supply. -
Page 17: Using The Cooler
CoolFreeze Troubleshooting CF-25, CF-35, CF-40, CF-50, CF-60 ➤ Switch on the cooler. ➤ Press the “SET” button (Fig. 4, page 5) three times. ➤ Use the “UP +” (Fig. 6, page 5) and “DOWN -” (Fig. page 5) buttons to select the battery monitor mode. ➤... - Page 18 Technical Data CoolFreeze CF-18 ➤ Slide the sliding switch (Fig. 4, page 4) to “LOW” or “HIGH” battery protection (See 6.4 “using the battery monitor” for suitable level). ✔ The “POWER” LED is lit green. ✔ The cooler starts cooling the interior. ✔...
-
Page 19: Setting The Temperature
CoolFreeze Setting the temperature CF-18 ➤ Set the cooling temperature with the temperature controller (Fig. 1, page 4). CF-25, CF-35, CF-40, CF-50, CF-60 ➤ Press the “SET” button (Fig. 4, page 5) once. ➤ Use the “UP +” (Fig. 6, page 5) and “DOWN -” (Fig. page 5) buttons to select the cooling temperature. -
Page 20: Replacing The Device Fuse (240V)
CoolFreeze ➤ Take out the contents of the cooling device. ➤ If necessary, place them in another cooling device to keep them cool. ➤ Switch off the device. ➤ Leave the cover open. ➤ Wipe off the defrosted water. 6.10 Replacing the device fuse (240V) Only CF-35, CF-40, CF-50, CF-60 Caution –... -
Page 21: Replacing The Light Bulb
Occasionally clean the inside of the device with a damp cloth. Warranty Our general warranty conditions apply. If the product is defective, please take it to the nearest authorised WAECO repair agent. For warranty repair processing, please present copy of the receipt with purchase date. -
Page 22: Troubleshooting
CoolFreeze Troubleshooting Fault Possible cause Suggested remedy Device does not There is no voltage The ignition must be switched on in function, Power LED present in the 12/24 V most vehicles to apply current to the does not glow. socket (cigarette cigarette lighter. -
Page 23: Disposal
CoolFreeze Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. If you wish to finally dispose of the device, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. - Page 24 CoolFreeze Test/certificates: – 73/23/EEC – Low Voltage Electrical Equipment Directive – 89/336/EEC – EMC Directive – 95/54/EEC Versions and delivery options may vary due to technical modifications. This device is CFC-free. The coolant circuit contains R134a.
- Page 25 CoolFreeze...
- Page 26 CoolFreeze...
- Page 27 CoolFreeze World Headquarters WAECO International GmbH · Hollefeldstraße 63 · D-48282 Emsdetten phone: +49 2572 879-195 fax: +49 2572 879-322 e-mail: info@waeco.de Internet: www.waeco.de Europe Overseas + Middle East WAECO (Schweiz) AG WAECO Italcold SRL WAECO Pacific Pty. Ltd. Riedackerstrasse 7a Via dell’Industria 4/0...
