4.4 Network

Setup (System) > Network
The Network screen displays the current network mode and IP address. It also displays whether or not
the network connection is currently up or down. Use it to change between dynamic and static IP
addressing.
In static IP mode, you can enter values for the IP address, Netmask, and Gateway.
To change or enter a value, touch the white box under the appropriate label.
The DNS Server, NTP server and log file server can be entered whether using DHCP or
Static modes.

4.4.1 SNMP

Setup (System) > Network > SNMP
Agent Mode: If set to disabled, the SNMP is turned off. When enabled the SNMP agent mode may be
set to v1 (SNMPv1) or v2 (SNMPv2) to match the SNMP server requirement.
Manager IP Address: Set this to the IP address to send SNMP trap messages.
roCommunity: This is the access code for SNMP read messages.
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide

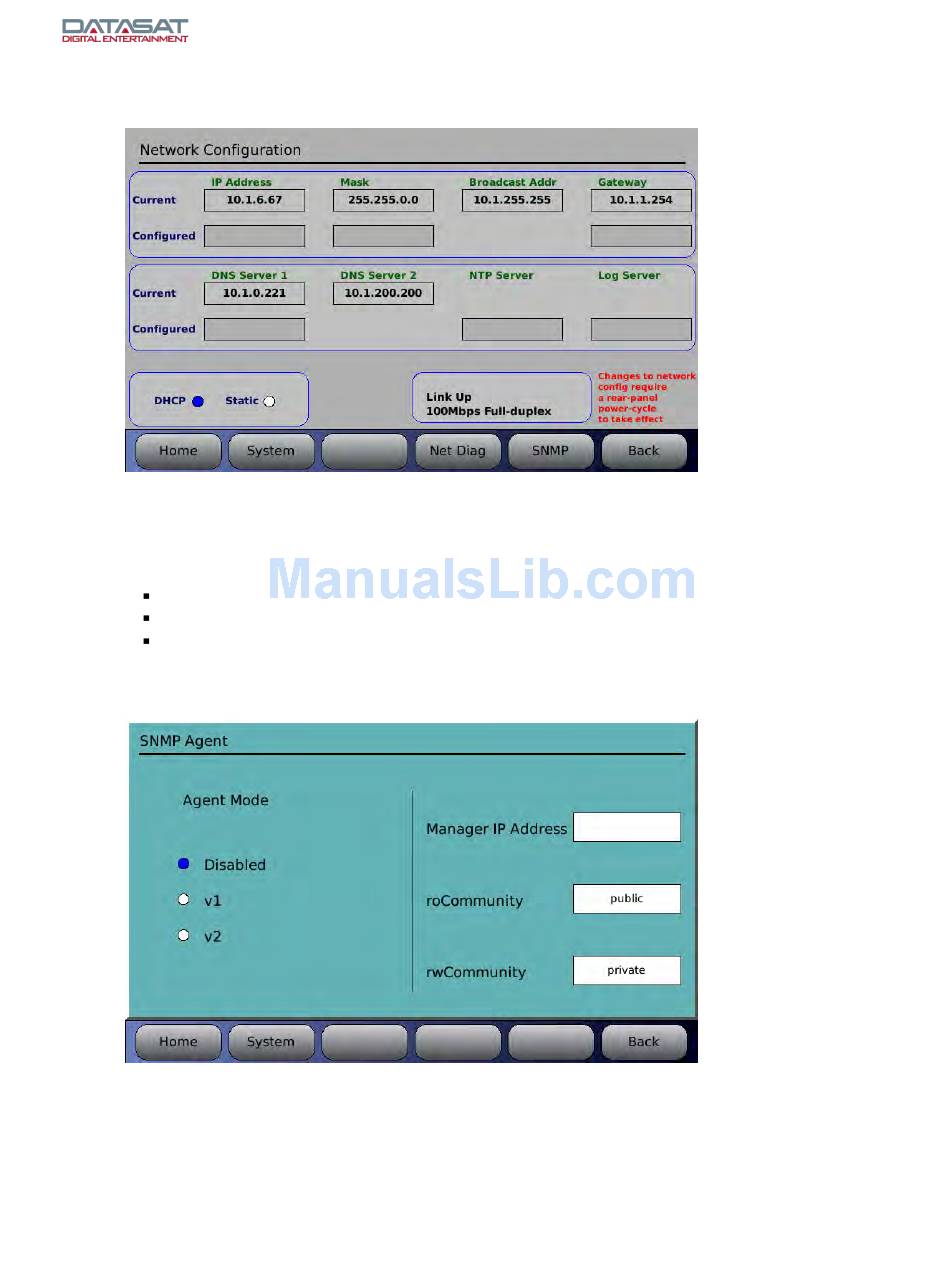

Figure 80. Network Screen
Figure 81. SNMP Setup Screen
Document # 9301H52900 Ver. 1.00
Page 105
