Low Frequency
As shown in Figure 70, set output channel
by touching it and use the volume control to change its value.
The low pass filter should be set to the upper crossover point of the low frequency driver which in this
case (for JBL 2632-T) is 350Hz.
If the manufacturer indicates a particular slope then use it. In this case, JBL didn't list a slope so we
chose 24dB/octave.
Depending on the speaker, you may choose to add a high pass filter to block low frequencies. In this
case, we chose to put a high pass filter to 30Hz, to block frequencies below the lower capabilities of this
driver although this is not deemed necessary by the manufacturer.
Set the crossover ID for easy identification. Here we set the crossover ID for channel 1 output
identifies it as the low frequency output for channel one (1). This is only a label for easy identification
and does not affect the crossover itself.
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide

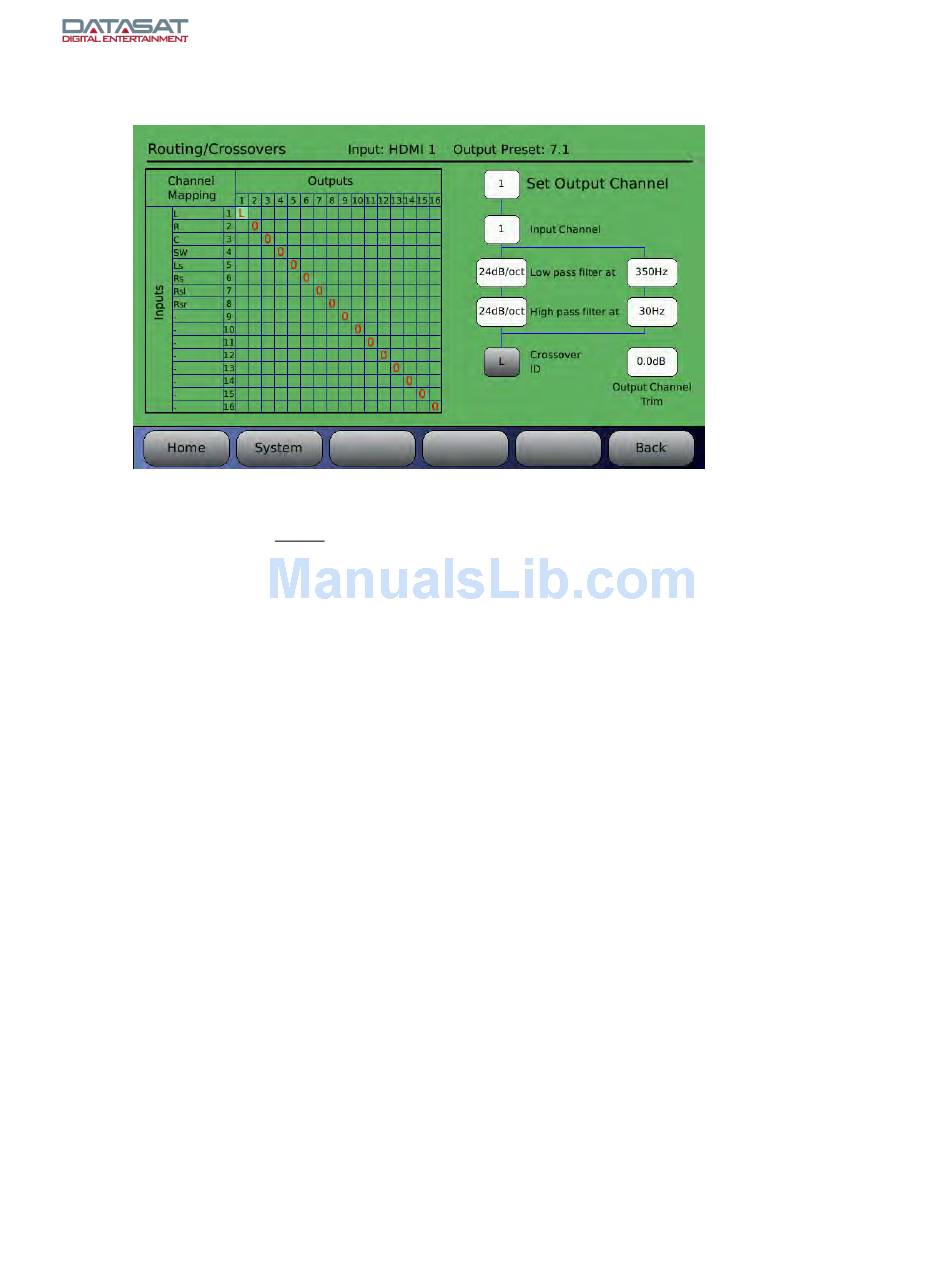

Figure 70. Example – Low Frequency Crossover Setup
1 for the low frequency driver. To make changes select a box
Document # 9301H52900 Ver. 1.00
Page 90
L which
