Mid Frequency
As shown in Figure 71, set output channel
still set to 1 (or left channel, remember, left = channel 1 in the example).
Set the low pass filter to the mid range driver's upper crossover point, which in this case is 1200Hz.
Set the high pass filter to the mid range driver's lower crossover frequency, which in this case is 350Hz.
Set the slope to 24dB/octave.
Set the crossover ID to
High Frequency
RS20i Installation & Operating Guide
RS20i Installation and Operating Guide

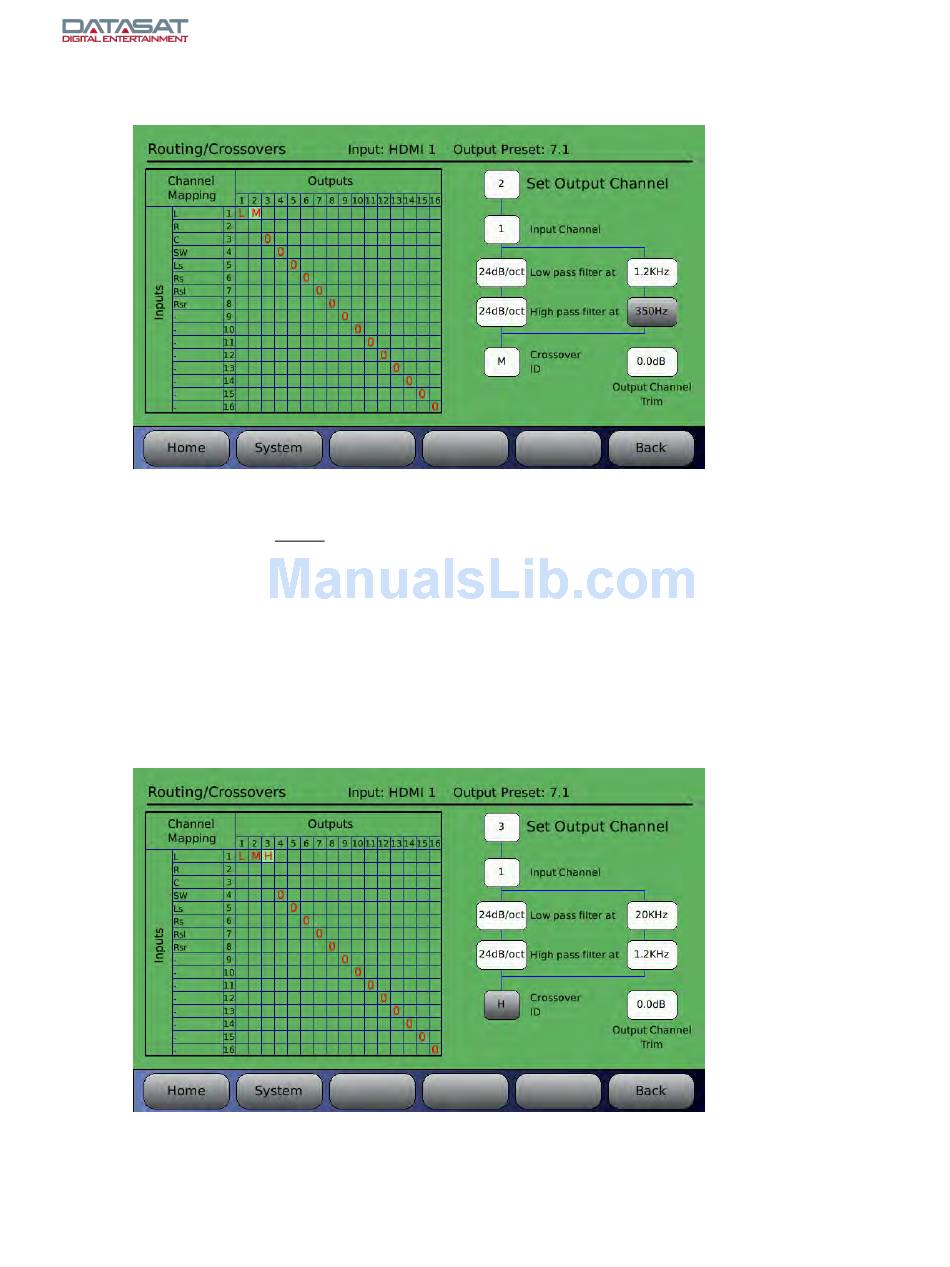

Figure 71. Example – Mid Frequency Crossover Setup
2 for the mid range driver. Make sure the input channel is
M to identify it as the midrange frequency output for channel two (2).
