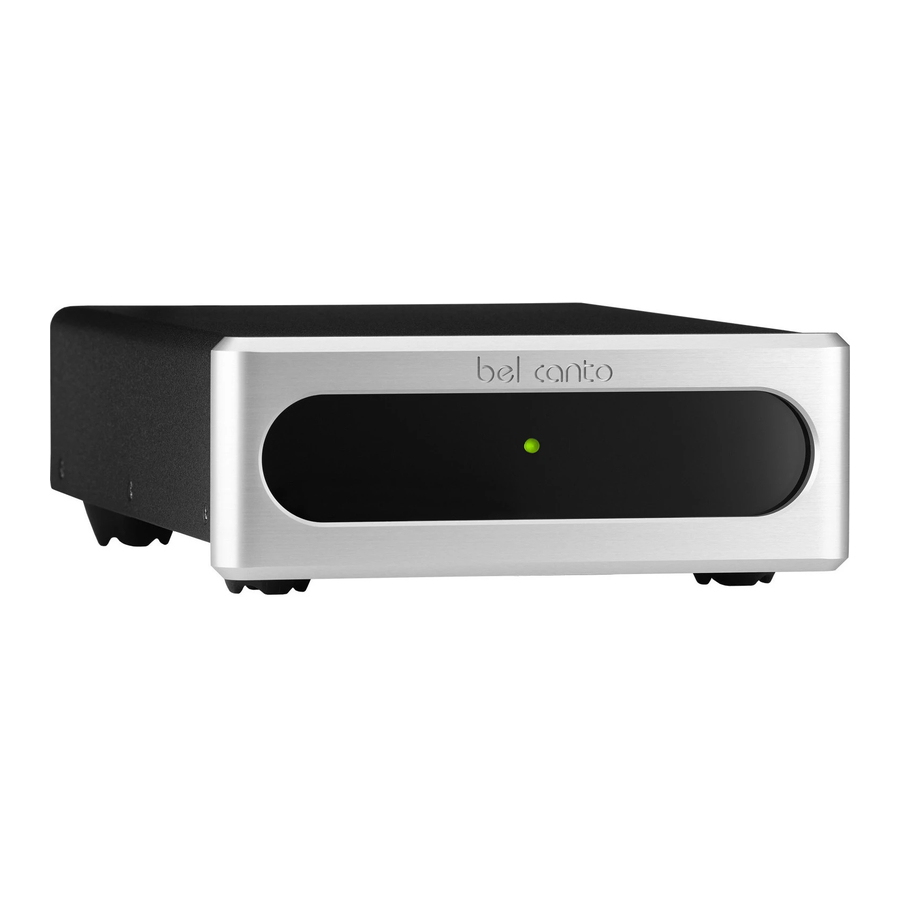

- Page 1 Bel Canto Design PHONO 1 Low Noise Solid State Phono Preamplifier User's Guide and Operating Information Bel Canto Design • 212 Third Avenue North – Suite 345 • Minneapolis, MN 55401 Phone: (612) 317.4550 • Fax: (612) 359.9358 • Email: Aug.2000 Info@BelCantoDesign.com...
- Page 2 Low Noise Solid State Phono1 Preamplifier The Bel Canto Design’s PHONO1 components are selected for high sound quality, precision, technical virtue, and material quality. Bel Canto’s circuit designs and component quality will provide superb performance and years of listening satisfaction.
- Page 3 Bel Canto Design's goal simply to provide the most expressive and powerful musical experience outside of the live event and bring some of the greatest musicians and their performances into the intimacy of your home.
-
Page 4: Design Features
Design Features A classic architecture had been chosen to provide a firm foundation for the RIAA equalization and gain stages of the Phono1. The RIAA uses a robust series EQ architecture with high precision, low noise, high linearity resistors and high precision polypropylene film and foil construction capacitors for optimum signal transfer. - Page 5 For Warranty Coverage complete and mail the Owner's Registration Papers immediately. PHONO Owner's Manual dealer or Bel Canto Design. Save all packing materials as the packing is specially designed to protect the preamplifier for shipping or transporting it. If you lose or...
- Page 6 Gain Settings, Initial Setup, and Placement • Gain Settings Internal jumpers accommodate Moving Magnet, Moving Coil (Low Gain), and Moving Coil (High Gain) settings. The Phono1 is shipped from the factory set for Moving Magnet operation. Gain structure changes are easily made by first removing the two gold nuts from the RCA output jacks using a 5/8”...
-
Page 7: Dip Switch Setting
DIP switch setting BLANK = UP, X = DOWN Cartridge 50 100 500 1 k Load(ohms) 50000 8333 • Input Panel Connections The input connection panel includes one pair of RCA type inputs to be used for connection of your tone-arm wires from your turntable. Ground connection is located on the input panel should only be used if necessary. -
Page 8: Specifications
Specifications RIAA accuracy Into >20K Ohms • 20 Hz-20 kHz +/- 0.25 dB Signal to Noise Ratio • > 75 dB A weighted MM/MC Distortion at 3 Volts RMS out • <0.01% Input configuration and impedance • Adjustable /MC, 47 Kohms/MM Output Options •...
