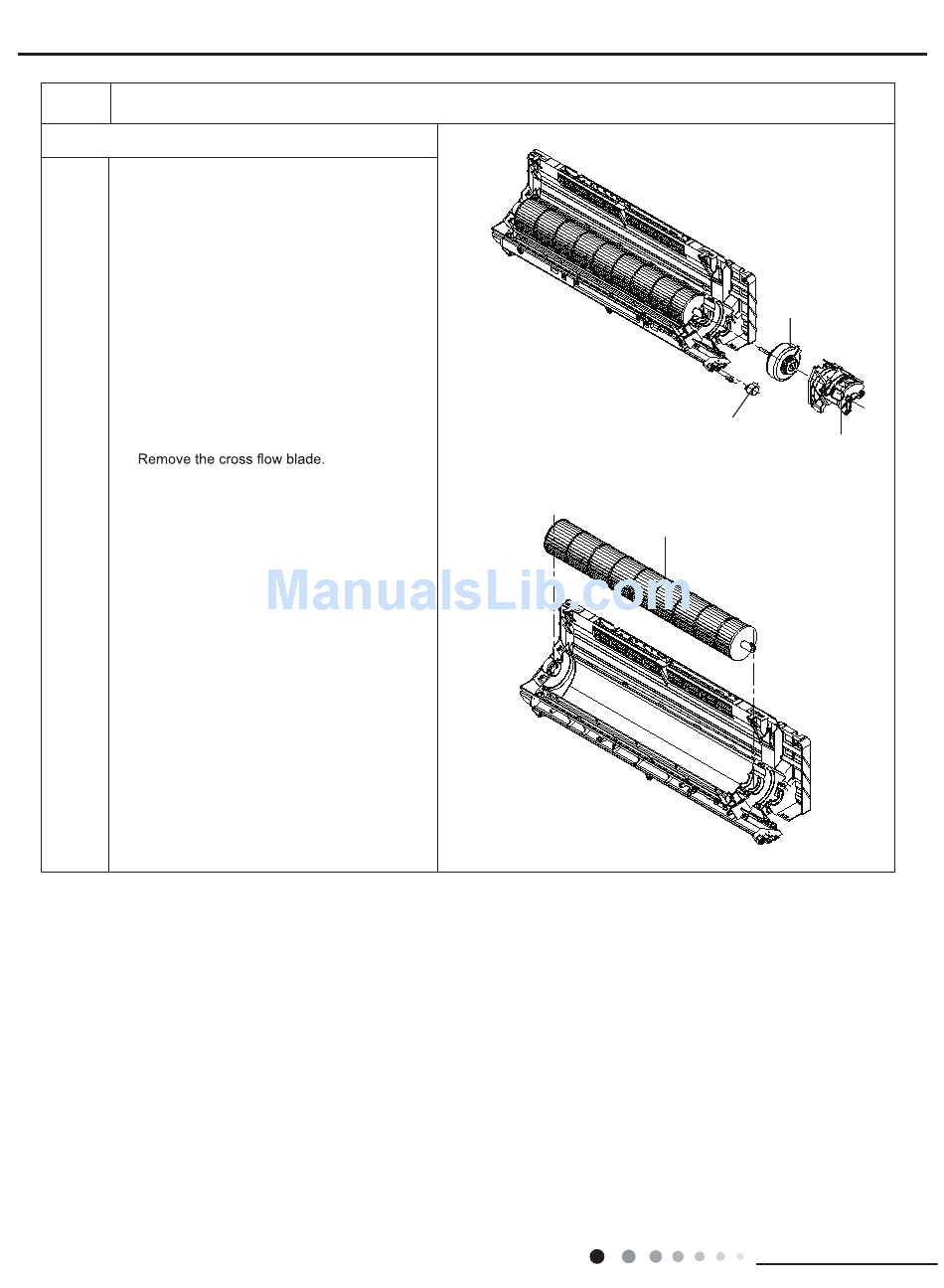

6.Remove motor and cross flow blade
1
Remove screws of step motor and then
remove the motor.
Remove the screw of the motor clamp
and then remove the clamp.
Remove the screws at the joint of the
cross flow blade and the motor. Take
down the motor.
2
58
Procedure
motor
step motor
motor clamp
cross flow blade
