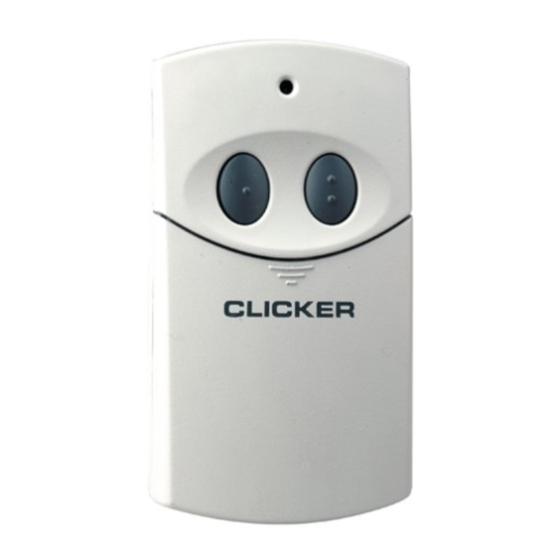

CLICKER
Universal Garage Door Opener Remote Control
Remote Control
The clicker remote can be programmed to operate up to 2 garage door openers or gates,
including different brands. All programming is done using the:
• Brand switch
• Transmitter DIP switch
• Transmit push buttons A and B, and LED indicator
Preparation
Determine the BRAND of the existing garage door opener or handheld remote controls. If all
remote controls are lost, the BRAND is located on the ceiling mounted motor unit or on the
receiver near the flexible wire antenna. Proceed to the SECTION indicated on the BRAND chart
below.
Note: If programming to more than one opener, after programming button "A" refer to brand
chart, and follow the instructions pertaining to the brand you wish to program into button "B".
When the remotes range is diminished, operation is intermittent, or the LED dims, replace the
battery. Memory is not lost when the battery is removed. Note: Dispose of old batteries
properly.
UP Position is ON
DOWN Position is OFF
UP Position is ON
DOWN Position is OFF
Note: Use pen or small screwdriver
to move dip switches.
BRAND
CHART
SECTION I -
SECTION II -
SECTION III -
ON
1 2 3 4
ON
1 2 3 4 5 6 7 8 9
10 1112
Button A
Proceed to appropriate section.
Chamberlain, Sears, LiftMaster,
Master Mechanic, DoIt
Stanley, Multi-code, Linear,
Moore-O-Matic
Genie
Model No. CLT 1
Motor
Unit &
Receiver
Wall Mounted
Control
LED
Button B
Brand Switch
Dip Switch
Battery
Slide battery
door down
& Remove

Advertisement

loading

  Related Manuals for Clicker CLT 1

  Summary of Contents for Clicker CLT 1

  • Page 1 Receiver Wall Mounted Control Remote Control The clicker remote can be programmed to operate up to 2 garage door openers or gates, including different brands. All programming is done using the: • Brand switch • Transmitter DIP switch • Transmit push buttons A and B, and LED indicator Preparation Determine the BRAND of the existing garage door opener or handheld remote controls.
  • Page 2 The Receiver DIP switch has three positions labeled “+”, “0” TYPE 1 2 3 4 6 7 8 9 and “-”. The “0” setting cannot be used with the clicker remote. ✚ RANDOM 2-9 1) Reset switches: 1 to “-” and positions 2 through 9 to a random DO NOT USE setting using “+”...
  • Page 3 SECTION II - Stanley, Multi-Code, Linear, Moore-O-Matic • Determine specific brand and circle above. • Open existing remote to expose code switches. • Set brand mode switches on clicker remote. • Program clicker remote push button. Step 1 STANLEY OFF OFF OFF OFF ➡...
  • Page 4 Control Remoto El control remoto Clicker se puede programar para que funcione hasta con dos abridores de puerta de cochera o portones, incluyendo diversas marcas. Toda la programación se hace usando lo siguiente: • Interruptor de marca •...
  • Page 5 “+”, “0” y “-”. La posición “0” no se puede usar con el control ✚ AL AZAR 2 AL 9 remoto Clicker. 1) Restablezca los interruptores; la posición 1 a “-” y las NO LO USE posiciones de la 2 a la 9 al azar usando “+” y “-”. No use la posición –...
  • Page 6 - Stanley, Multi-Code, Linear, Moore-O-Matic • Encuentre la marca específica y enciérrela en un círculo. • Establezca los interruptores de modo y marca en el control remoto Clicker. • Abra el control remoto existente de manera que los interruptores de código queden expuestos.
