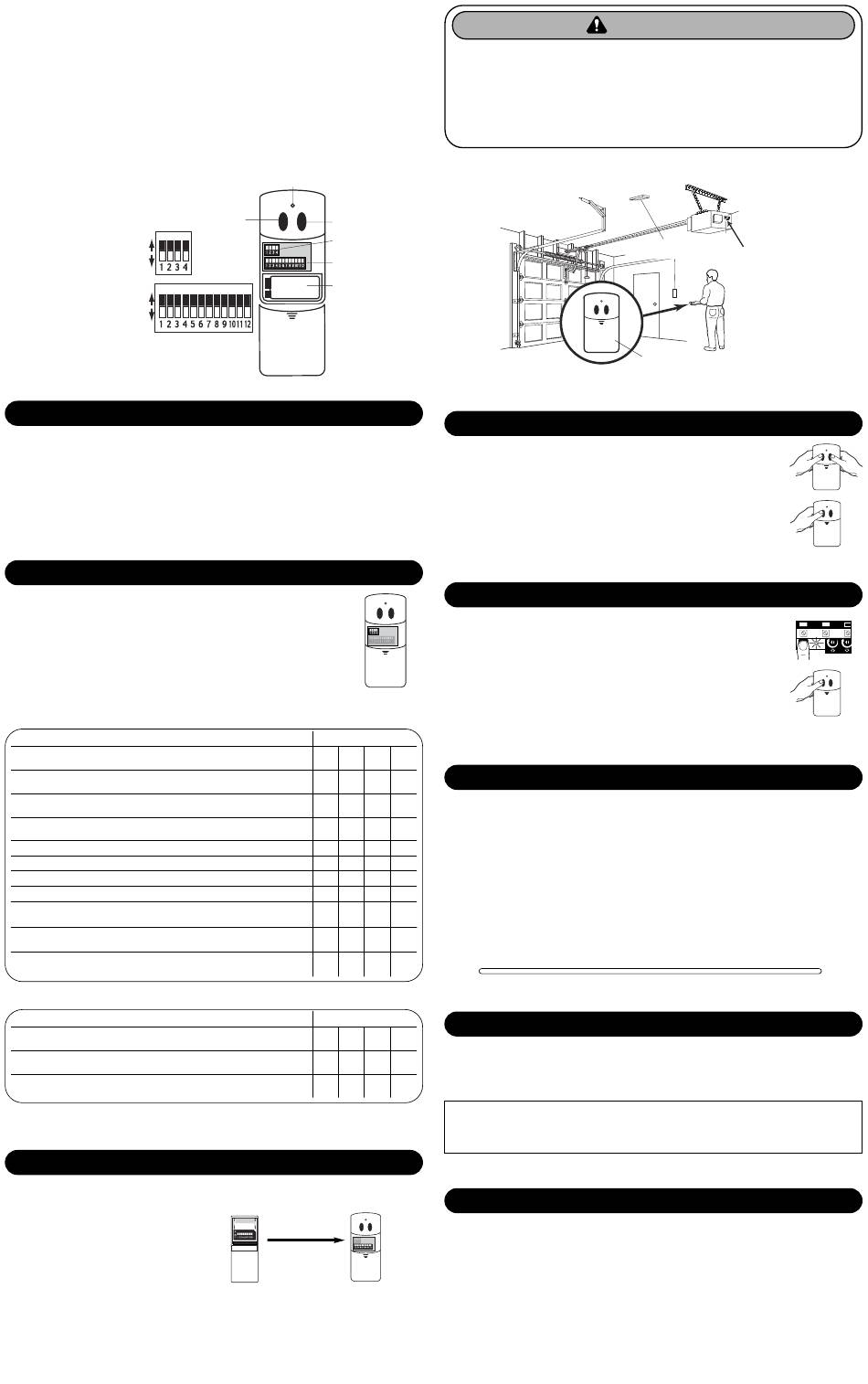

Clicker CLT1CD Manual

CLICKER
MODEL CLT1CD
Universal Garage Door Opener Remote Control
The Clicker remote can be programmed to operate up to 2 garage door openers or
gates, including different brands. All programming is done using the:
• Brand Switches
• Remote Control DIP Switches
• Remote Control Push Buttons, A and B, and LED Indicator
BRAND Switches
ON
UP position is ON
DOWN position is OFF
ON
DIP Switches
UP position is ON
DOWN position is OFF
NOTE: Use pen or small screwdriver
to move dip switches.
1
PREPARATION
Determine the BRAND ID of the existing garage door opener or handheld remote
controls. If all remote controls are lost, the BRAND ID is located on the ceiling
mounted motor unit or on the external receiver near the flexible wire antenna.
Also, determine if your motor unit/receiver system has DIP SWITCHES or a
SMART-LEARN BUTTON. Some models require removing the light lens. For further
information, consult your garage door opener manual.
Proceed to the appropriate section for your type of opener.
2
SET BRAND SWITCH
Using the chart below that pertains to your brand, set brand switches
on Clicker remote.
NOTES:
• Some garage door openers use wire connectors instead of DIP
switches. If wire is present it is "ON." If wire is absent or cut, it is
"OFF." Consult your garage door opener manual for further
information.
• If you have a unit with Yellow, White or Gray Smart-Learn button and
you do not have a remote, set the first 9 dip switches to your choice.
The remaining 10-12 should be set to off. Proceed to step 4.
BRAND ID / SYSTEM
CHAMBERLAIN, SEARS, LIFTMASTER, HOME BUILDER
(7 Code Switch Systems - 315MHz)
CHAMBERLAIN, SEARS, LIFTMASTER, HOME BUILDER
(8 Code Switch Systems - 315MHz)
CHAMBERLAIN, SEARS, LIFTMASTER, HOME BUILDER
(9 Code Switch Systems - 315MHz)
CHAMBERLAIN, SEARS, LIFTMASTER, HOME BUILDER
(Yellow, White or Grey Learn Button - 390MHz)
GENIE
(9 Code Switch Systems - 390MHz)
GENIE
(12 Code Switch Systems - 390MHz)
LINEAR, MOORE-O-MATIC
(8 Code Switch Systems - 310MHz)
STANLEY
(10 Code Switch Systems - 315MHz)
CHAMBERLAIN, SEARS, LIFTMASTER, HOME BUILDER
(9 Code Switch Systems - 390MHz)
CHAMBERLAIN, SEARS, LIFTMASTER, HOME BUILDER
(8 Code Switch Systems - 390MHz)
CHAMBERLAIN, SEARS, LIFTMASTER, HOME BUILDER
(7 Code Switch Systems - 390MHz)
Proceed to step 3.
BRAND ID / SYSTEM
CHAMBERLAIN, SEARS, LIFTMASTER, HOME BUILDER
(Green Learn Button - 390MHz)
CHAMBERLAIN, SEARS, LIFTMASTER, HOME BUILDER
(Orange/Red Learn Button - 390MHz)
CHAMBERLAIN, SEARS, LIFTMASTER, HOME BUILDER
(Purple Learn Button - 315MHz)
Proceed to step 4.
3
SET THE DIP SWITCHES
Open existing remote to expose code switches or obtain the switch settings from your
receiver.
Match the Clicker's DIP switches to already
existing receiver/remote DIP switches. Set
extra DIP switches in the Clicker remote to
the off position.
NOTE: For Chamberlain, Sears, LiftMaster
and Master Mechanic, if the receiver/remote
DIP switch has three positions labeled "+," "0" and "-," do not use the "0" position.
If you have a three button remote, #1 switch must be set to "-" if you would like the
large button to open the door.
114A3279
LED
Button A
Button B
BRAND
Switches
DIP
Switches
Battery
Slide Battery
cover down
to remove
➡
BRAND SWITCHES
ON ON OFF ON
OFF ON OFF ON
ON OFF OFF OFF
ON ON OFF OFF
OFF OFF ON OFF
ON OFF ON OFF
OFF ON OFF OFF
OFF OFF OFF OFF
ON ON OFF OFF
OFF OFF OFF ON
ON OFF OFF ON
BRAND SWITCHES
ON ON ON OFF
OFF ON ON OFF
OFF OFF ON
Existing
remote
Match existing DIP
switches. Remaining
switches are off.
To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door:
• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or
play with remote control transmitters.
• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are
no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to
cross path of moving gate or door.
4
PROGRAMMING THE PUSH BUTTON
Press and hold both buttons until LED begins to flash. When LED
flashes, release both buttons and immediately press the button that
you want to activate the door and release.
Your clicker is now programmed, proceed to step 5 or 6.
• For Chamberlain, Sears, LiftMaster and Master Mechanic if your
garage door opener has a Smart-Learn button, continue on to step 5.
• For all other types continue to step 6.
5
SMART-LEARN BUTTON PROGRAMMING
A. Press and release Smart-Learn button.
B. Press and hold button selected in step 4 for 3 seconds.
NOTE: If you have a Chamberlain, Sears, Liftmaster, Master
Mechanic or Do It motor unit/receiver with a Yellow, White or Gray
Smart-Learn button, it will activate immediately upon successful
programming. If your motor unit/receiver has a Green, Orange, Red
or Purple Smart-Learn button, the light bulb will blink signifying it has
learned the Clicker remote control code.
6
PROGRAMMING IS COMPLETE
Programming is complete. To test, press the button selected to activate garage door.
NOTE: For Genie, Stanley, Linear and Moore-O-Matic if programming does not work,
review brand and dip settings and repeat steps 4 through 6. Also, try reversing the dip
switch settings (Turn ON to OFF and OFF to ON). Brand code switches remain the
same.
NOTE: If programming to more than one motor unit; after successfully programming
button "A," determine the brand of the second garage door opener. Follow the
instructions pertaining to that particular brand to program button "B." Programming a
different code into button "B" will not affect button "A." The codes and brand switch
settings are retained within their specific Clicker button.
REMOTE CONTROL BATTERY
When the remote range is diminished, operation is intermittant, or the LED dims,
replace the battery. Memory is not lost when the battery is removed.
NOTE: Dispose of old batteries properly.
ON
NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of this receiver and/or transmitter are
prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.
Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
TECHNICAL SUPPORT
Clicker
remote
Chamberlain, LiftMaster and Moore-O-Matic are Trademarks of Chamberlain Group. Genie is a Trademark of Overhead Door
Corporation. Linear is a Trademark of Linear Corporation. Sears is a Trademark of Sears & Roebuck. Stanley is a Trademark
of The Stanley Works.
©2006, Clicker Corporation
All Rights Reserved
WARNING
CAUTION
External Ceiling or
DIP Switches or
Wall Mounted Receiver
Smart-Learn Button
Remote
Control
www.clickerproducts.com
1-800-442-1255
Motor Unit
& Receiver
1 2 3
