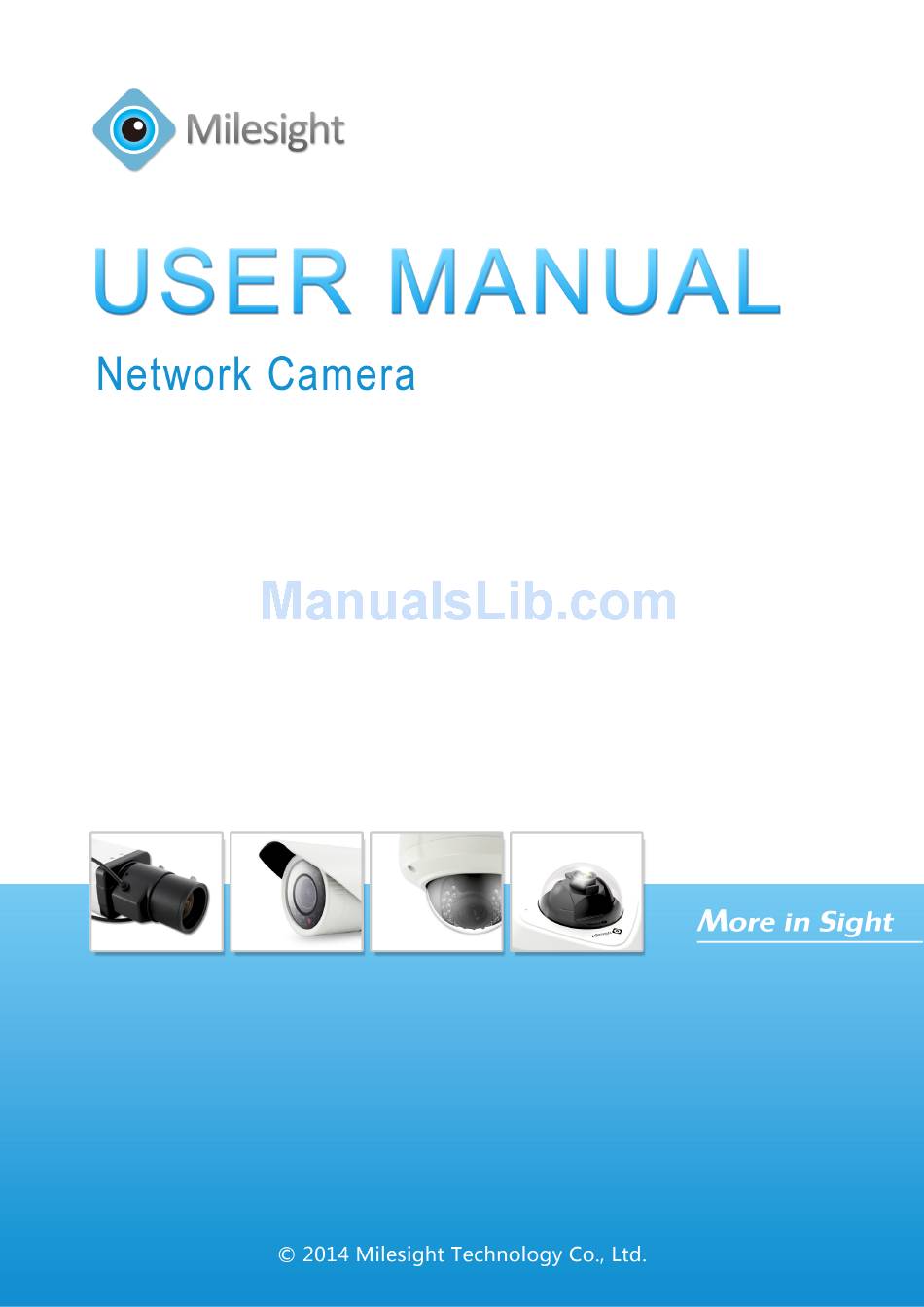

- Page 1 Version: V4.03...
-
Page 2: About This Document
User Manual About this Document This Manual explains how to use and manage Milesight network cameras on your network. Previous experience of networking will be of use when using the products. This manual applies to the following camera models, except where otherwise indicated. - Page 3 User Manual Cautions Please follow these precautions to prevent potential injury or material damage. Warning This installation must be conducted by a qualified service person and should strictly comply with the electrical safety regulations of the local region To avoid risk of fire and electric shock, do keep the product away from rain and moisture ...
-
Page 4: Table Of Contents
3.1.2 Assign An IP Address Manually ................20 3.2 Accessing from the Web Browser ..................23 3.2.1 Access over IE Browser .................... 23 3.3 Accessing from Milesight VMS (Video Management Software) ......... 26 Chapter IV System Operation Guide ....................28 4.1 Live Video ......................... 28 4.2Basic Settings........................ - Page 5 User Manual 4.3.12 Logs ........................46 4.4System ..........................46 4.5Maintenance ........................47 Chapter V Services ........................48...
-
Page 6: Chapter I Product Description
PTZ control and privacy masking, etc. In practical applications, Milesight network camera could either work independently in the local, or be networked to form a powerful safety monitoring system. It is widely used in fields such as finance, education, industrial, civil defense, health care for security’s sake. -
Page 7: Hardware Overview
2) Reset Button: Press ‘Reset’ button for 5 seconds, the device will be restored to factory default. 3) The network camera provides a general I/O terminal block which is used to connect external input/output devices. Please refer to the following instruction for the connection method. - Page 8 Audio Input RS-485 PTZ control Alarm Input/ Output Ethernet Port Figure 1-3 *Note: 1) The network camera provides a general I/O terminal block which is used to connect external input/output devices. Please refer to the following instruction for the connection method.
- Page 9 Audio Input RS-485 PTZ control Alarm Input/ Output Ethernet Port Figure 1-5 *Note: 1) The network camera provides a general I/O terminal block which is used to connect external input/output devices. Please refer to the following instruction for the connection method.
-
Page 10: Hardware Installation
User Manual Figure 1-6 1.4 Hardware Installation 1. Connect the camera to the network and power using one of the methods listed below: 1) Basic connection (without PoE): Step 1: connect the DC 12V end of the power adapter to the power port of the camera and connect the other end to a wall outlet;... - Page 11 User Manual Figure 1-8 Bullet Camera Figure1-9 Dome Camera 2) Power over Ethernet (PoE) connection. PoE will be automatically detected when the Ethernet cable is connected. The camera can either be connected to a PoE-enabled switch or a non-PoE switch. A.
- Page 12 User Manual Figure 1-10Box Camera Figure 1-11 Bullet Camera Figure 1-12 Dome Camera B. Connect the camera to a non-PoE switch using the PoE injector Step 1: Connect the camera to a PoE injector using an Ethernet cable. Step 2: Connect the PoE injector to the non-PoE switch using an Ethernet cable. Step 3: Connect the PoE injector to a power outlet.
- Page 13 User Manual Figure 1-13Box Camera Figure 1-14 Bullet Camera Figure 1-15Dome Camera The power LED will light steady red when the camera is connected to a power source 2. Optionally connect external input/output devices, such as alarm devices. 3. Optionally connect an active speaker or external microphone. 4.
-
Page 14: System Requirements
User Manual 1.5 System Requirements OS: Windows XP/7/Vista/Server 2000/Server 2008(Please use IE browser/Chrome/Firefox to operate) CPU: 1.66GHz or higher Memory: 1G MB or higher Graphic memory: 128MB or more Internet protocol: TCP/IP (IPv4) -
Page 15: Chapter Ii Network Connection
Figure 2-1 Connect the camera to the PC directly 2.1.2 Connect via a Switch or a Router Refer to the following figure to set network camera over the LAN via the switch or router. Figure 2-2 Connect via a Switch or a Router... -
Page 16: Setting The Camera Over The Wan
4. Set port mapping, E.g., 80, 8000 and 554 ports. The steps for port mapping vary depending on different routers. Please call the router manufacturer for assistance with port mapping. 5. Visit the network camera through a web browser or Milesight VMS over the internet. Figure 2-4Connecting the network camera via a router using static IP 2.2.2 Dynamic IP Connection... - Page 17 4. Apply a domain name from a domain name provider. 5. Configure the DDNS settings in the setting interface of the router. 6. Visit the camera via the domain name. Figure 2-5Connecting the network camera via a router using dynamic IP...
-
Page 18: Chapter Iii Accessing The Network Camera
User Manual Chapter III Accessing the Network Camera 3.1 Assigning An IP Address The camera must be assigned an IP address to be accessible. The default IP address of Milesight network camera is 192.168.5.190. The default user name is admin, and password is ms1234. - Page 19 User Manual Figure 3-2Select single camera Figure 3-3Select multiple cameras...
- Page 20 User Manual Step 4: Type the User Name and Password (if they are not default value.) Figure 3-4 Step 5: Change the IP address or other network values, and then click “Modify” button. Figure 3-5...
-
Page 21: Assign An Ip Address Manually
User Manual Step 6: Change the IP address successfully. Figure 3-6 Step 7: By double clicking the selected camera, you can access the camera via web browser directly. The Internet Explorer window will pop up. Figure 3-7 3.1.2 Assign An IP Address Manually If the network segments of the computer and that of the camera are different, please follow the steps to change the IP address: Step 1: Change the IP address of computer to 192.168.5.0 segment. - Page 22 Click “Advanced”, and then click “IP settings”->”IP address”->”Add” (See Figure 3-9). In the popup window, enter an IP address with a same segment with Milesight network camera (e.g.: 192.168.5.61, but please note that this IP address shall not conflict with the IP address on the...
- Page 23 User Manual Figure 3-9 Step.2: Start the browser. In the address bar, enter the default IP address of the camera: http://192.168.5.190. Step.3: Enter the user name and password when the login page appears. Default user name: admin Default password: ms1234...
-
Page 24: Accessing From The Web Browser
User Manual Figure 3-10 Step.4: After login, please select the “Configuration””Basic Settings””Network”. The Network Settings page appears. (Shown as Figure 3-11) Figure 3-11 Step.5: Change the IP address or other network values. Then click “Save” button. Step.6: The change of default IP address is completed. 3.2 Accessing from the Web Browser The camera can be used with the most standard operating systems and browsers. - Page 25 Figure 3-13. Please click 'Finish' and refresh the browser, then you will see the video. Figure 3-13 Note: If IE9or higher version browser is used, it is suggested that the Milesight camera web link should be added as a trusted site. See the instructions as below:...
- Page 26 User Manual Figure 3-14 Step 2: Select “Security””Trusted sites”. Figure 3-15 Step 3: Enter the IP address of the camera in the blank and click “Add”.
-
Page 27: Accessing From Milesight Vms (Video Management Software)
The interface of Milesight VMS is very easy to use, intuitive, with easy access to the most common activities, such as viewing live video, searching through recordings and exporting videos and snapshots. - Page 28 User Manual detailed information about how to use the software, please refer to user manual of Milesight VMS. Figure 3-18...
-
Page 29: Chapter Iv System Operation Guide
User Manual Chapter IV System Operation Guide 4.1 Live Video After logging on the network camera web GUI successfully, user is allowed to view live video as bellow. Figure4-1 Parameter Description Navigation key is used to control the direction. The ○... - Page 30 User Manual Saturation A more vivid scene appears, if a higher level of saturation is chose Default Settings Restore brightness, contrast and saturation to default settings ○ Stream Type Choose the Stream to show on the current video window ○ View Size The size of the current video window ○...
-
Page 31: Basic Settings
User Manual 4.2 Basic Settings 4.2.1 Video OSD (On Screen Display) content and video time can be displayed to rich the video information. Stream parameters can also be set on this page, to adapt to different network environments and demands. Figure4-2 On Screen Display (OSD) Show Video Title... -
Page 32: Image
User Manual Primary Stream Settings Video Codec H.264/MPEG-4/MJPEG available (Main stream only support H.264) Frame Size Options include 5M(2560 × 1920), 3M(2048 × 1536), 1080P(1920 × 1080), 2M(1600 ×1200), 1.3M(1280×960), 720P(1280×720), D1 (704×576) Maximum Frame Rate Maximum refresh frame rate of per second Bit Rate Transmitting bits of data per second Bit Rate Control... - Page 33 User Manual Figure 4-5 General Settings Wide Dynamic Range This function enables the capture and display of both bright and dark areas in the same frame, in a way that there are details in both areas Off Disable WDR function ...
-
Page 34: Audio
User Manual time, then the Day mode and Night mode will switch according to your settings Note: Wide Dynamic Range The function is only applicable for models MS-C23XX, MS-C33XX. Figure 4-6 Advanced Settings Local Display Video Off Switch off the Video ... -
Page 35: 4Network
Get an IP address from the DHCP server automatically fixed IP address IP Address Address used to identify a network camera on the network Subnet Mask It is used to identify the subnet where the network camera is located Default Router The default router address Primary DNS... -
Page 36: Wi-Fi
User Manual HTTPS Port Web GUI log on port via HTTPS, the default is 443 RTSP Port Port to connect Network Camera via RTSP protocol Multicast Group Address Support multicast RTP Size The size of the communication date, the default is 8000, with... -
Page 37: 6Date &Time
This page allows user to configure SIP related parameters. Milesight cameras can be configured as SIP endpoint to call out when alarm trigged; or allow permitted number to call in to check the video if the video IP phone is used. - Page 38 User Manual SIP Settings Figure 4-12 Unregistered/Registered SIP registration status. Display “Unregistered” or “Registered” Enable Start or stop using SIP. Register Status Choose to use Enable mode or Disable mode. Enable mode means to use with are sister account. Disable mode refers to use SIP without resister account, just use the IP address to call.
-
Page 39: 2Upnp
User Manual Alarm Phone List Figure 4-13 Phone Type Phone Number (Call by phone number) & Direct IP Call (Check to accept peer to peer IP call). Phone Number/IP Address Call by phone number or IP address. Remark Name Display name. Duration The time schedule to use SIP. -
Page 40: Ddns
User Manual Figure 4-15 Enable Check the checkbox to enable the UPNP function Name The name of the device when detected online can be edited Type Auto Automatically obtain the corresponding HTTP and RTSP PORT, without any set Manual Need to manually set the appropriate HTTP port and RTSP Port. -
Page 41: 5Ftp
User Manual Figure 4-17 SMTP User Name The sender's name. It is usually the same as the account name Sender Email Address Email address to send video files attached emails Password The password of the sender Server Address SMTP server of the sender Server Port The port of SMTP server Recipient Email Address... -
Page 42: 6Alarm
User Manual 4.3.6 Alarm Figure 4-19 Alarm Event Enable Alarm Check the checkbox to enable alarm feature Trigger Type Motion Detection Trigger alarm when any movement is detected in motion detection monitored area. The image is divided into 4*3 areas, and you can select your preferred areas. -
Page 43: 7Privacy Masking
User Manual Alarm Action Upload Via FTP Upload alarm recording files to the configured FTP server Upload Via SMTP Upload alarm recording files to SMTP with the configured format Save Into SD Card Save alarm recording files into the SD card inserted External Output Output a level signal when an alarm is triggered Play Audio... -
Page 44: Sd Card
User Manual Figure 4-22 4.3.8 SD Card Files will be seen on this page when they are configured to save onto SD card. You can configure time schedules of video recording everyday and save video files to your desired location. Note: Files are visible once SD card is inserted. -
Page 45: Ptz
User Manual SD Card Explorer SD card video files are arranged by date, the each day files will display under the corresponding date, from here you can copy and delete files etc. by the way of access to shared video files, such ftp://192.168.5.190 is consistent with the default user name and password. -
Page 46: Access List
User Manual Figure 4-27 Administrator An administrator can manage all configuration pages of the device. Including change user password, add or delete users (the default user 'admin' cannot be deleted). Operator An operator can manage all configuration pages except the User page. Viewer A viewer can`t change any settings. -
Page 47: Logs
User Manual Enable access list filtering Able to access or restrict access for some IP address Filter type Access or restrict access IPv4 access list The IP address to access or restrict access 4.3.12 Logs The logs contain the information about the time and IP that has accessed the camera through web. -
Page 48: Maintenance
User Manual System Device Name The device name can be customized. It will be seen in file names of video files Product Model The product model of the camera Hardware Version The hardware version of the camera Software Version The software version of the camera can be upgraded Kernal Version The kernel version MAC Address... -
Page 49: Chapter V Services
User Manual Chapter V Services Milesight Technology Co., Ltd provides customers with timely and comprehensive technical support services. End-users can contact your local dealer to obtain technical support. Distributors and resellers can contact directly with Milesight for technical support. Technical Support Mailbox: support@Milesight.com Web: http://www.milesight.com...
Need help?
Do you have a question about the Network camera and is the answer not in the manual?
Questions and answers

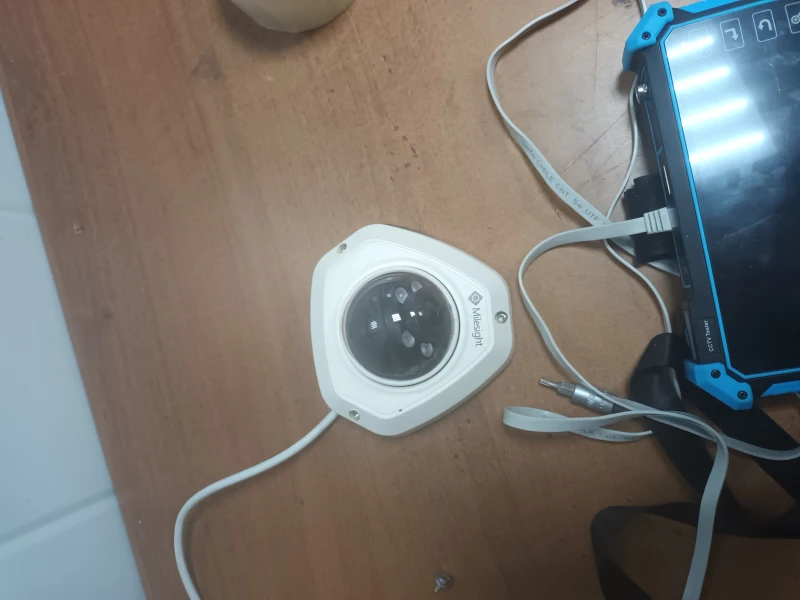

Доброго времени суток! Перестали показывать камеры. Питание идёт, а тестер их не видит. У них есть особенности подключения?
