Summary of Contents for Milesight MS-C3362-V
- Page 1 Version 2.1...
-
Page 2: Table Of Contents
Milesight Technology Co., Ltd Table of Contents 1. Package contents ....................... 2 2. Cautions! ........................... 2 3. System Requirments ......................2 4. Hardware Overview ......................3 4.1 Box Camera ........................3 4.2 IR Bullet Camera ......................4 4.3 Dome Camera ......................5 5. -
Page 3: Package Contents
Milesight Technology Co., Ltd Thank you for purchasing Milesight IP camera. This Guide provides basic instructions on installing and accessing Milesight network camera. For more details, please refer to the User Manual. 1. Package contents Before installation, please verify that all the necessary items are supplied in the gift box as the package contents listed below. -
Page 4: Hardware Overview
Milesight Technology Co., Ltd 4. Hardware Overview 4.1 Box Camera Audio Output Audio Input Alarm Input SD/SDHC Card Slot Alarm Output Antenna for WIFI (Optional) RS-485 PTZ control Power Connector (DC12V) *Error LED Power LED *Reset Button Ethernet Port BNC Video Out... -

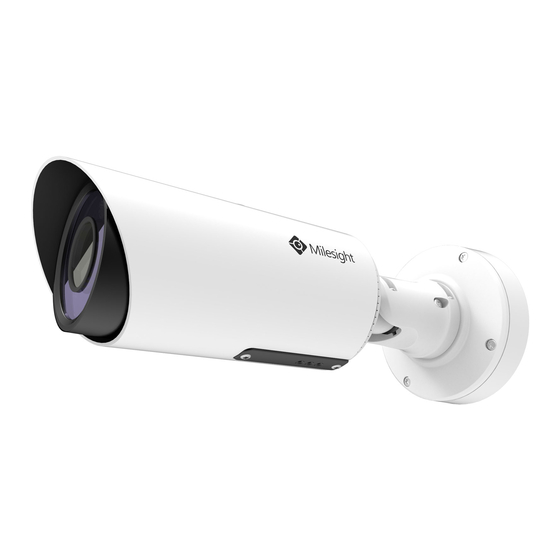

Page 5: Ir Bullet Camera
Milesight Technology Co., Ltd 4.2 IR Bullet Camera IR LED Light Sensor LENs Video Output Power Connector (DC 12V) Audio Output Audio Input RS-485 PTZ control Alarm Input/Output Ethernet Port Figure 4-2 www.milesight.com... -
Page 6: Dome Camera
Milesight Technology Co., Ltd 4.3 Dome Camera Video Output Power Connector (DC 12V) Audio Output Audio Input RS-485 PTZ control Alarm Input/Output Ethernet Port Figure 4-3 5. Hardware Installation 5.1 General Connection 1. Connect the camera to the network and power using one of the methods listed below:... - Page 7 Milesight Technology Co., Ltd Figure 5-1 Box Camera Figure 5-2 Bullet Camera Figure 5-3 Dome Camera www.milesight.com...
- Page 8 Milesight Technology Co., Ltd Power over Ethernet (PoE) connection. PoE will be automatically detected when the Ethernet cable is connected. The camera can either be connected to a PoE-enabled switch or a non-PoE switch. A. Connect the camera to a PoE switch using a single Ethernet cable.
- Page 9 Milesight Technology Co., Ltd B. Connect the camera to a non-PoE switch using the PoE injector Step 1: Connect the camera to a PoE injector using an Ethernet cable. Step 2: Connect the PoE injector to the non-PoE switch using an Ethernet cable.
-
Page 10: Insert The Sd Card
Milesight Technology Co., Ltd 2. Optionally connect external input/output devices, such as alarm devices. 3. Optionally connect an active speaker or external microphone. 4. Optionally connect the camera to a monitor using a BNC cable. 5.2 Insert the SD card Steps: 1. -
Page 11: Lens Adjustment
Milesight Technology Co., Ltd Note: Vari-focal lens bullet camera is using TF card. C. Dome camera Figure 5-12 D. IR Dome camera Figure 5-13 5.3 Lens Adjustment In order to achieve the best possible video quality, please adjust the iris controller, focus controller, or zoom controller (if applicable for the lens installed) to get the best view. - Page 12 Milesight Technology Co., Ltd A. Box camera Figure 5-14 B. Vari-focal lens bullet camera Figure 5-15 C. Dome camera Figure 5-16 www.milesight.com...
-
Page 13: Accessing The Camera
The camera must be assigned an IP address to be accessible. 6.1 Assigning an IP Address The default IP address of milesight network camera is 192.168.5.190. The default user name is admin, and password is ms1234. You can change the IP address of the camera via IPCTools. Please connect the camera in the same LAN of your computer. - Page 14 Milesight Technology Co., Ltd Figure 6-1 Step 3: Select a camera or multiple cameras according to the MAC address. Figure 6-2 Select single camera www.milesight.com...
- Page 15 Milesight Technology Co., Ltd Figure 6-3 Select multiple cameras Step 4: Type the User Name and Password (if they are not default value.) Figure 6-4 Step 5: Change the IP address or other network values, and then click “Modify” button.
- Page 16 Milesight Technology Co., Ltd Figure 6-5 Step 6: Change the IP address successfully. Figure 6-6 Step 7: By double clicking the selected camera, you can access the camera via web browser directly. The Internet Explorer window will pop up. www.milesight.com...
-
Page 17: Accessing From The Web Browser
Milesight Technology Co., Ltd Figure 6-7 6.2 Accessing from the Web Browser The camera can be used with the most standard operating systems and browsers. The recommended browsers are Internet Explorer and Firefox. 6.2.1 Access over IE Browser Launch the IE browser and enter the IP address of the camera. - Page 18 Milesight Technology Co., Ltd Figure 6-9 Note: If IE9 or higher version browser is used, it is suggested that the Milesight camera web link should be added as a trusted site. See the instructions as below: Step 1: Start the IE9 or higher version browser, and select “Tools”select”Internet Options”.
- Page 19 Milesight Technology Co., Ltd Step 3: Select “Security””Trusted sites” Figure 6-11 Step 4: Enter the IP address of the camera in the blank and click “Add”. www.milesight.com...
-
Page 20: Access Over Firefox Browser
Milesight Technology Co., Ltd Figure 6-12 6.2.2 Access over Firefox browser If you want to browse the video via Firefox browser, you must install 'IE Tab' on your Firefox first. Please do as follows: Click 'Tools->Add-ons' and search 'IE Tab' then install. As Figure 6-13. - Page 21 Milesight Technology Co., Ltd Figure 6-14 Access to the camera web GUI as with IE browser. Note: If you change the IP address of the device, please add the new URL in the IE Tab+ Sites Filter. After logging on IP camera`s web GUI successfully, user is allowed to view live video as bellow.
