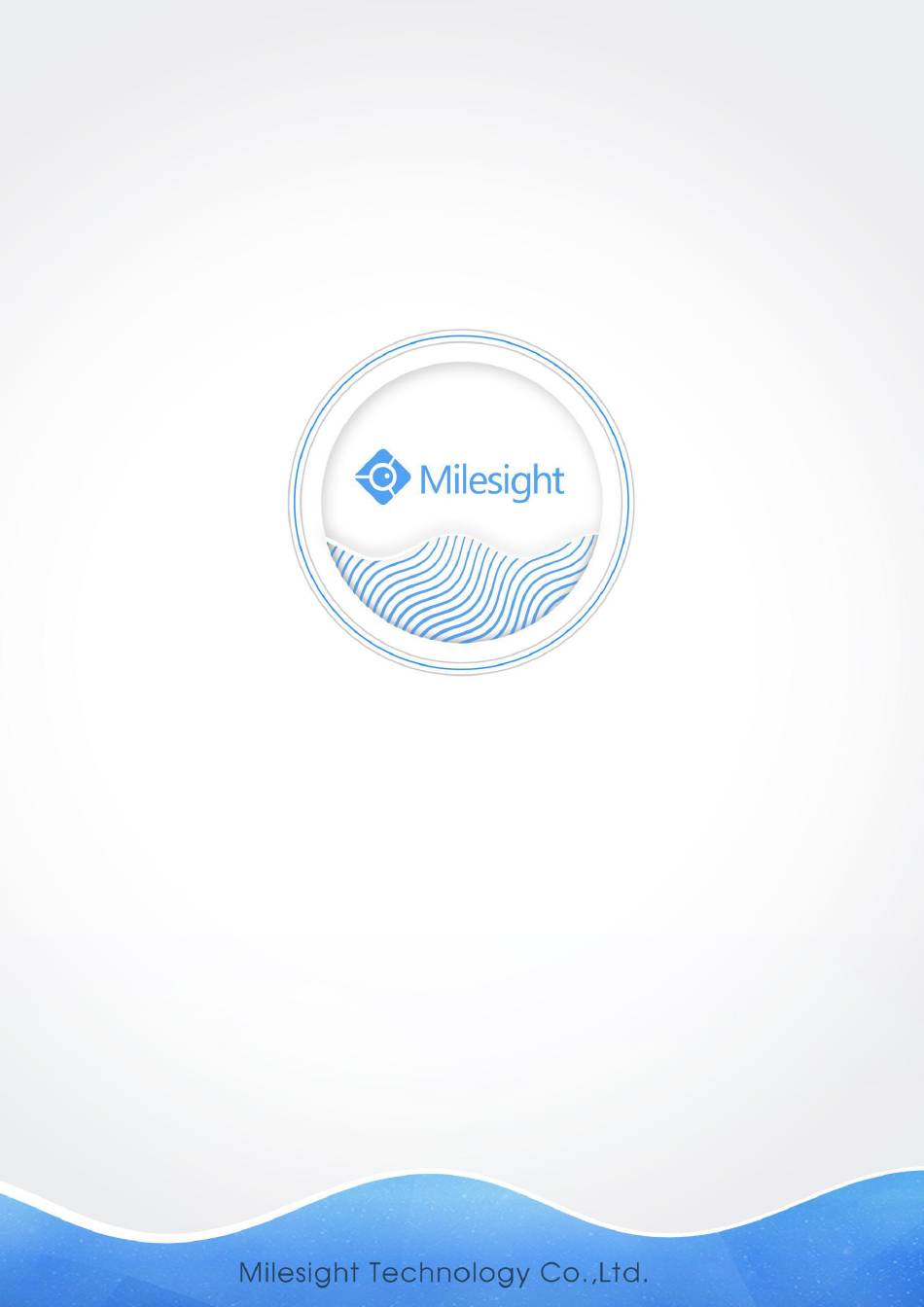

  • Page 1 Network Camera User Manual V7.18...
  • Page 2 Thank you for purchasing our product. If there is any questions or requests, please do not hesitate to contact your dealer. This manual is applicable to the Milesight H.265 Network Camera, series shown as follows, except where otherwise indicated. Milesight H.265 Network Camera...
  • Page 3 Milesight Technology Co., Ltd(Hereinafter referred to as Milesight). Milesight reserves the right to change this manual and the specifications without prior notice. The latest specifications and user documentation for all Milesight products are available on our official website www.milesight.com...
  • Page 4  Source with DC 12V or PoE  Please make sure the plug is firmly inserted into the power socket  When the product is installed on a wall or ceiling, the device should be firmly fixed  If the product does not work properly, please contact your dealer. Never attempt to disassemble the camera by yourself Cautions ...

  • Page 5: Table Of Contents

    3.1.2 Assign An IP Address via Browser ................23 3.2 Accessing from the Web Browser..................26 3.2.1 Access with Plugin ....................... 26 3.2.2 Access without Plugin ....................28 3.3 Accessing from Milesight VMS (Video Management Software)........... 29 Chapter IV System Operation Guide....................30 4.1 Live Video..........................30 4.2 Playback..........................32 4.3 Local Settings.........................
  • Page 6 4.7 System..........................104 4.8 Maintenance........................106 4.8.1 System Maintenance....................106 4.8.2 Auto Reboot.......................107 Chapter V Services..........................107...

  • Page 7: Chapter I Product Description

    Chapter I Product Description 1.1 Product Overview Milesight provides a consistent range of cost-effective and reliable network cameras to fully meet your requirements. Based on embedded Linux operating system, Milesight network cameras could be easily accessed and managed either locally or remotely with great reliability.

  • Page 8: Hardware Overview

    1.3 Hardware Overview 1. IR Mini Dome Network Camera Microphone Reset microSD/SDHC/SDXC Card Slot Power LED Indicator Error LED Indicator Press Button Ethernet Port (PoE) Figure 1-3-2 IR Mini Dome Network Camera Note: 1) Error LED Indicator: Error LED Indicator is on when the device starts up or runs error. 2) Reset Button: Press “Reset”...
  • Page 9 2. Vandal-proof Mini Dome Network Camera IR LEDs Light Sensor Microphone Screw Lens microSD/SDHC/SDXC Ethernet Port (PoE) Card Slot Reset Power and System LED Indicator Figure 1-3-3 Vandal-proof Mini Dome Network Camera Note: 1) Error LED Indicator: Error LED Indicator is on when the device starts up or runs error. 2) Reset Button: Press “Reset”...
  • Page 10 3. Weather-proof Mini Dome Network Camera Figure 1-3-4 Weather-proof Mini Dome Network Camera Note: 1) Reset Button: Press “Reset” button for 5 seconds, then the device will be restored to factory default. 2) Only PoE is available for power supply.
  • Page 11 4. AF Motorized Mini Dome Network Camera Figure 1-3-5 AF Motorized Mini Dome Network Camera Note: 1) Reset Button: Press “Reset” button for 5 seconds, then the device will be restored to factory default. 2) DC 12V and PoE are available for power supply.
  • Page 12 5. Mini Bullet Network Camera Figure 1-3-6 Mini Bullet Network Camera Note: 1) DC 12V(Only for Multi-interface Version) and PoE are available for power supply. 2) Reset Button: Press “Reset” button for 5 seconds, then the device will be restored to factory default.
  • Page 13 6. Vandal-proof Mini Bullet Network Camera Figure 1-3-7 Vandal-proof Mini Bullet Network Camera Note: 1) Only PoE is available for power supply. 2) Reset Button: Press “Reset” button for 5 seconds, then the device will be restored to factory default.
  • Page 14 7. (Vandal-proof) Motorized Mini Bullet Network Camera Ethernet Port (PoE) Figure 1-3-8 (Vandal-proof) Motorized Mini Bullet Network Camera Note: 3) DC 12V and PoE are available for power supply. 4) Reset Button: Press “Reset” button for 5 seconds, then the device will be restored to factory default.
  • Page 15 8. 180°Panoramic Mini Bullet Network Camera Note: 1) PoE is available for power supply. 2) Reset Button: Press “Reset” button for 5 seconds, then the device will be restored to factory default.
  • Page 16 9. 180°Panoramic Mini Dome Network Camera Note: 3) PoE is available for power supply. 4) Reset Button: Press “Reset” button for 5 seconds, then the device will be restored to factory default.
  • Page 17 10. (12X AF) Motorized Pro Bullet Network Camera microSD/SDHC/SDXC Card Slot Reset PTFE Membrane IR LEDs Lens Light Sensor Figure 1-3-9 (12x AF) Motorized Pro Bullet Network Camera Note: 5) DC 12V and PoE are available for power supply. 6) Reset Button: Press “Reset” button for 5 seconds, then the device will be restored to factory default.
  • Page 18 Ethernet Port (PoE) Alarm/Audio DC 12V Figure 1-3-10 Motorized Pro Bullet Network Camera(Version A) Audio In/Out Ethernet Port (PoE) Alarm In/Out DC 12V Figure 1-3-11 Motorized Pro Bullet Network Camera(Version B)
  • Page 19 11. Motorized Pro Dome Network Camera Microphone Lens Light Sensor IR LEDs Reset microSD/SDHC/SDXC Card Slot Figure 1-3-12 Motorized Pro Dome Network Camera Note: 1) Reset Button: Press “Reset” button for 5 seconds, then the device will be restored to factory default.
  • Page 20 DC 12V Alarm In/Out & Audio Out/DC 12V Ethernet Port (PoE) Water-proof Connector Figure 1-3-13 Motorized Pro Dome Network Camera multiple interface Here is one equipped cable for multiple interface usage: Ethernet Port DC 12V (PoE) Alarm In/Out Audio Out Alarm In/Out &...
  • Page 21 12. (LPR) (ABF) Pro Box Network Camera Figure 1-3-15 (ABF) Pro Box Network Camera Note: Reset Button: Press “Reset” button for 5 seconds, then the device will be restored to factory default. DC 12V and PoE are available for power supply.

  • Page 22: How To Connect To Alarm Interface

    1.4 How to Connect to Alarm Interface External interface of camera is as the following, you can refer to the picture to install the external alarm device: PIN1: Alarm Output NC/NO 24V DC 1A PIN2: Alarm Output NC/NO 24V DC 1A PIN3: Alarm Input NC/NO ≤12V PIN4: Alarm Input NC/NO ≤12V 1.5 How to Connect the Water-proof Connector...

  • Page 23: System Requirements

    1.6 System Requirements Operating System: Windows XP/Vista/7/8/10/Server 2000/Server 2008 CPU: 1.66GHz or higher RAM: 1G or higher Graphic memory: 128MB or more Internet protocol: TCP/IP (IPv4/IPv6) Web Browsers: Internet Explorer 8.0 and above version, Mozilla Firefox, Google Chrome and Safari.

  • Page 24: Chapter Ii Network Connection

    Chapter II Network Connection 2.1 Setting the Camera over the LAN Connecting the camera to a switch or a router is the most common connection method. The camera must be assigned an IP address that is compatible with its LAN. 2.1.1 Connect the Camera to the PC Directly In this method, only the computer connected to the camera will be able to view the camera.
  • Page 25 Step5: Configure the DDNS settings in the setting interface of the router; Step6: Visit the camera via the domain name. Figure 2-2 Connect the network camera via a router using dynamic IP...

  • Page 26: Chapter Iii Accessing The Network Camera

    Step2: Start Smart Tools, click the IPC Tools page, then enter the device information, such as IP address, MAC address, Status, Port number, Netmask, and Gateway, then all related Milesight network cameras in the same network that will be displayed. Details are shown as shown below;...
  • Page 27 Step3: Select a camera or multiple cameras according to the MAC addresses; Select single camera Select multiple cameras Step4: If the selected camera shows "Active" in the status bar, you can directly type the User Name and Password (Camera with version lower than 4x.7.0.69 is using admin/ms1234 by default), change the IP address or other network values, and then click “Modify”...
  • Page 28 If the selected camera shows "Inactive" in the status bar(Camera with version V4x.7.0.69 or above), click to set the password when using it for the first time. You can also set the security questions when activating the camera in case that you forget the password(You can reset the password by answering three security questions correctly).

  • Page 29: Assign An Ip Address Via Browser

    Step5: Change the IP address successfully; Step6: By double clicking the selected camera or the browser of interested camera, you can access the camera via web browser directly. The Internet Explorer window will pop up. More usage of Smart Tools, please refer to the Smart Tools User Manual. 3.1.2 Assign An IP Address via Browser If the network segment of the computer and that of the camera are different, please follow the...
  • Page 30 Click “Advanced”, and then click “IP settings”  “IP address”  “Add” (See Figure 3-1-9). In the pop-up window, enter an IP address that in the same segment with Milesight network camera ( e.g. 192.168.5.61, but please note that this IP address shall not conflict with the IP address on the existing network);...
  • Page 31 Step3: If the camera’s firmware version is lower than V4x.7.0.69, it will directly display the login page, enter the user name and password when the LOGIN page appears; Default user name: admin Default password: ms1234 If the camera’s firmware version is V4x.7.0.69 or above, you need to set the password first when using it for the first time.

  • Page 32: Accessing From The Web Browser

    Step5: Change the IP address or other network values. Then click “Save” button; Step6: The change of default IP address is completed. 3.2 Accessing from the Web Browser The camera can be used with the most standard operating systems and browsers. The recommended browsers are Internet Explorer, Firefox, Chrome, Microsoft Edge, Safari.
  • Page 33 If IE9 or higher version browser is used, it is suggested that the Milesight camera web link should be added as a trusted site. See the instructions as follows: Step1: Start the IE9 or higher version browser, and select “Tools” “Internet Options”;...

  • Page 34: Access Without Plugin

    As browser security becomes more and more important, some browsers don’t support installing plugin. In order to normally preview the video on the browser, Milesight upgraded the camera to support Plugin-Free Mode. In Plugin-Free Mode, you can preview the video on the browser without plugin.

  • Page 35: Accessing From Milesight Vms (Video Management Software)

    The interface of Milesight VMS is very easy to use, intuitive, with easy access to the most common activities, such as viewing live video, searching through recordings and exporting videos and snapshots.

  • Page 36: Chapter Iv System Operation Guide

    Chapter IV System Operation Guide 4.1 Live Video After logging in the network camera web GUI successfully, user is allowed to view live video as follows. Table 4-1-1 Description of the buttons Parameter Description Brightness: Adjust the Brightness of the scene Contrast: Adjust the color and light contrast Saturation: Adjust the Saturation of the image.Higher Saturation makes colors appear more "pure"...
  • Page 37 (Chrome version 44 or below); need to install the component to display the view; MJPEG: Support to display the view on Firefox, Safari, Chrome (Chrome version 45 or above); (NOTE: IE choose Web Components mode for default, in this case, it will not show the options) TCP: More reliable connection;...

  • Page 38: Playback

    Adjust iris automatically if check this box （ Only work when your camera is equipped with P-Iris） Start/Stop live view Click to capture the current image and save to the configured path. The default path is Capture C:VMS\+-1\ IMAGE-MANUAL Click to start recording video and save to the configured path.
  • Page 39 Step2: Click the date button, choose the date when date window pops up; Note: 1) The date with bright red means current date; one with a dark red number and white background means weekend day; one with a dark red number and blue background means that the date is selected now.

  • Page 40: Local Settings

    Time Narrow/Expand Start/Stop Recording Snapshot Zoom On/Off Full Screen Note: 1) Drag the progress bar with the mouse to locate the exact playback point. You can also input the time and click to locate the playback point in the Set Playback Time filed. You can also click to zoom out/in the progress bar.
  • Page 41 Primary Stream Settings Record Stream Type (General) Record Stream Type (Event) Secondary Stream Settings Tertiary Stream Settings Table 4-4-1 Description of the buttons Parameters Function Introduction...
  • Page 42 General & Event are available only for Primary Stream. General refers to continuous record video, while Event includes events that can trigger alarms, such as Motion, Exception, LPR and so on. Record Stream Type This item can separately set different bit rate and frame rate for different Recording Stream Types.

  • Page 43: Image

    Set the I-frame interval to 1~120, 50 for the default. This item is optional only if you I-frame Interval select the H.265/H.264. The number must be a multiple of the number of frames. this item is optional only if you selected the Low/Medium/High/Higher are available, JPEG Quality MJPEG...
  • Page 44 There are several parameters such as Exposure Level, Maximum Exposure Time and IR-CUT Interval, etc, associated with this mode Night Mode: Shown in live view based on Night Mode settings Day Mode: Shown in live view based on Day Mode settings Day/Night Mode Auto Mode: Shown in live view based on environment, set the sensitivity for switching Day Mode to Night Mode, or Night Mode to Day Mode...
  • Page 45 This function is only for Pro Dome. If Pro Dome is equipped with a Smoked Dome Smoked Dome Cover Cover, enable this function to display a normal image. Lens distort correct There are two options available, you can select one to meet your need Off: Select the original image of 180°Panoramic Mini Bullet (Only for 180°...
  • Page 46 Defog Mode Better image effect in foggy weather, refers to Figure 4-4-10 Digital Image Stabilisation Decrease the blur and shakiness of the image. Auto Mode, Manual Mode and Schedule Mode are available. Auto Mode: The camera will adjust the brightness according to the light environment automatically;...
  • Page 47 Note: 1) You can customize the schedule to enable/disable the difference White Balance modes. 2) You can customize the schedule to enable/disable the difference exposure modes. 3) You can customize the schedule to enable/disable BLC/WDR/HLC mode. 4) WDR/HLC has higher priority than exposure settings at the same time frame. 5) Defog Image.
  • Page 48 6) HLC Image. Day/Night Mode...
  • Page 49 Table 4-4-4 Description of the buttons Parameters Function Introduction Exposure Level Level 0~10 are available to meet your need Minimum Shutter is the same as Maximum Exposure Time. Set the minimum Minimum Shutter Shutter to 1~1/100000 Maximum Shutter is the same as Minimum Exposure Time. Set the maximum Maximum Shutter Shutter to 1~1/100000 IR-CUT Latency...
  • Page 50 Video Title Customize the OSD content Text Position OSD display position on the image Show Timestamp Check the checkbox to display date on the image Date Position Date display position on the image Date Format The format of date Copy to Other Streams Copy the settings to other streams Privacy Mask Privacy mask enables to cover certain areas on the live video to prevent certain spots in the...

  • Page 51: Audio

    By using Milesight ROI technology, more than 50% of bit rate can be saved and therefore less bandwidth demanded and the storage usage reduced. So according to this, you can set a small bit rate for high resolution.
  • Page 52 Table 4-4-8 Description of the buttons Parameters Function Introduction Enable Audio Check on the check box to enable audio feature Denoise: Set it as On/Off. When you set the function on, the noise detected can be filtered Encoding: G.711-ULaw, G.711-ALaw, AAC LC, G.722 and G.726 are available Audio Bit Rate: The function is available only for AAC LC, and supports up to Audio Input 256kbps...

  • Page 53: Network

    Auto Gain Control: This function is only for H.265 series, improve the quality of Audio Output audio Output Volume: Adjust volume of output Note: 1) 32KHz, 44.1KHz and 48KHz are available for 5MP, 4K camera models and 2MP@120fps camera models. You can upload up to 5 audio files manually to Flash or SD Card on the Audio web page and you can also edit the audio file’s name when upload.
  • Page 54 Parameters Function Introduction Get IPv4 Address Get an IP address from the DHCP server automatically Automatically IPv4 Address: An address that used to identify a network camera on the network IPv4 Subnet Mask: It is used to identify the subnet where the network camera is located IPv4 Default Gateway: The default router address Preferred DNS Server: The DNS Server translates the domain name to IP...
  • Page 55 HTTP Enable Start or stop using HTTP HTTP Port Web GUI login port, the default is 80, the same with ONVIF port HTTPS Enable Start or stop using HTTPS HTTPS Port Web GUI login port via HTTPS, the default is 443 HTTP Settings Upload and set the SSL certificate .
  • Page 56 Multicast Group Support multicast function Address QoS DSCP The valid value range of the DSCP is 0-63. RTSP URL are as below: Stream Main Stream rtsp://username:password@IP:port/main Secondary Stream rtsp://username:password@IP:port/sub Tertiary Stream rtsp://username:password@IP:port/third Note: 1) Get the format of RTSP URL by clicking “ ”on the right side of RTSP Port.
  • Page 57 IP address and update your domain information dynamically. You need to register an account from a provider. You can choose “ddns.milesight.com” as provider for DDNS. After enabling it, you can access the device via the URL “http://ddns.milesight.com/MAC address” .
  • Page 58 Host name DDNS name enabled in the account Note: 1）Please do the Port Forwarding of HTTP Port and RTSP Port before you use Milesight DDNS. 2）Make sure that the internal and the external port number of RTSP are the same. Email Alarm video files can be sent to specific mail account through SMTP server.
  • Page 59 Recipient Email Email address to receive video files Address1 Recipient Email Email address to receive video files Address2 Encryption Check the checkbox to enable SSL or TLS if it is required by the SMTP server. Alarm video files can be sent to specific FTP server. You must configure the FTP settings correctly before using it.
  • Page 60 Choose IP Address/ Device Name/ Date as the folder name of Child Directory, or Child Directory customize the folder name. If the storage path is more than two levels, enter Multilevel FTP storage path Multilevel Folder Name here manually. Alarm Action File Name Choose the default(YYYY-MM-DD) or customize the alarm action file name.
  • Page 61 Note: 1) The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes after rebooting the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (e.g. DynDns.com). 2) The user name and password should be assigned by your ISP.
  • Page 62 The version of SNMP, please select the version of your SNMP software. SNMP v1: Provide no security SNMP v1/2/3 SNMP v2: Require password for access SNMP v3: Provide encryption and the HTTPS protocol must be enabled Write Community Input the name of Write Community Read Community Input the name of Read Community Read Security Name...
  • Page 63 24hrs to activate the account for using live function. 2) For RTMP, since G.711 is not available for YouTube, so you can only play video from Milesight Network Camera with H.264 video coding and AAC audio coding on YouTube.

  • Page 64: Date&Time

    4.4.5 Date&Time Current System Time Current date&time of the system Set the System Time Table 4-4-17 Description of the buttons Parameters Function Introduction Time Zone Choose a time zone for your location Daylight Saving time Enable the daylight saving time NTP server Input the address of NTP server NTP Sync...

  • Page 65: Advanced Settings

    4.5 Advanced Settings 4.5.1 Alarm Motion Detection Step1: Check the checkbox to enable the motion detection; Step2: Set motion region; Table 4-5-1 Description of the buttons Parameters Function Introduction Enable Motion Check the checkbox to enable Motion Detection function Detection Normal and Compatible are available for the option.
  • Page 66 Step3: Set motion detection schedule; Step4: Set alarm action; Table 4-5-2 Description of the buttons Parameters Function Introduction Save Into Storage Save alarm recording files into SD Card or NAS Upload Via FTP Upload the recording files via FTP Upload Via SMTP Upload the files via SMTP If the camera equips with External Output, you can enable the action after External Output...
  • Page 67 Support to pop up the alarm news to specified HTTP URL. Note: HTTP Notification 1) Three HTTP notifications at most can be added to the same event. 2) HTTP Notification supports Basic & Digest authentication NOTE: The HTTP notification function is just one way for camera to send messages to VMS Software. And it's the VMS that defines what the messages mean and decides what to do after receiving this kind of messages.
  • Page 68 this URL format is exactly supported by Digifort VMS, so we can set as above to our cameras and get it work well. Step3: choose use motion detection by external notification; Step4: If successful, you can see the device icon turns yellow in the Surveillance when the camera is under Motion Detection Alarm;...
  • Page 69 External Output Action Length of time an alarm lasts, this cannot be edited unless you enable the Time External Output on the Alarm Action firstly. Set the audio schedule to trigger different audio files and action times in Audio Action Settings different time, which is corresponded to alarm action.
  • Page 70 The meaning of items please refer to table 4-5-2 and 4-5-3, here will not repeat again. External Input...
  • Page 71 The meaning of items please refer to table 4-5-2 and 4-5-3, here will not repeat again. External Output...
  • Page 72 Please set the Normal Status firstly, when the Current Status is different with Normal Status, it will lead to the alarm. Exception Table 4-5-4 Description of the buttons Parameters Function Introduction Network Disconnected, IP Address Conflicted, Record Failed, SD Card Full, SD Alarm Type Card Uninitialized, SD Card Error and No SD Card are available Check the checkbox to enable the alarm type you selected...

  • Page 73: Storage

    Save Into Storage: Save alarm recording files into SD Card Upload Via Email: Upload alarm recording files via email. This option is available for Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error and No SD Card External Output: If the camera equips with External Output, you can enable the Alarm Action action after configuring the trigger duration Play Audio: If the camera equips with Speaker, you can enable the action after...
  • Page 74 Mount/UnMount Mount/Dismount SD card Enable cyclic storage, when the free disk space reach at a certain value, it will Delete automatically delete the files at certain percentage according to your settings The network disk should be available within the network and properly configured to store the recorded files, etc.
  • Page 75 Table 4-5-7 Description of the buttons Parameters Function Introduction Enable/Disable Recycle Storage, if you enable this option, it will delete the files Enable Recycle Storage when the free disk space reach a certain value. Pre-record Reserve the record time before alarm, 0~10 sec Schedule Settings Click the Edit button to edit record schedule Note:...
  • Page 76 Enable Time Snapshot: Check the checkbox to enable the Timing Snapshot function Interval: Set the snapshots interval, input the number and choose the unit(millisecond, second, minute, hour, day) Save Into Storage: Save the snapshots into SD card or NAS, and choose the file name to add time suffix or overwrite the base file name.

  • Page 77: Security

    4.5.3 Security User Table 4-5-9 Description of the buttons Parameters Function Introduction Allow anonymous viewing: Check the checkbox to enable visit from whom Manage Privilege doesn’t have account of the device Click “Edit” button to set three security questions for your camera. In case that Security Question you forget the password, you can click “Forget Password”...
  • Page 78 reset the password by answering three security questions correctly. There are twelve default questions below, you can also customize the security questions. Click “Add” button, it will display Account Management page. You can add an account to the camera by entering Admin Password, User Level, User Name, New Password, Confirm, and edit user privilege by clicking .
  • Page 79 questions in case of forgetting the password, which is more convenient for users. Access List Table 4-5-10 Description of the buttons Parameters Function Introduction Maximum number of concurrent streaming: Select the maximum number of General Settings concurrent streaming. Options include No Limit, 1~9 Rule: Single, Network and Range are available IP access list IP address: Input the address to get the access to the device...

  • Page 80: Sip

    Internet Protocol(IP) networks. This page allows user to configure SIP related parameters. Milesight cameras can be configured as SIP endpoint to call out when alarm triggered; or allow permitted number to call in to check the video if the video IP phone is used.
  • Page 81 Table 4-5-12 Description of the buttons Parameters Function Introduction Unregistered/ SIP registration status. Display “Unregistered” or “Registered” Registered Enable Start or stop using SIP Choose to use Enable mode or Disable mode. Enable mode means to use SIP with Register Mode register account.
  • Page 82 Alarm Phone List Table 4-5-13 Description of the buttons Parameters Function Introduction Phone Number(Call by phone number) & Direct IP Call(Check to accept peer to Phone Type peer IP call). To Phone Number/ Call by phone number or IP address. IP Address Remark Name Display name.

  • Page 83: Vca

    Number Filter 4.5.5 VCA Smart Event uses Milesight Video Content Analysis technology. This technical capability is used in a wide range of domains including entertainment, health-care, retail, automotive, transport, home automation, safety and security. Milesight VCA provides advanced, accurate smart video analysis for Milesight network cameras.
  • Page 84 Step5: Set alarm settings. Advanced Motion Detection Different from traditional motion detection, Milesight advanced motion detection can filter out “noise” such as lighting changes, natural tree movements, etc. When an object moves in the selected area, it will trigger alarm.
  • Page 85 Note: The sensitivity can be configured to detect various movement according to different requirements. When the level of sensitivity is low, slight movement won’t trigger the alarm. Tamper Detection Tamper Detection is used to detect possible tampering like the camera being unfocused, obstructed or moved.
  • Page 86 Step7: Set alarm settings. Note: Milesight allows to set up to four lines at a time. There are three direction modes to choose for triggering alarm. “A→B” means when there is any object crossing the line from the “A” side to the “B”...
  • Page 87 Step1: Set minimum loitering time; Step2: Set loitering detection region; Step3: Set detection schedule; Step4: Set alarm action; Step5: Set alarm settings. Note: After setting minimum loitering time from 3s to 1800s, any objects loitering in the selected area over the minimum loitering time will trigger the alarm. Human Detection Human detection is used for figuring out whether an object is a human or not.
  • Page 88 Step1: Set detection line; Step2: Set detection schedule; Step3: Set counting OSD; The OSD of the people counting support automatic zeroing; Step4: Click “Edit” to check the counting logs, the data log can be exported to FTP/ SMTP/ Storage automatically as an Excel spreadsheet according to the time interval and range you set; Step5: Set alarm trigger.
  • Page 89 2. Object Left/Removed is optional, if you need this function, please contact Milesight sales first. Settings Milesight VCA provides the primary setting for the whole VCA functions. “Minimum Size” is to set the whether an object is big enough to trigger other settings. The frame you draw on the screen...
  • Page 90 take effect. Maximum Size means opposite, the frame you draw on the screen stands for that only if the object size is smaller than the frame, the settings for other VCA functions will take effect. Table 4-5-15 Description of the buttons Parameters Function Introduction Process FPS...

  • Page 91: Face Detection(Optional)

    4.5.6 Face Detection(Optional) The face detection function can detect the face appearing in the drawn area and support to upload the face screenshot to NAS, FTP, SMTP, HTTP Notification, etc. Face Detection is optional for Motorized Pro Dome, ABF Pro Box and Motorized Pro Bullet Network Camera.
  • Page 92 Quality Priority: In this mode, it will push a face screenshot of best quality when the face is detected. Timeliness Priority: In this mode, it will push a face screenshot in the shortest time when the face is detected. Customize: In this mode, you can customize some detect conditions, including Snapshot Interval, Oblique Face Angle Limit, Pitching Face Angle Limit, Side Face Angle Limit, Blur Limit.

  • Page 93: Heat Map(Optional)

    It will push information to some third-party devices or softwares that are compatible with ours. Inf ormation can be pushed by TCP. Step6: It will detect the face in the live view according to the region and conditions you set. If you check the "Show Tracks"...
  • Page 94 Camera and the dewarping view of 180° Panoramic Mini Bullet Network Camera and 180° Panoramic Mini Dome Network Camera. (2) Please upgrade the camera to V43.7.0.75 or above to use Heat Map function. (3) Only allowed to view reports within 7 days without a SD card or NAS. Heat Map Step 1: After log in the web, go to “Advanced Settings“→...
  • Page 95 Step 3: Schedule Settings. You can draw the schedule by clicking “Edit” button. And then click “Save” or “Reset” after finishing setting. Report The results will be displayed on “Report” interface.
  • Page 96 Step 1: Select Main Heat Map Type. [Space Heat Map]: Space Heat Map will be presented as a picture with different color. Different colors represent different heat values. Red represents the highest and blue represents the lowest. [Time Heat Map]: Time heat map will be presented as a line chart to show the heat at different times.
  • Page 97 Time Heat Map Step 5: Click the "Auto Export" button to pop up the Heat Map Report Settings as shown below. Set Export Type. User can check Space Heat Map or Time Heat Map or both. When either Space Heat Map or Time Heat Map is checked, the gray item becomes editable as shown below;...
  • Page 98 Set Time. User can choose the time of day to export the heat map automatically, click the calendar icon to pop up the following Quick Selection; Set Export Time Range. Day (Choose Everyday) Day (Choose Week) Set the destination path of the automatically exported report. The report can be exported to FTP/Email/Storage automatically as the form of an Excel spreadsheet or a picture according to the day, time and export time range you set.

  • Page 99: Logs

    If the current Space Heat Map is generated, it will be saved as a png image. If the current Time Heat Map is generated, it will be saved as a csv form. 4.5.8 Logs The logs contain the information about the time and IP that has accessed the camera through web. Table 4-5-18 Description of the buttons Parameters Function Introduction...

  • Page 100: Lpr(Optional)

    Input the number of logs’ page 4.6 LPR(Optional) 4.6.1 Live Video Milesight LPR Camera supports professional LPR Live View interface , it can show the real-time license plate recognition results and display the snapshots of detected license plates ,which realizes a stand-alone LPR solution.
  • Page 101 LPR1, LPR2 and LPR3. LPR1 is for Asian regions, LPR2 is for European regions and the former Soviet Union and LPR3 is for Korea. For more information, please refer to Milesight-Troubleshooting-LPR setting-LPR1, Milesight-Troubleshooting-LPR setting-LPR2, Milesight-Troubleshooting-LPR setting-Korea. General Step1: Enter the license and click Save. When the License Status changes to Valid, the camera can start detecting the license plates.
  • Page 102 License Generated by camera’s information (Only for LPR2 and LPR3) License Status and Invalid. Show present license status, including Valid (Only for LPR2 and LPR3) Resolution of the stream for LPR analysis, including 1920*1280, 1280*720, Processing Resolution 640*360, 320*176. Country/ Region Select country/ region to detect the license plate.
  • Page 103 Delete All Click the "Delete All" button to delete all the added areas. Step4: Schedule Settings. You can draw the schedule by clicking Edit button. Step5: Set Detection Settings and LPR Message Post Settings. Table 4-6-2 Description of the buttons Parameters Function Introduction Always: in this mode, camera will always detect license plates.
  • Page 104 Set the time interval for repeatedly reading license plates to effectively avoid Repeat Plate Checktime duplicate identification of parking vehicles. You can set Repeat Plate Checktime from 0 to 60min or 0 to 60000ms. Check Region(Only for LPR2), ROI_ID, Direction or All to enable Feature Feature Identification Identification, it will display the corresponding information on the Smart Search interface.
  • Page 105 Table 4-6-3 Description of the buttons Parameters Function Introduction Select the license plate type as black or white, enter the license plate, click the Add License Plate “Add” button, the license plate will be added successfully. You can add a csv form with the license plate you want to add, click the "Browse"...
  • Page 106 Step1: Check the checkbox to enable Black List Mode. Step2: Schedule Settings. You can draw the schedule by clicking Edit button. Step3: Set alarm action. Step4: Set alarm settings. After that, when a license plate marked as “black” is detected, the camera will respond accordingly to your settings.
  • Page 107 Step1: Check the checkbox to enable White List Mode. Step2: Schedule Settings. You can draw the schedule by clicking Edit button. Step3: Set alarm action. Step4: Set alarm settings. After that, when a license plate marked as “White” is detected, the camera will respond accordingly to your settings.
  • Page 108 Step1: Check the checkbox to enable Visitor Mode. Step2: Schedule Settings. You can draw the schedule by clicking Edit button. Step3: Set alarm action. Step4: Set alarm settings. After that, when a license plate that is not marked as "Black" or "White" is detected, the camera will respond accordingly to your settings.

  • Page 109: Smart Search

    4.6.3 Smart Search The real-time detection results will be displayed on the right side of Smart Search page, including detected time, live screenshot, and license plate. Step1: Select Plate Type or directly enter the license plate number and then select Start Time and End Time.

  • Page 110: System

    Step3: Click the "Export" or “Export All” button to export the desired files in the current list to a local folder. Step4: Click the "Auto Export" button to automatically export the logs to FTP, SMTP or Storage. 4.7 System All information about the hardware and software of the camera can be checked on this page.
  • Page 111 Table 4-7-1 Description of the buttons Parameters Function Introduction Device Name The device name can be customized. It will be seen in file names of video files Product Model The product model of the camera Hardware Version The hardware version of the camera Software Version The software version of the camera can be upgraded MAC Address...

  • Page 112: Maintenance

    4.8 Maintenance 4.8.1 System Maintenance Table 4-8-1 Description of the buttons Parameters Function Introduction Software Version: The software version of the camera. Local Upgrade: Click the “Browse” button and select the upgrading file, then click the “Upgrade” button to upgrade. After the system reboots successfully, the update is done.

  • Page 113: Auto Reboot

    Chapter V Services Milesight Technology Co., Ltd provides customers with timely and comprehensive technical support services. End-users can contact your local dealer to obtain technical support. Distributors and resellers can contact directly with Milesight for technical support.
  • Page 114 TEL: +82-2-839-3335 Add: 925, Anyang SK V1 Center, LS-ro 116beon-gil, Dongan-gu, Anyang-si, Korea MILESIGHT CHINA TEL: +86-592-5922772 Add: No.23 Wanghai Road,2nd Software Park, Xiamen, China Milesight Better Inside, More in Sight...
