    4.3 Vandal-proof Mini Dome Network Camera..............4 4.4 Wi-Fi Mini Cube Network Camera..................5 4.5 Mini Bullet Network Camera.................... 6 4.6 Remote Focus&Zoom Mini Bullet Network Camera............7 4.7 Pro Bullet Network Camera....................8 4.8 Pro Dome Network Camera....................10 4.9 Mini PTZ Bullet Network Camera................... 12 4.10 Speed Dome Network Camera..................

  • Page 5: Package Contents

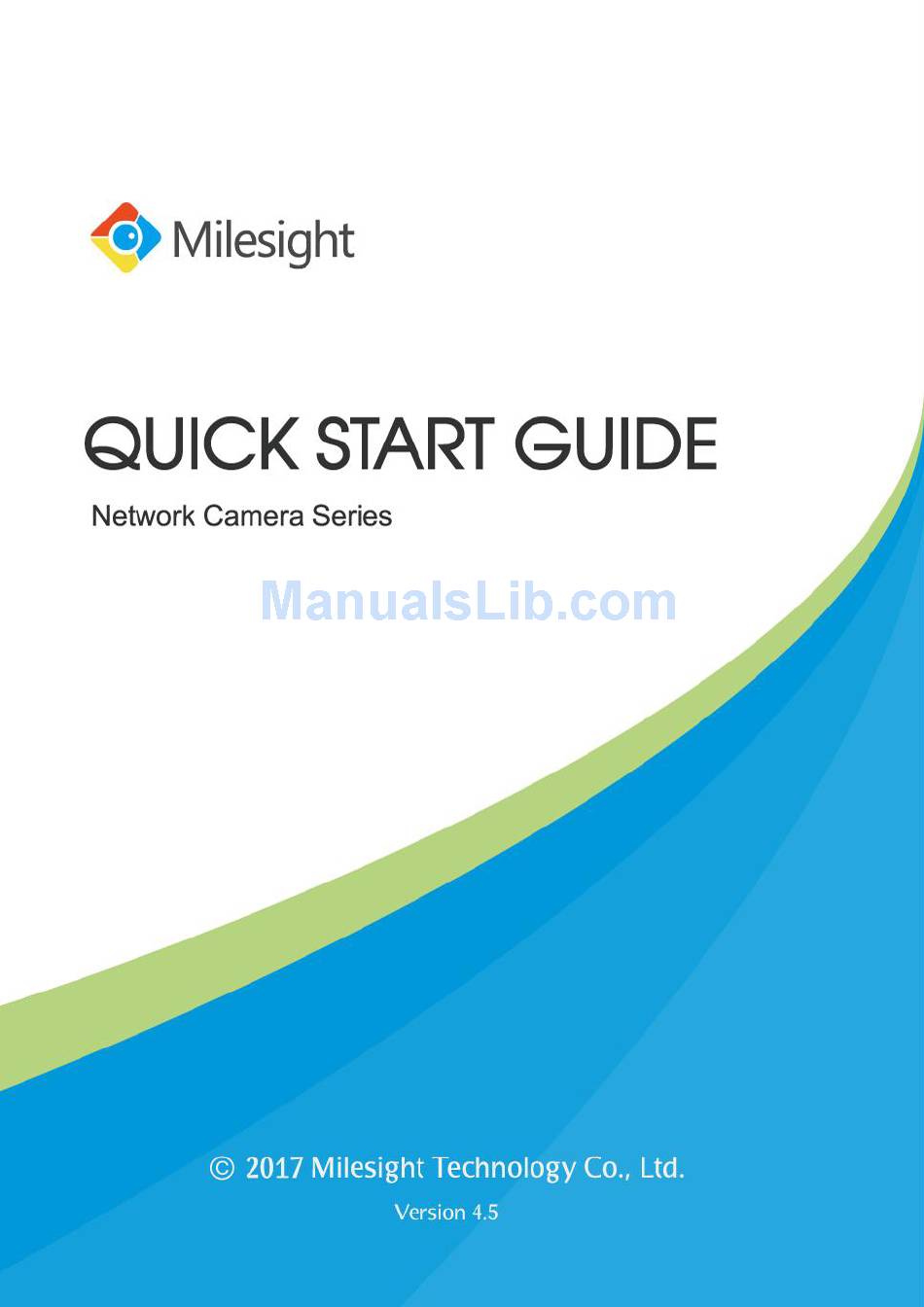

    Quick Start Guide Thank you for purchasing Milesight Network Camera. This Guide provides basic instructions on installing and accessing Milesight Network Camera. For more details, please refer to the User Manual. 1. Package Contents Before installation, please verify that all the necessary items are supplied in the gift box as the package contents listed below.

  • Page 6: Hardware Overview

    Quick Start Guide 4. Hardware Overview 4.1 Mini Dome Network Camera Figure 4-1 Mini Dome Network Camera Note: 1) Error LED Indicator: Error LED Indicator is on when the device starts up or runs error; 2) Reset Button: Press “Reset” button for 5 seconds, the device will be restored to factory default;...

  • Page 7: Ir Mini Dome Network Camera

    Quick Start Guide 4.2 IR Mini Dome Network Camera Figure 4-2 IR Mini Dome Network Camera Note: 1) Reset Button: Press “Reset” button for 5 seconds, the device will be restored to factory default; 2) Only PoE is available for power supply.

  • Page 8: Vandal-Proof Mini Dome Network Camera

    Quick Start Guide 4.3 Vandal-proof Mini Dome Network Camera Figure 4-3 Vandal-proof Mini Dome Network Camera Note: 1) Error LED Indicator: Error LED Indicator is on when the device starts up or runs error; 2) Reset Button: Press “Reset” button for 5 seconds, the device will be restored to factory default;...

  • Page 9: Wi-Fi Mini Cube Network Camera

    DC 12V Ethernet Port(PoE) Alarm Input/Output WPS/Reset Button Figure 4-4 Wi-Fi Mini Cube Network Camera Note: 1) SIP Button: Trigger alarm via SIP calling. After this button is pressed, the camera will call the SIP Phone; 2) WPS Button: Press this button, and then press the WPS button on your router to set up wireless connection automatically;...

  • Page 10: Mini Bullet Network Camera

    Quick Start Guide 4.5 Mini Bullet Network Camera Figure 4-5 Mini Bullet Network Camera Note: 1) Only PoE is available for power supply; 2) Reset Button: Press “Reset” button for 5 seconds, the device will be restored to factory default.

  • Page 11: Remote Focus&Zoom Mini Bullet Network Camera

    Quick Start Guide 4.6 Remote Focus&Zoom Mini Bullet Network Camera Figure 4-6 Remote Focus&Zoom Mini Bullet Network Camera Note: 1) DC 12V and PoE are available for power supply; 2) Reset Button: Press “Reset” button for 5 seconds, the device will be restored to factory default.

  • Page 12: Pro Bullet Network Camera

    Quick Start Guide 4.7 Pro Bullet Network Camera Figure 4-7 Pro Bullet Network Camera Note: 1) There are two versions for Pro Bullet: the interface’s pictures are as following; DC 12V and PoE are available for power supply; Reset Button: Press “Reset” button for 5 seconds, the device will be restored to factory default.
  • Page 13 Quick Start Guide Figure 4-8 Pro Bullet Network Camera(Version A) Figure 4-8 Pro Bullet Network Camera(Version B) www.milesight.com...

  • Page 14: Pro Dome Network Camera

    Quick Start Guide 4.8 Pro Dome Network Camera Note: Reset Button: Press “Reset” button for 5 seconds, the device will be restored to factory default. www.milesight.com...
  • Page 15 Quick Start Guide Figure 4-9 Pro Dome Network Camera multiple interface Here is one equipped cable for multiple interface usage: Figure 4-10 Pro Dome Network Camera multiple interface cable www.milesight.com...

  • Page 16: Mini Ptz Bullet Network Camera

    Quick Start Guide 4.9 Mini PTZ Bullet Network Camera Figure 4-11 Mini PTZ Bullet Network Camera Note: 1) Only DC 12V is available for power supply. www.milesight.com...

  • Page 17: Speed Dome Network Camera

    Quick Start Guide 4.10 Speed Dome Network Camera Figure 4-12 Speed Dome Network Camera Note: 1) DC 12V and AC 24V are available for power supply; 2) Built-in SD card slot can be seen after removing the 4 screws and open the front panel.

  • Page 18: Hardware Installation

    Quick Start Guide 5. Hardware Installation 5.1 Mini Dome Network Camera Step1: Remove the dome cover; Step2: Secure the screws; Step3: Connect and route an Ethernet cable through the ceiling or wall; www.milesight.com...

  • Page 19: Ir Mini Dome Network Camera

    Quick Start Guide Step4: Adjust the lens angle and focus; Step5: Attach the dome cover; 5.2 IR Mini Dome Network Camera Step1: Remove the dome cover; www.milesight.com...
  • Page 20 Quick Start Guide Step2: Secure the screws to wall or bracket, please notice to get the cable through the bracket firstly; Step3: Connect and route an Ethernet cable; www.milesight.com...
  • Page 21 Quick Start Guide Step4: Attach the dome cover; Step5: Adjust the lens angle and focus; www.milesight.com...

  • Page 22: Vandal-Proof Mini Dome Network Camera

    Quick Start Guide 5.3 Vandal-proof Mini Dome Network Camera Step1: Remove the dome cover; Step2: Secure the screws to the wall or bracket; www.milesight.com...
  • Page 23 Quick Start Guide Step3: Connect and route an Ethernet cable; Step4: Loosen the screw and adjust the lens angle and focus then screw it tight again; www.milesight.com...

  • Page 24: Wi-Fi Mini Cube Network Camera

    Quick Start Guide Step5: Attach the dome cover; 5.4 Wi-Fi Mini Cube Network Camera Step1: Mount the cube camera to the ceiling or wall, or place the cube camera horizontally; www.milesight.com...
  • Page 25 Quick Start Guide Step2: Connect the power adapter and Ethernet cable; Step3: Adjust the shooting direction; www.milesight.com...

  • Page 26: Mini Bullet Network Camera

    Quick Start Guide 5.5 Mini Bullet Network Camera Step1: Loosen the waterproof connector, and then remove the rubber seal, and the waterproof connector; Step2: Loosen and open the rear cover; Step3: Install a Micro SD/SDHC/SDXC card, connect an Ethernet cable and pass it through the rubber seal;...
  • Page 27 Quick Start Guide Step7: Mount the camera to the ceiling or wall; Step8: Adjust the shooting direction; www.milesight.com...

  • Page 28: Pro Bullet Network Camera

    Quick Start Guide Note: 1) The upper cover of the Mini Bullet Network Camera could only be moved forward for 5mm at most to ensure better field of view; 2) It will be much easier to remove the rubber seal with a screwdriver when tearing down the camera.
  • Page 29 Step2: Pass the Ethernet cable through the rear cover and fasten the rear cover to the ceiling or wall; Step3: Remove tension disc and get your cables through the rubber plug, fix the tension disc again then connect the cables correctly; www.milesight.com...

  • Page 30: Pro Dome Network Camera

    4 plum flower head screws; Step5: Adjust the shooting direction; 5.7 Pro Dome Network Camera Step1: Fix a sticker in the position where you want to install your camera. Install the supplied bracket on the ceiling or wall, secure the screws;...
  • Page 31 Quick Start Guide Step2: Connect an Ethernet and pass it through the rubber seal; Step3: Rotate the camera unit according to the direction shown in the picture, and then attach the camera unit to the bracket with the supplied screws; www.milesight.com...
  • Page 32 Step4: Connect and route an Ethernet cable and the power source through the ceiling or wall, then attach the camera unit to the bracket; Step5: Loosen the camera head fixing screw. Adjust the camera to turn the lens in the desired direction. Tighten the camera head fixing screw to fix the camera; www.milesight.com...
  • Page 33 Quick Start Guide Step6: Attach the dome cover and please place the raised position to align to the hole as the following pictures, then screw it tight; www.milesight.com...

  • Page 34: Mini Ptz Bullet Network Camera

    Quick Start Guide 5.8 Mini PTZ Bullet Network Camera Step1: Fix a sticker in the position where you want to install your camera; Step2: Pass the Ethernet cable through the rear cover and fasten the rear cover to the ceiling or wall;...
  • Page 35 Step6: If you need to use the SD card with the camera, please remove the screw of the top cover and pull out the cover, then loosen the screws to get access to the SD card slot. After inserting SD card, screw the screws again. www.milesight.com...

  • Page 36: Speed Dome Network Camera

    Quick Start Guide 5.9 Speed Dome Network Camera Step1: Check the wall condition, ensure that there is sufficient strength to avoid flaking, the wall should be able to bear the weight eight times larger than the camera’s; Step2: Use the wall hanging holder to mark the holes. Drill 4 holes on the wall;...

  • Page 37: How To Connect To Alarm Interface

    Step2: Insert the rubber ring into the screw bolt; Step3: Connect the screw nut to the screw bolt; Step4: Place the O-Ring on the network port connector; Step5: Connect to RJ45 and the connector of camera, screw the screw bolt and the connector; www.milesight.com...

  • Page 38: Accessing The Milesight Network Camera

    The camera must be assigned an IP address to be accessible. 8.1 Assigning an IP Address The Network Camera must be assigned an IP address to be accessible. The default IP address of Milesight Network Camera is 192.168.5.190. The default user name is “admin”, and password is “ms1234”.
  • Page 39 Quick Start Guide Step3: Select a camera or multiple cameras according to the MAC addresses; Figure 8-2 Select single camera Figure 8-3 Select multiple cameras www.milesight.com...
  • Page 40 Quick Start Guide Step4: Type the User Name and Password (if they are not the default value.); Figure 8-4 Step5: Change the IP address or other network values, and then click “Modify” button; Figure 8-5 www.milesight.com...
  • Page 41 If the network segment of the computer and that of the camera are different, please follow the steps to change the IP address: Step1: Change the IP address of computer to 192.168.5.0 segment, here are two ways as following: www.milesight.com...
  • Page 42 “Advanced”, and then click “IP settings”→ “IP address”→ “Add” (See Figure 8-9). In the pop-up window, enter an IP address that in the same segment with Milesight Network Camera ( e.g. 192.168.5.61, but please note that this IP address shall not conflict with the IP address on the existing network);...
  • Page 43 Step4: After login, please select “Configuration”→“Basic Settings”→ “Network”→ “TCP/IP”. The Network Settings page appears (Shown as following Figure); Figure 8-11 Step5: Change the IP address or other network values. Then click “Save” button; Step6: The change of default IP address is completed. www.milesight.com...

  • Page 44: Accessing From The Web Browser

    Figure 8-12. Please click “Finish” and refresh the browser, then you will see the video. Figure 8-13 If IE9 or higher version browser is used, it is suggested that the Milesight camera web link should be added as a trusted site. See the instructions as follows:...
  • Page 45 Quick Start Guide Step1: Start the IE9 or higher version browser, and select “Tools”→ “Internet Options”; Figure8-14 Step2: Select “Security” to “Trusted”; Figure 8-15 Step3: Enter the IP address of the camera in the blank and click “Add”; Figure 8-16 www.milesight.com...
  • Page 46 Quick Start Guide Step4: Enter the IP address. After logging on Network Camera’s web GUI successfully, user is allowed to view live video as follows. Figure 8-17 www.milesight.com...

  • Page 47: Thank You For Choosing Milesight Product

    Quick Start Guide Network Camera Megapixel Network camera for video surveillance Thank you for choosing Milesight product © 2017 Milesight Technology Co., Ltd. www.milesight.com...
