Page 2: Table Of Contents
Milesight Technology Co., Ltd Table of Contents 1. Package contents ....................... 2 2. Cautions ..........................2 3. System Requirments ......................2 4. Hardware Overview ......................3 4.1 Box Camera ........................3 4.2 IR Bullet Camera ......................4 4.3 Dome Camera ......................5 4.4 Mini Dome Camera ...................... -
Page 3: Package Contents
Milesight Technology Co., Ltd Thank you for purchasing Milesight IP camera. This Guide provides basic instructions on installing and accessing Milesight network camera. For more details, please refer to the User Manual. 1. Package contents Before installation, please verify that all the necessary items are supplied in the gift box as the package contents listed below. -
Page 4: Hardware Overview
Milesight Technology Co., Ltd 4. Hardware Overview 4.1 Box Camera Audio Output Audio Input Alarm Input SD/SDHC Card Slot Alarm Output Antenna for WIFI (Optional) RS-485 PTZ control Power Connector (DC12V) *Error LED Power LED *Reset Button Ethernet Port BNC Video Out... -
Page 5: Ir Bullet Camera

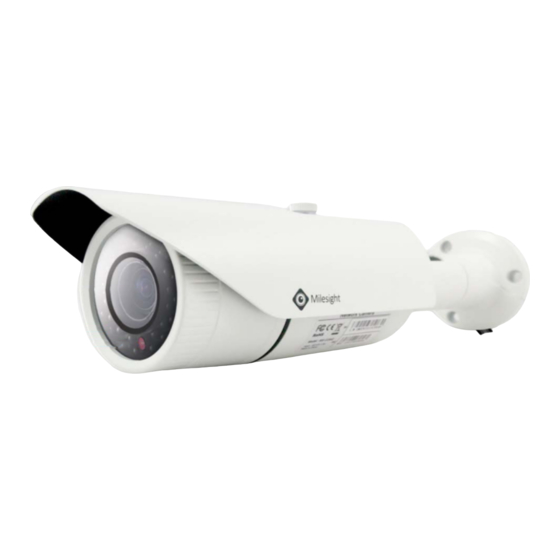

Milesight Technology Co., Ltd 4.2 IR Bullet Camera Lens IR LED Light Sensor Video Output Power Connector (DC 12V) Audio Output Audio Input RS-485 PTZ control Alarm Input/ Output Ethernet Port Figure 4-2 www.milesight.com... -
Page 6: Dome Camera
Milesight Technology Co., Ltd 4.3 Dome Camera Video Output Power Connector (DC 12V) Audio Output Audio Input RS-485 PTZ control Alarm Input/ Output Ethernet Port Figure 4-3 www.milesight.com... -
Page 7: Mini Dome Camera
Milesight Technology Co., Ltd 4.4 Mini Dome Camera Ethernet Port (PoE) Micro SD/SDHC Card Slot Figure 4-4 5. Hardware Installation 5.1GeneralConnection 1. Connect the camera to the network and power using one of the methods listed below: 1) Basic connection (without PoE): Step 1: connect the DC 12V end of the power adapter to the power port of the camera and connect the other end to a wall outlet;... - Page 8 Milesight Technology Co., Ltd Bullet Camera Box Camera Dome Camera Figure 5-1 Power over Ethernet (PoE) connection. PoE will be automatically detected when the Ethernet cable is connected. The camera can either be connected to a PoE-enabled switch or a non-PoE switch.
- Page 9 Milesight Technology Co., Ltd B. Connect the camera to a non-PoE switch using the PoE injector Step 1: Connect the camera to a PoE injector using an Ethernet cable. Step 2: Connect the PoE injector to the non-PoE switch using an Ethernet cable.
-
Page 10: Insert The Sd Card
Milesight Technology Co., Ltd 5.2Insert the SD card Steps: 1. Locate the SD card slot. 2. Insert the SD card into the slot with the metal contacts facing down. A. Box camera Figure 5-4 B. Vari-focal lens bullet camera Figure 5-5 Note:Vari-focal lens bullet camera is using TF card. -
Page 11: Lens Adjustment
Milesight Technology Co., Ltd C. IR Dome camera Figure 5-6 D. Mini dome camera Figure 5-7 Note: Mini Dome network camera is using TF card. 5.3 Lens Adjustment In order to achieve the best possible video quality, please adjust the iris controller, focus controller, or zoom controller (if applicable for the lens installed)to get the best view. - Page 12 Milesight Technology Co., Ltd A. Box camera Figure 5-8 B. Vari-focal lens bullet camera Figure 5-9 www.milesight.com...
-
Page 13: Accessing The Camera
Milesight Technology Co., Ltd C. IR dome camera Figure 5-10 D. Mini dome camera Figure 5-11 Note: The user could adjust the len’s angle either using the L-type hex key or manually (see as step 4). 6. Accessing the Camera The camera must be assigned an IP address to be accessible. -
Page 14: Assigning An Ip Address
Milesight Technology Co., Ltd 6.1 Assigning an IP Address The default IP address of Milesight network camera is 192.168.5.190. The default user name is admin, and password is ms1234. You can change the IP address of the camera via IPCTools. Please connect the camera in the same LAN of your computer. - Page 15 Milesight Technology Co., Ltd Figure 6-2 Select single camera Figure 6-3 Select multiple cameras Step 4: Type the User Name and Password (if they are not default value.) www.milesight.com...
- Page 16 Milesight Technology Co., Ltd Figure 6-4 Step 5: Change the IP address or other network values, and then click “Modify” button. Figure 6-5 Step 6: Change the IP address successfully. www.milesight.com...
- Page 17 Milesight Technology Co., Ltd Figure 6-6 Step 7: By double clicking the selected camera, you can access the camera via web browser directly. The Internet Explorer window will pop up. Figure 6-7 www.milesight.com...
-
Page 18: Accessing From The Web Browser
Figure 6-9. Please click 'Finish' and refresh the browser, then you will see the video. Figure 6-9 Note: If IE9 or higher version browser is used, it is suggested that the Milesight camera web link should be added as a trusted site. See the instructions as below: Step 1: Start the IE9 or higher version browser, and select “Tools”select”Internet Options”. - Page 19 Milesight Technology Co., Ltd Figure 6-10 Step 3: Select “Security””Trusted sites” www.milesight.com...
- Page 20 Milesight Technology Co., Ltd Figure 6-11 Step 4: Enter the IP address of the camera in the blank and click “Add”. www.milesight.com...
- Page 21 Milesight Technology Co., Ltd Figure 6-12 After logging on IP camera`s web GUI successfully, user is allowed to view live video as bellow. Figure 6-13 Note: Please refer to the User Manual for more detailed configuration instructions. www.milesight.com...
