Major components of the server

Blue on a component indicates touch points, where you can grip the component to
remove it from or install it in the server, open or close a latch, and so on.
Orange on a component or an orange label on or near a component indicates that
the component can be hot-swapped, which means that if the server and operating
system support hot-swap capability, you can remove or install the component while
the server is running. (Orange can also indicate touch points on hot-swap
components.) See the instructions for removing or installing a specific hot-swap
component for any additional procedures that you might have to perform before you
remove or install the component.

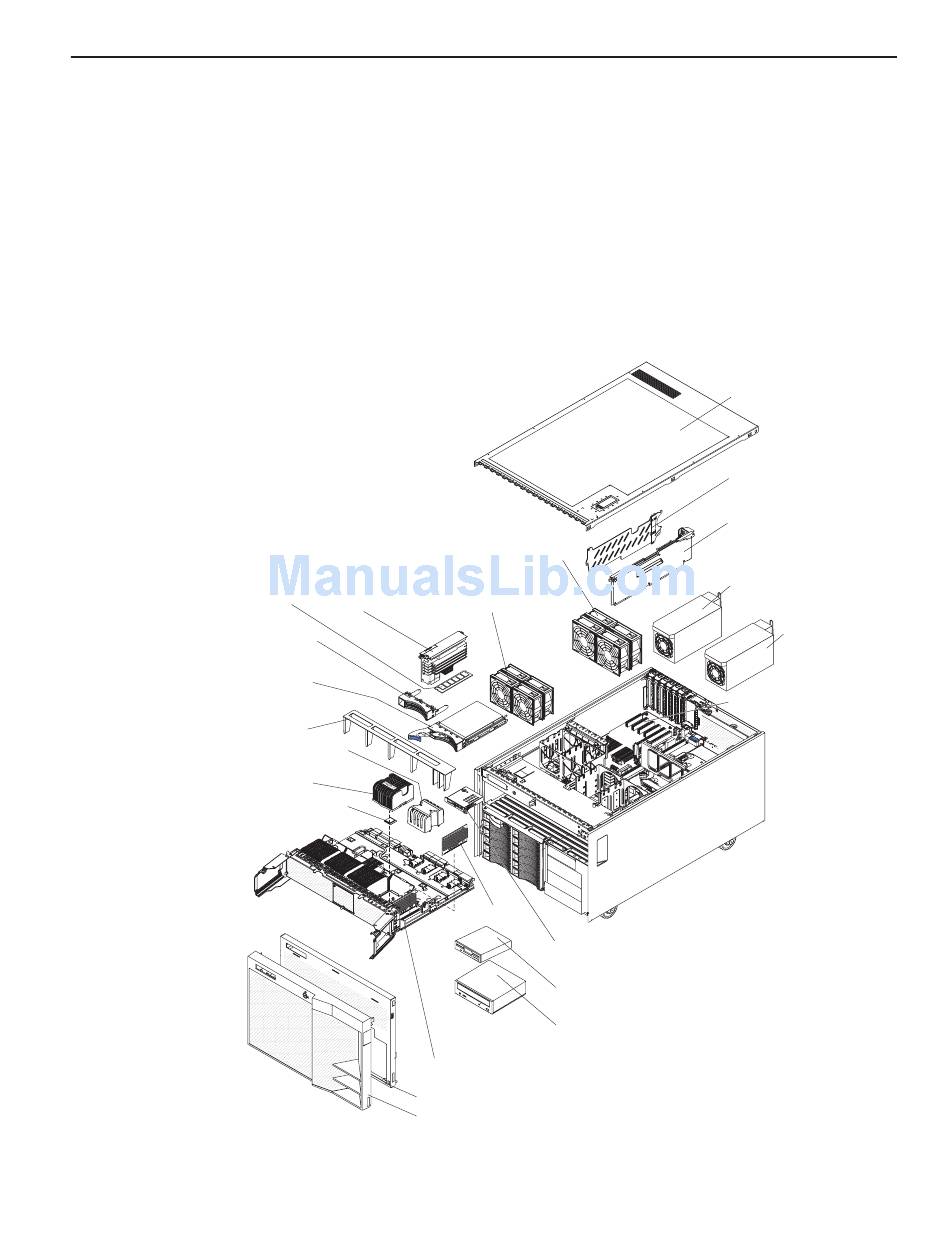

The following illustration shows the major components in the server.
Memory
DIMM Hot-swap fans
card
80 mm
Hard disk
drive filler
panel
Hot-swap
hard disk
drive
Air baffle
Microprocessor
baffle
Heat sink
Microprocessor
Rack bezel
Front cover
Hot-swap fans
92 mm
VRM
Operator information
panel
Diskette drive
CD drive
Microprocessor tray
Top cover
PCI divider
I/O board
Power supply
filler
Hot-swap
power supply
PCI slots
5
Chapter 1. Introduction
