allen + roth
is a registered trademark of
®
LF, LLC. All rights reserved.
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Friday.

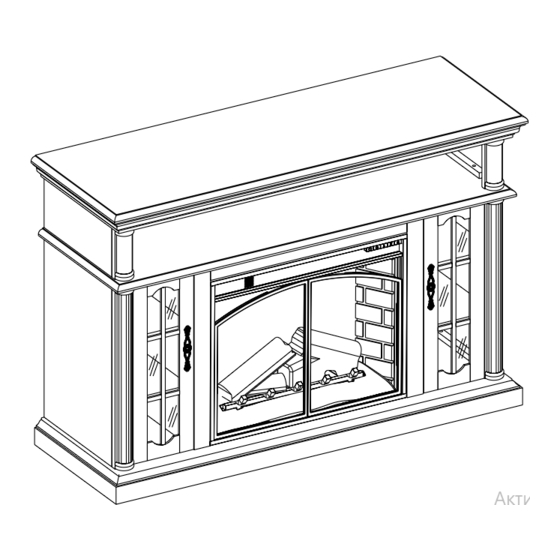

ELECTRIC FIREPLACE
AND MEDIA MANTEL
1
ITEM #0309525
MODEL #28MM081PPC
Français p. 15
Español p. 29
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allen + Roth 28MM081PPC
Summary of Contents for Allen + Roth 28MM081PPC
- Page 1 ITEM #0309525 ELECTRIC FIREPLACE AND MEDIA MANTEL allen + roth is a registered trademark of ® MODEL #28MM081PPC LF, LLC. All rights reserved. Français p. 15 Español p. 29 Questions, problems, missing parts? Before returning to your retailer, call our...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product Specifications ......................... 2 Safety Information ..........................3 Package Contents ..........................6 Hardware Contents..........................7 Preparation ............................8 Assembly instructions ........................... 8 Operating Instructions .........................11 Care and Maintenance ........................13 Troubleshooting ..........................13 Warranty ............................. 14 Replacement Parts ..........................15 PRODUCT SPECIFICATIONS VOLTAGE 120 V, 60 Hz... -
Page 3: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING • Before assembly, carefully use scissors or utility knife to cut and unwrap all parts. Make sure you do not discard the hardware. CAUTION •... -
Page 4: Grounding Instructions
SAFETY INFORMATION 18. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where opening may become blocked. 19. This appliance has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are used or stored. - Page 5 SAFETY INFORMATION WARNING: Make sure the power is turned off before proceeding. Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in accordance with national and local codes. If repairing or replacing any electrical component or wiring, the original wire routing, color coding and securing locations must be followed.
-
Page 6: Package Contents
PACKAGE CONTENTS Part Description Quantity Hearth/Base Center Left Side Panel Center Right Side Panel Center Front Panel Left Side Panel Right Side Panel Mantel/Top Center Shelf Left Upper Side Panel Right Upper Side Panel Left Back Panel Right Back Panel Center Back Panel Left Front Door Right Front Door... -
Page 7: Hardware Contents
HARDWARE CONTENTS Picture (Shown to size) Description Quantity Part Bolt Washer Wood Dowel Shelf Pin Screw Door Pull Touch-up Pen Model No. W3348 Not actual size... -
Page 8: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement parts. - Page 9 3. Locate the left upper side panel (I) and right upper side panel (J) and center shelf (H), and set out face down on a scratch-free surface. Insert one wood dowel (CC) into each of the pre-drilled holes. Place center shelf (H), left upper side panel (I) and right upper side panel (J) on the top of the assembly from step 2 as shown in diagram.
- Page 10 6. Locate right front door (O) and left front door (N). Slide door hinge keyhole into panel hinge bracket as shown in inset 1 of Fig. 6. Use Phillips screwdriver to tighten screws as shown in inset 2 of Fig. 6. TO ADJUST HINGES To adjust door forward or backward, change keyhole slot.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS Control panel can be accessed at upper-right corner of insert (Q). - POWER The power button supplies power to all of the functions of the fireplace. The power button will put the in- sert in a standby mode. This will turn off all functions at once but will hold the settings in the memory. By pressing the power button again the unit will turn on at the same settings. -
Page 12: Troubleshooting
REPLACING THE REMOTE CONTROL BATTERY When the remote control stops operating or its range seems reduced, it is time to replace the battery with a new one. Note: Batteries should be removed if the product is to be left unused for a long time. 1. -
Page 13: Warranty
1-YEAR LIMITED WARRANTY The manufacturer warrants this product to be free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. 1. Install and operate this Electric Fireplace in accordance with the installation and operating instructions furnished with the product at all times. -
Page 14: Replacement Parts
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Friday. Part No. Part Description 28EF023SRA Control Panel - 5 Buttons Y10-C45-P32 Decorative Brick Panels Y10-S54-P17 Heater/Blower Assembly Y06-C26-P01 Control Panel Circuit Board Y10-C45-P32 Main Circuit Board...
