Carrier WeatherMaker 48TC Series Product Data

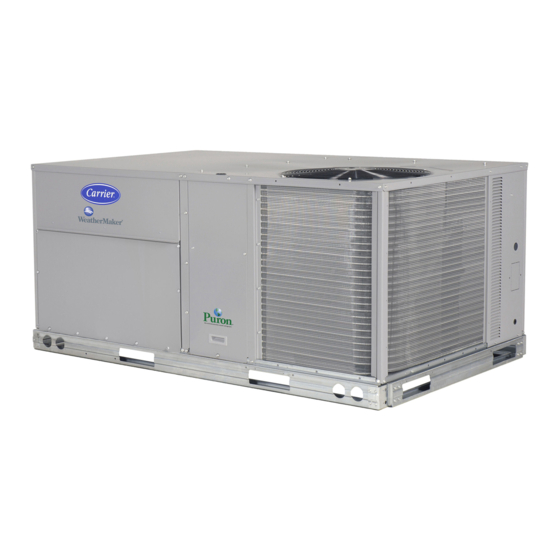

Carrier gas heat/electric cooling packaged rooftop 3 to 15 nominal tons
Hide thumbs Also See for WeatherMaker 48TC Series:
Table of Contents

Advertisement

Quick Links

See also: User's Information Manual , Instruction and Installation Manual
48TC
Gas Heat/Electric Cooling
Packaged Rooftop
3 to 15 Nominal Tons

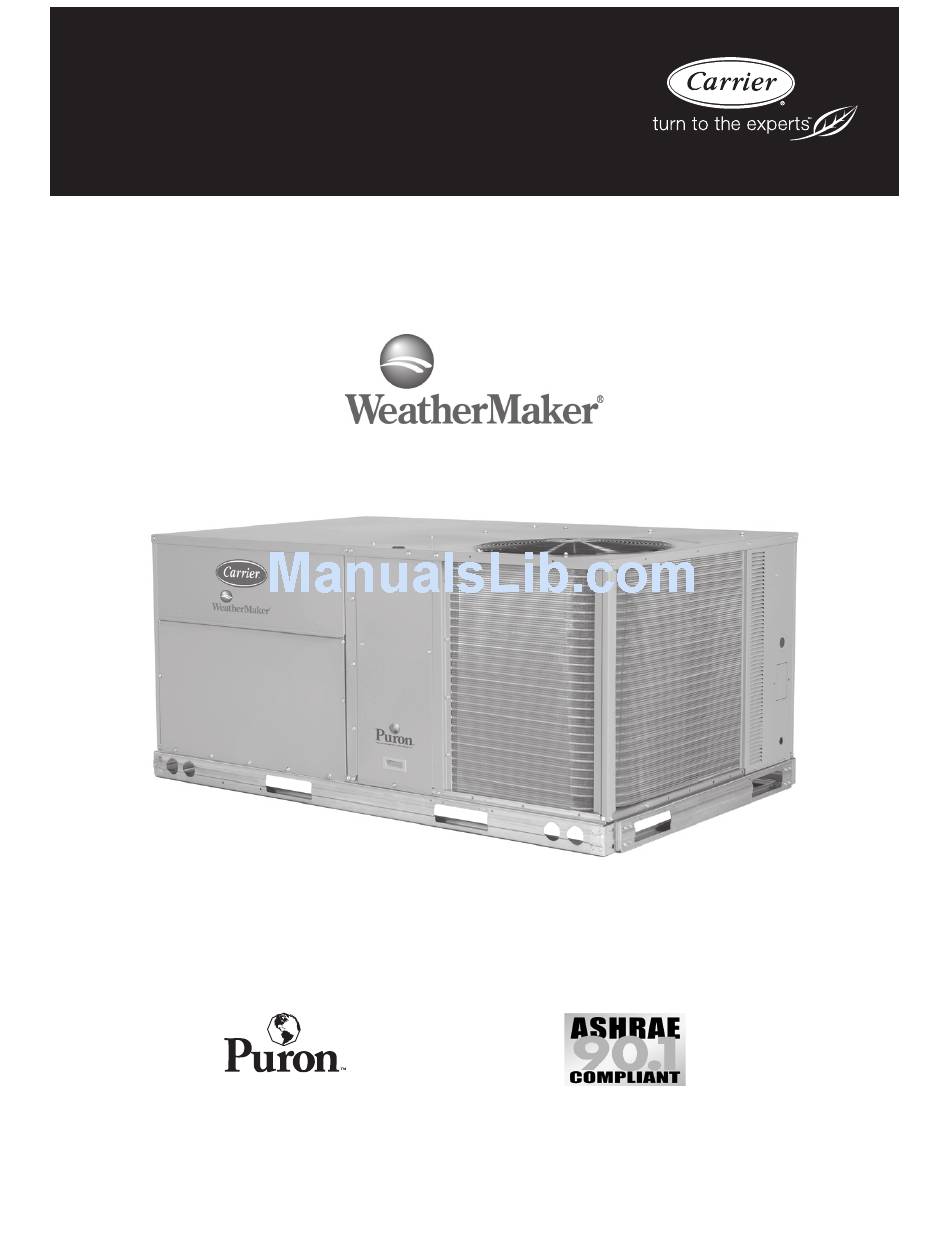

Product Data

C08613
