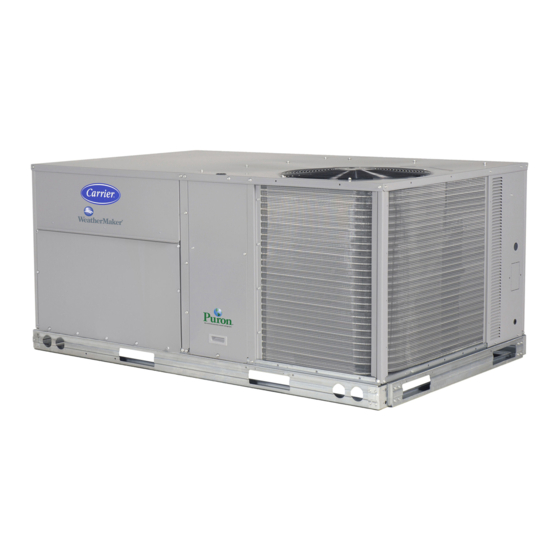

Carrier WeatherMaker 48TC Series Installation Instructions Manual

Single package rooftop with gas heat/electric cooling
Hide thumbs Also See for WeatherMaker 48TC Series:
Table of Contents

Advertisement

Quick Links

48TC*D/E units for installation in the United States contain use of Carrier's Staged Air Volume (SAV™) 2-speed
indoor fan control system. This complies with the U.S. Department of Energy (DOE) efficiency standard of 2018.
48TC*D/E units for installation outside the United States may or may not contain Carrier's Staged Air Volume
(SAV) 2-speed indoor fan control system as they are not required to comply with the U.S. Department of
Energy (DOE) 2018 mandatory efficiency standard.
48TC*M units for installation inside or outside the United States do not contain use of Carrier's Staged Air
Volume (SAV) 2-speed indoor fan motor control system as they comply with the U.S. Department of Energy
(DOE) 2018 mandatory efficiency standard without their use.
For specific details on operation of the Carrier SAV 2-speed indoor fan system refer to the Variable Frequency
Drive (VFD) Factory-Installed Option 2-Speed Motor Control Installation, Setup, and Troubleshooting manual.
CONTENTS
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . 2
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Rated Indoor Airflow (cfm) . . . . . . . . . . . . . . . . . . . . . 3
Pre-Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Step 1 - Plan for Unit Location . . . . . . . . . . . . . . . 16
Step 3 - Inspect Unit . . . . . . . . . . . . . . . . . . . . . . . . 17
Step 4 - Provide Unit Support . . . . . . . . . . . . . . . . 17
• ALTERNATE UNIT SUPPORT (IN LIEU OF CURB OR
Step 5 - Field Fabricate Ductwork . . . . . . . . . . . . . 21
Step 6 - Rig and Place Unit . . . . . . . . . . . . . . . . . . 21
Ductwork (When Required) . . . . . . . . . . . . . . . . . 23
• SIZES 07-14
Step 8 - Install Outside Air Hood . . . . . . . . . . . . . . 24
14)
Step 9 - Install Flue Hood . . . . . . . . . . . . . . . . . . . . 26
Step 10 - Install Gas Piping . . . . . . . . . . . . . . . . . . 26
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-53480257-01
Installation Instructions
Page
Printed in U.S.A.
Form 48TC-7-16-02SI
Single Package Rooftop with
Gas Heat/Electric Cooling
Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
• CO2 SENSOR WIRING
PremierLink™ Control . . . . . . . . . . . . . . . . . . . . . . . .54
RTU Open Control System . . . . . . . . . . . . . . . . . . . .54
Pg 1
WeatherMaker
48TC 07-16
5-2020
Replaces: 48TC-7-16-01SI
®

Advertisement

Table of Contents
