GEBRAUCHSANWEISUNG UND WARTUNGSVORSCHRIFTEN
E
MANUEL D'INSTRUCTIONS ET D'ENTRETIEN
F
FIN

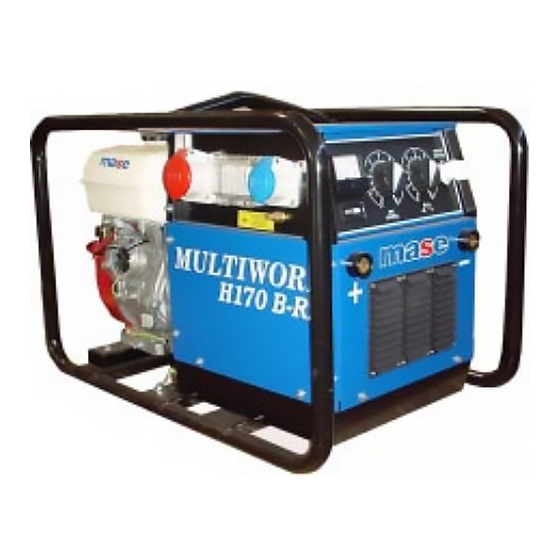

MULTIWORK
MW 170 HB-RE
MANUALE DI USO E MANUTENZIONE
USE AND MAINTENANCE MANUAL
MANUAL USO Y MANTENIMIENTO
KÄYTTÖ- JA HUOLTO-OPAS
230V 3~
REV.0 MC. 15-01-02
cod.42056
Advertisement
Related Manuals for Mase MW 170 HB-RE
Summary of Contents for Mase MW 170 HB-RE

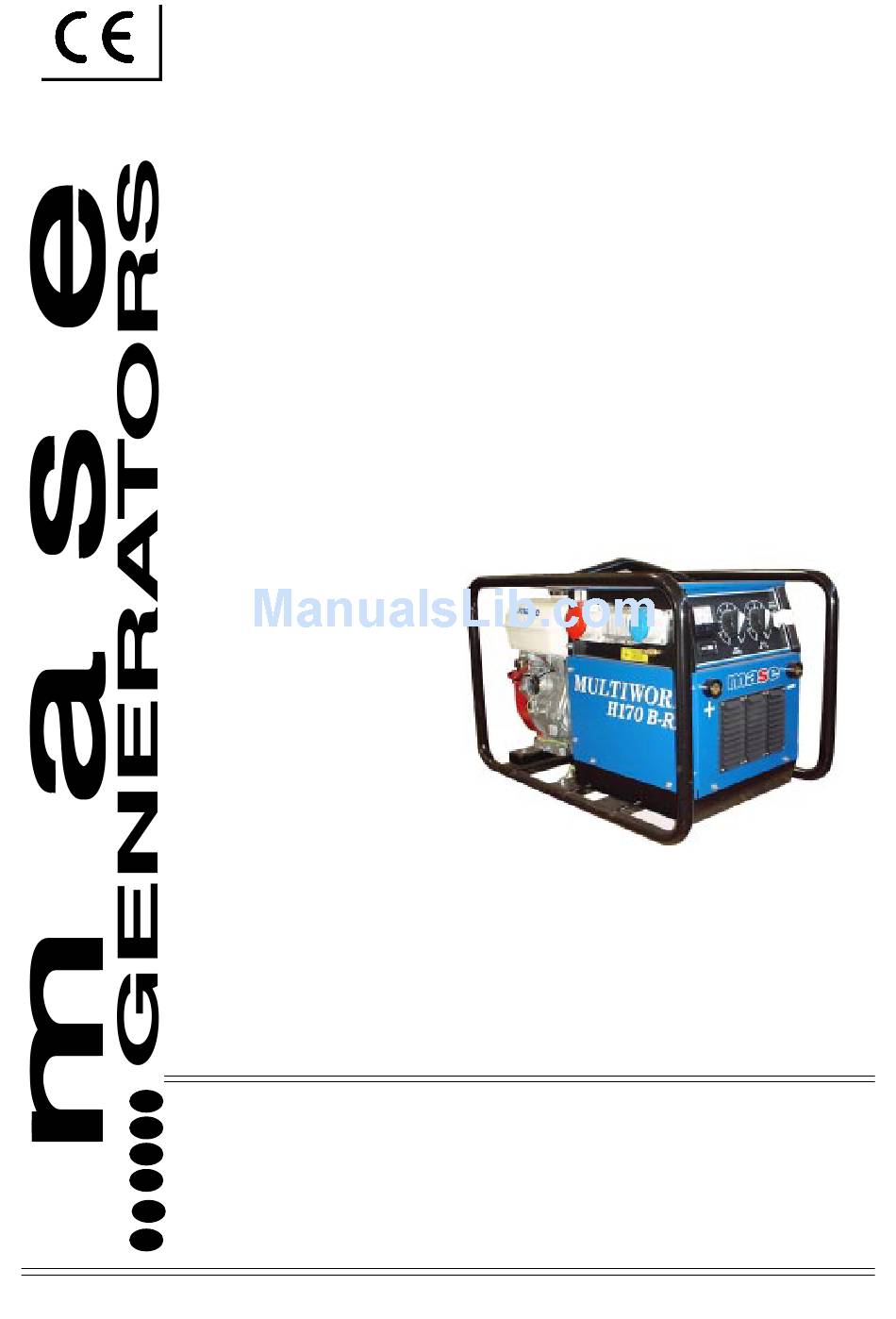

- Page 1 MULTIWORK MW 170 HB-RE 230V 3~ MANUALE DI USO E MANUTENZIONE USE AND MAINTENANCE MANUAL GEBRAUCHSANWEISUNG UND WARTUNGSVORSCHRIFTEN MANUAL USO Y MANTENIMIENTO MANUEL D’INSTRUCTIONS ET D’ENTRETIEN KÄYTTÖ- JA HUOLTO-OPAS cod.42056 REV.0 MC. 15-01-02...
- Page 2 Fabbricante/Manufacturer: MASE GENERATORS S.p.A. Indirizzo /Address : Via Tortona 345, Pievesestina (FC) Il sottoscritto Luigi Foresti in qualità di direttore tecnico della MASE GENERATORS S.p.A., dichiara sotto la propria responsabilità che il gruppo elettrogeno modello ....: The undersigned Luigi Foresti as MASE GENERATORS S.p.A. technical manager declares, under his sole responsability, that the generator model....:...
- Page 3 MW 170 HB-RE 230V 3~ GENERATORS SERIAL No. Fig.2...
- Page 4 MW 170 HB-RE 230V 3~ Fig.3...
- Page 5 MW 170 HB-RE 230V 3~ Fig.4 Fig.5 S.A.E Service Fig.6 5W30 Grade 10W30 20W40 Ambient temperature ( Fig.8 Fig.7 0.7 - 0.8...
- Page 6 MW 170 HB-RE 230V 3~ Fig.10 CODE 45225...
- Page 7 MW 170 HB-RE 230V 3~ INDEX GENERAL INFORMATION ..................18 1.1 Purpose and field of application of the manual ............18 1.2 Symbols ......................... 18 1.3 Reference documents .....................
- Page 8 MANUAL WILL RESULT IN FORFEITURE OF THE GUARANTEE ON THE PRODUCT 1.1 Purpose and field of application of the manual Thank you for choosing a MASE product. This manual has been drawn up by the manufacturer with the purpose of providing essential information and instructions for proper use and maintenance in conditions of safety and constitutes an integral part of the generator equipment.
- Page 9 Below is a facsimile of the identification plate fixed on the control panel of each generator (Fig.2) All the MASE diesel generators are designed and manu- factured in compliance with the legislation in force. The generator and its components are constructed in 1.7 Machine identification...
- Page 10 MW 170 HB-RE 230V 3~ 1.9 Composition of the motor welding sets 2.2 Welding graph See Fig.2 The motor welding sets are essentially made up of the...
- Page 11 MW 170 HB-RE 230V 3~ 3 SAFETY REGULATIONS - Do not allow access to persons wearing a pace- maker because of possible electromagnetic inter- 3.1 General precautions...
- Page 12 MW 170 HB-RE 230V 3~ 4 USING THE MOTOR WELDING SET tor is not started on load; - that the fuel pipes are undamaged and properly con- nected;...
- Page 13 (Fig.8). 4.6 Use as welder The remote control comes with a 20 m cable. Should it be necessary to modify the length, “MASE” tech- The motor welding sets of the Multiwork MW 170 HB- nical service must first be consulted.
- Page 14 MW 170 HB-RE 230V 3~ 5 PROTECTIONS AND WARNING SIGNALS Daily check the oil level with the graduated dipstick (Fig.2, Ref. 13) The generators are equipped with a series of protections...
- Page 15 MW 170 HB-RE 230V 3~ • Leave to dry well and soak the clean element in engine There is high smoke emission from the exhaust. oil, then wring it out to remove the excess oil, since •...
- Page 16 MW 170 HB-RE 230V 3~ 8 STORAGE 10 WIRING DIAGRAM REFERENCES If the generator is not going to be used for a long period See Fig.10...
