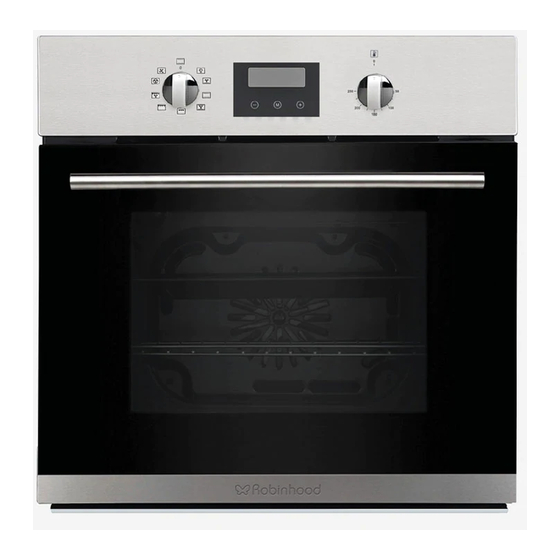

- Page 1 Issue 3 Description: Robinhood 9 Function Fan Forced Stainless Steel 60cm Oven Model Numbers: OBA609C56SS, OBB609K56SS, OBS609C56SS OBB609K56SS OBA609C56SS OBS609C56SS...
- Page 2 Warning and safety information This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Page 3 Installation- continued Fastening the oven Insert the appliance into the compartment; open the oven door and fasten the oven to the cabinet using the four screws “A”, remembering to place the special spacers provided between the hole and the screw itself.
- Page 4 Installation- continued Electric connection Cookers with a three-pole power supply cable are designed to operate with single phase alternated current at the supply frequency and voltage indicated on the data plate (at the rear of the oven). The earthing conductor of the cable is the yellow-green conductor.
- Page 5 Instruction on use Control panel features This oven combines in a single appliance the advantages of traditional convection ovens with those of modern forced air ventilation ovens. It is an extremely versatile appliance that allows you to easily and safely choose between 9 different cooking modes. The selection of the various functions can be obtained by putting the programmer to the manual position or setting a beginning/end of cooking program and successively by turning the selector and thermostat knobs on the control panel.
- Page 6 Instructions on use - continued Oven light When the selector knob is in any position other than the “0”position, the oven light comes on. Attention: The first time you use the oven we recommend that you set the thermostat on the highest setting and leave the oven on for about a half an hour with nothing in it.
- Page 7 Instructions on use - continued Fan assisted the central heating elements Important: do not set thermostat knob (C) to over 175℃. During grilling, keep the oven door closed. The central heating elements of the top are activated as well as the fan. This combination of features increases the effectiveness of the thermal radiation of the heating elements through forced air circulation of the air throughout the oven.
- Page 8 Instructions on use - continued Multi-Skewer Rotisserie This oven is equipped with a removable multiple skewer rotisseries positioned on the sides , after fitting the food to the spit (S), block it with the two forks (F) and then proceed as follows. •...
- Page 9 Instructions on use - continued LED programmer Features 24 hours clock with automatic program and minutes counter Functions cooking time, cooking end time, manual position, clock, minutes counter, times to be set up to 23 hours 59 minutes. Display 4-figures, 7 segments display for cooking times and time of day. •...
- Page 10 Instructions on use - continued Automatic use with cooking time and end time setting Press the cooking time button and select the length of the cooking time with +or –button. The AUTO and cooking time symbols light up continuously. The relay switches on. By pressing the cooking end time button the next cooking end time appears on the display.
- Page 11 Instructions on use - continued Manual mode The timer remains in manual mode if no cooking time or end of cooking time is selected. The relay contact is closed and the symbol Man is displayed. The time of day is shown on the 7-segment display units the timer is active. Automatic mode If a cooking time or a end of cooking time is selected, the timer switches to automatic mode.
- Page 12 Instructions on use - continued Time of day Select time of day mode Step through the sequences of function with Touchpad SELECT until the symbol flashes. Set time of day Set time of day by SET (+) or SET (-) as described in this manual Display: 0…..24h Format: h: min Set acoustic signal volume...
- Page 13 Instructions on use - continued End of cooking time Set end of cooking time Selection as described earlier. Until the symbol end of cooking is flashing. The end of cooking can be set with Touchpad SET (+) or SET (-). The display shows the current time of day plus the set cooking time.
- Page 14 Instructions on use - continued Activation of child lock Child lock To avoid unwanted selection, setting resp. change of functions, the unit disposes a child lock function. Activation of child lock The child lock function can be activated while time of day is displayed in manual mode, regardless whether a cooking time or an end of cooking time runs down in automatic mode.
- Page 15 Maintenance How to keep your oven in good condition Important: Before cleaning your oven, or performing maintenance, disconnect it from the power supply. To extend the life of your oven, it must be cleaned frequently, keeping in mind that: • Do not use steam equipment to clean the appliance •...
- Page 16 Maintenance- continued If you choose our self-cleaning oven, you can observe the following instructions: Inside the oven door: Clean the surface with a cloth moistened with hot water and non abrasive liquid detergent, then rinse and dry thoroughly. Inside the oven: The inside of your oven is coated with a special self-cleaning micro porous enamel glaze which, at a normal cooking temperature of between 200 and 300℃,oxidises and completely eliminates all grease spots or other substances that inevitably attack the inner walls of the oven.
- Page 17 Maintenance- continued Disassembling/assembling the oven door To make it easier to clean the inside of your oven, the oven door can be removed, by proceeding as follows (fig. 1-2): • Open the door completely and lift the 2 levers “B” (fig.1); •...
- Page 18 Important information The appliance may be built-in and connected to the power supply only by a qualified technician. Particular areas of the cooktop surface (adjacent to the hotplates) are hot during operation. Hot oil ignites readily, so be sure have the preparation of such food (fries) under constant control. Hotplates may not be left in operation empty, without any dishes on top.
- Page 19 The product was used outdoors. 2. All Robinhood rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
- Page 20 The product was not used, cleaned or cared for in accordance with our instructions. The product was used outdoors. All Robinhood rangehoods are suitable for indoor use only, and not suitable over BBQs or charcoal cookers designed for outdoor use.
