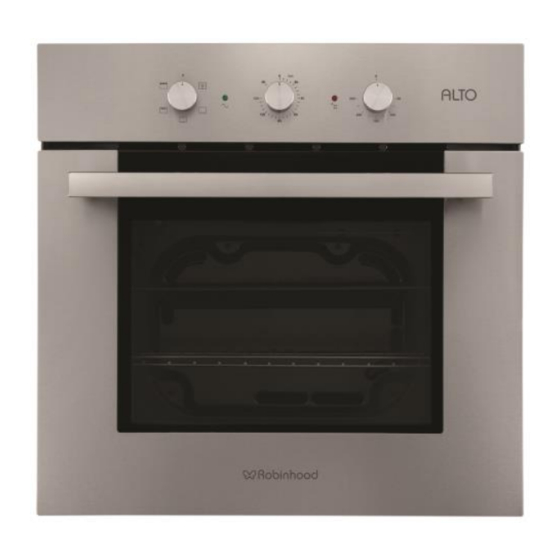

- Page 1 Issue 9 Description: Robinhood Alto 5, 6 & 10 Function Stainless Steel 60cm Ovens Model Numbers: OBAC605M57SS, OBAC606D57SS, OBAC610D57SS OBAC605M57SS OBAC606D57SS OBAC610D57SS...
-
Page 2: Warning And Safety Information
Warning and safety information This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. - Page 3 Installing the built in oven Positioning the appliance Ensure that the aperture that you will be fitting the oven into, is of the size given in the diagram. The oven must be fitted into an oven housing with the ventilation cut-outs shown in the “Ventilation requirements”...
- Page 4 Installation- continued Electric connection Cookers with a three-pole power supply cable are designed to operate with alternated current at the supply frequency and voltage indicated on the data plate (at the bottom of the oven dashboard). The earthing conductor of the cable is the yellow-green conductor.
- Page 5 Instruction on use - OBAC605M57SS Control panel Oven function selector knob See functions on next page 2. Indicator light 3.The oven timer To operate the timer, turn the timer knob as you wish, select time from 0~120 mins, the oven will power off when the timer stops Set the timer at 0 if not required to prevent oven turning off expectantly 4.Oven operating light...
- Page 6 Instruction on use - OBAC605M57SS Selecting a cooking function and temperature 1.When your appliance is connected to your mains supply for the first time, the power indicator light will come on, after selecting the cooking function and setting a temperature, the operating light will come on and the oven will start working, finally setting the cooking time;(the cooking...
- Page 7 Instructions on use OBAC610D57SS & OBAC606D57SS 6 7 8 9 10 11 Oven function selector knob Oven programmer/timer Thermostat control knob Power indicator light Oven operating light Timer “minute minder” button Timer “duration” button Timer “end cook” button Timer “manual operation” button 10.
- Page 8 Instruction on use. Oven function - OBAC606D57SS...
- Page 9 Instruction on use - OBAC610D57SS & OBAC606D57SS Setting and using the oven programmer/timer Selecting manual operation mode After your appliance is connected to your mains supply for the first time, the numbers on the timer display will flash. Before you can select a cooking function or set a temperature, you must set the appliance into “manual operation”...
- Page 10 Instruction on use - OBAC610D57SS & OBAC606D57SS Setting the duration function This function will allow you to set a countdown time similar to the minute minder function. However the oven will no longer continue to heat, once the countdown period has elapsed. Use the thermostat control knob (3) to set the temperature that you require.
- Page 11 Instruction on use - OBAC606D57SS Setting the end cook function This function is similar to the duration function, however instead of selecting a period of time that you wish the oven to switch off after. You select the time of day that you wish the oven to switch off at. Use the thermostat control knob (3) to set the temperature that you require.
- Page 12 Instruction on use. Oven function - OBAC610D57SS Selecting manual operation mode After your appliance is connected to your mains supply for the first time, the numbers on the timer display will flash. Before you can select a cooking function or set a temperature, you must set the appliance into “manual operation”...
- Page 13 Instruction on use Oven function - OBAC606D57SS...
-
Page 14: Maintenance And Cleaning
Maintenance and cleaning Accessories: Your oven will come supplied with the following items: Oven shelf (A) Drip tray (B) The numbers 1 -4 indicate the different shelf positions that you can use. Replacing the light bulb Turn off the supply of power to the oven by turning off the circuit breaker connecting it to the mains, or by removing the plug if it is accessible;... -
Page 15: Maintenance
Maintenance How to keep your oven in good condition Important: Before cleaning your oven, or performing maintenance, disconnect it from the power supply. To extend the life of your oven, it must be cleaned frequently, keeping in mind that: •Do not use steam equipment to clean the appliance •The enamelled or stainless steel parts should be washed with lukewarm water without using any abrasive powders or corrosive substances which could ruin them;... -
Page 16: Troubleshooting
Trouble shooting The oven isn’t coming on. • Check that the oven is in manual operation mode. • Check that you have selected a cooking function and a cooking temperature. There appears to be no power to the oven and grill. •... - Page 17 Important information The appliance may be built-in and connected to the power supply only by a qualified technician. Particular areas of the cooktop surface (adjacent to the hotplates) are hot during operation. Hot oil ignites readily, so be sure have the preparation of such food (fries) under constant control. Hotplates may not be left in operation empty, without any dishes on top.
-
Page 18: Pre-Installation
The following conditions apply in respect of the warranty given in this certificate: 1. Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: Rangehood, Ovens, Cooktops, Dishwashers - 24 months from date of original purchase for domestic use. - Page 19 The product was used outdoors. 2. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
