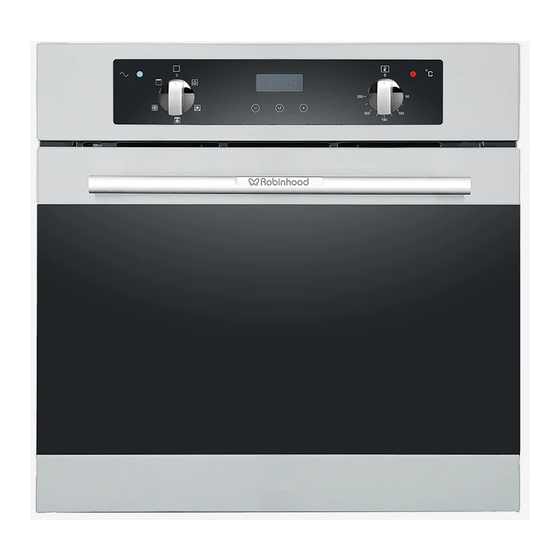

- Page 1 Installation and Operating Instructions Issue: 1 Description: ROBINHOOD 60CM BUILT-IN OVEN WITH DIGITAL TIMER Model Numbers: RHBO65DX, RHBO610DX & RHBO68DB Models pictured: RHBO65DX, RHBO610DX & RHBO68DB Actual products may vary from pictures shown above...
-
Page 2: Table Of Contents
Due to continual product development, Robinhood reserves the right to alter specifications or appearances without notice. Important Safety Instructions..........................1 Appliance Details .............................. -
Page 3: Important Safety Instructions
Important Safety Instructions This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;... -
Page 4: Appliance Details
Appliance Details Details Voltage/frequency 220-240V～50Hz Total power consumption 2300W Cable type/section H05VV-F 3*1.5mm Cable length 1.2m External dimensions(height/width/depth) 595/595/575（mm） Installation dimensions(height/width/depth) 600/600/565（mm） Oven lamp 25W/300°C Grill power consumption 2250W 1. Control Panel 6. Fan Motor (behind steel plate) 2. Wire Rack 7. -
Page 5: Installation
Installation The oven should be installed into a purpose built cabinet. Ensure that there is adequate space between the sides of the oven and the walls of the cabinet for ventilation (see the image below for details). Surfaces, synthetic laminates and adhesives used must be heat resistant (100°C minimum), and neighboring unit fronts up to 70°C. - Page 6 Installation Electrical Connection LOCAL AUTHORITY REQUIREMENTS Installation is only permitted by a licensed electrician and carried out according to instructions provided by the manufacturer. Incorrect installation might cause harm and damage, for which the manufacturer accepts no responsibility. Electrical Installation Before carrying out the connection to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the oven’s power rating (also indicated on the identification plate).
- Page 7 Installation The accessories supplied with your appliance are suitable for making many different types of meals. Ensure that you always insert the accessories into the cooking compartment in the correct orientation. Inserting accessories You can insert the accessories into the cooking compartment at 5 different levels. Always insert them as far as they will go so that the accessories do not touch the door panel.
-
Page 8: Operating Instructions
Operating Instructions Control Panel RHBO65DX RHBO610DX RHBO68DB... - Page 9 Function selector Use the function selector to select the desired cooking function. There are five functions available for RHBO65DX: OVEN LIGHT: Press to turn interior light on and off. DEFROST: The fan runs without heat to reduce the defrosting time of frozen foods. The time required to defrost the food will depend on the room temperature, the quantity and type of food.
- Page 10 Operating Instructions Function selector Use the function selector to select the desired cooking function. There are eight functions available for RHBO68DB: DEFROST: The fan runs without heat to reduce the defrosting time of frozen foods. The time required to defrost the food will depend on the room temperature, the quantity and type of food.
- Page 11 Operating Instructions Control Panel Function Icon Instruction Icons Function Minus button Plus button/ audible signal selecting key Program button Display screen icon instruction Icons Function Icons Function “Auto” function symbol Clock symbol Oven in use symbol Display the time, can display system time, clock and cooking time Decimal point symbol Before Using the Oven for the First Time...
- Page 12 Operating Instructions Timer Working Status Switching the timer status The timer has 3 status, they are standby, function to be selected and working status. Stand-by status: After connected to the power supply, the display screen displays the system time, the decimal point symbol flashes, it is the status before entering cooking function;...
- Page 13 Operating Instructions Power On For the first time, the buzzer “beep” for once to show that the timer enters into the standby state. The clock shows the time of the system and starts the timing. Power-on displays as “0·00”, the display screen displays the system time, the decimal point symbol “...
- Page 14 Operating Instructions Alarm Clock Setting Function In the state of function to be selected, when the display shows the system time, oven in use symbol“ ” and decimal point symbol “ ” keep bright, press “ ” twice, then the clock icon“ ”twinkles, and the screen display changes to the alarm clock time(First set default display “0·00”), alarm clock time and decimal point symbol “...
- Page 15 Operating Instructions Cooking Time Setting Function In the state of function to be selected, press button“ ” 3 times, then the icon “AUTO” and oven in use symbol icon “ ” twinkle. The screen shows the cooking time（First set default display “0·00”）,cooking time and decimal point symbol “...
- Page 16 Operating Instructions Cooking End Time Setting Function In the state of function to be selected, press button “ ” 4 times, then icon “AUTO” and oven in use symbol “ ”twinkle, display screen shows cooking end time（The first setting shows the current system time by default）,cooking end time and decimal point symbol “...
- Page 17 Operating Instructions Cooking Reservation Function In the state of function to be selected, user can reserve the cooking time, by setting how much time to cook and when to have the dish ready. First, press button “ ” 3 times, then the icon “AUTO” and oven in use symbol icon“ ”twinkle.
- Page 18 Operating Instructions Selecting the audible signal The audible signal has 3 tones. To adjust the signal you should proceed as follows: Under standby mode, that is when display screen shows system time, decimal point symbol “ ” twinkling, audible signal can be adjusted by pressing the plus button to choose the 3 tones, press once choose one kind.
- Page 19 Operating Instructions Cooking Guide Baking Tips 1、How to establish whether sponge cake is baked through. Approximately 10 minutes before the end of the baking time specified in the recipe, stick a cocktail stick into the cake at the highest point. If the cocktail stick comes out clean, the cake is ready.
- Page 20 Operating Instructions Grilling Tips When grilling, preheat the oven for approx. 4 minutes, before placing the food into the cooking compartment. Always grill with the oven door closed. As far as possible, the pieces of food you are grilling should be of equal thickness. This will allow them to brown evenly and remain succulent and juicy.
- Page 21 Operating Instructions Baking and Grilling Table Foods Accessory Heating Rack place Temperature Heating time function setting（℃） （Mins） Cake Round model layer 140-160 30-45 Bake Pan layer 180-200 10-20 Bread Bake Pan layer 170-190 10-20 Bake Pan layer 160-180 10-20 Thin pizza (cold) Bake Pan layer 190-210...
-
Page 22: Cleaning And Maintenance
Cleaning and Maintenance NOTE: Cleaning and maintenance operations must only be carried out when the oven is cool. The appliance should be disconnected from the power outlet or turned off at your isolation switch before commencing any cleaning process. Cleaning the oven exterior: Before starting to clean your oven, be sure that all control buttons are off and your appliance has cooled off. - Page 23 Cleaning and Maintenance Remove and install door panel Remove Remove oven door, put it on a piece of cloth. Using one hand to push the outside glass, the other hand to pull the inside glass, hold the glass then pull out the glass. Notice! Dangerous! If the glass has some scratches, it may lead to crack.
- Page 24 Cleaning and Maintenance Replacing the Oven Lamp If the oven lamp fails, it must be replaced. Warning: Disconnect the oven from the power source before replacing the lamp. Danger of electric shock. Disconnect the oven from the power source. ...
-
Page 25: Troubleshooting
Troubleshooting When first using your oven, it may emit a particular smell or some smoke. This is normal. Please refer to the ‘Before Using the Oven for the First Time’ section for instructions on how to properly start using your oven for the first time. Use the below table to check for solutions if any faults occur. -
Page 26: Warranty Certificate (New Zealand)
The following conditions apply in respect of the warranty given in this certificate: Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: ... -
Page 27: Warranty Certificate (Australia)
The product was used outdoors. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
