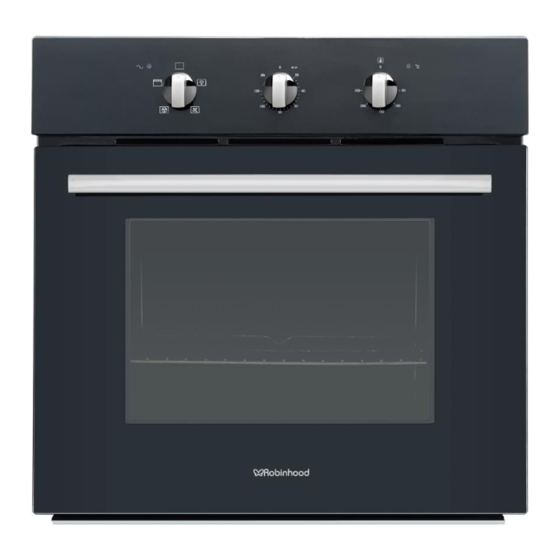

- Page 1 Installation and Operating Instructions Issue: 1 Description: ROBINHOOD 60CM BUILT-IN OVEN 5 FUNCTIONS 70L BLACK Model Numbers: OBD605K70B Model Pictured: OBD605K70B *Actual product may vary from the picture...
-
Page 2: Table Of Contents
Due to continual product development, Robinhood reserves the right to alter specifications or appearances without notice. Important Safety Instructions..........................1 Electrical Connection ............................ -
Page 3: Important Safety Instructions
Important Safety Instructions This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;... -
Page 4: Electrical Connection
Electrical Connection Electrical Safety Danger of electric shock • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • Note: The appliance must be placed in such a way that the power supply is accessible at all times. •... -
Page 5: Appliance Details
Appliance Details Voltage/frequency 220-240V～50Hz Total power consumption 2300W Cable type/section H05VV-F 3*1.5mm Cable length 1.2m External dimensions(height/width/depth) 595/595/575（mm） Installation dimensions(height/width/depth) 600/600/565（mm） Oven lamp 25W/300°C Grill power consumption 2250W 1. Control Panel 6. Fan Motor (behind steel plate) 2. Wire Rack 7. -
Page 6: Installation
Installation The oven should be installed into a purpose built cabinet. Ensure that there is adequate space between the sides of the oven and the walls of the cabinet for ventilation (see the image below for details). • Surfaces, synthetic laminates and adhesives used must be heat resistant (100°C minimum), and neighboring unit fronts up to 70°C. -
Page 7: Accessories
Accessories The accessories supplied with your appliance are suitable for making many different types of meals. Ensure that you always insert the accessories into the cooking compartment in the correct orientation. Inserting accessories You can insert the accessories into the cooking compartment at 5 different levels. Always insert them as far as they will go so that the accessories do not touch the door panel. -
Page 8: Operating Instructions
Operating Instructions Control Panel Function selector Use the function selector to set the type of heating. There are five functions available: OVEN LIGHT Press to turn the interior light on and off. DEFROST The fan runs without heat to reduce the defrosting time of frozen foods. The time required to defrost the food will depend on the room temperature, the quantity and type of food. -
Page 9: Before Using The Oven For The First Time
Operating Instructions Thermostat The oven thermostat control dial sets the required temperature of the oven. It is possible to regulate the temperature within a range of 50 - 250°C. Before Using the Oven for the First Time Heating the Oven To remove the new oven smell, heat up the oven whilst it is empty and closed. -
Page 10: Maintenance And Cleaning
Maintenance and Cleaning • The oven should be cleaned after every use. • The oven chamber should only be washed with warm water and a small amount of washing-up liquid. • After cleaning the oven chamber wipe it dry. • Never clean the oven surfaces by steam cleaning. - Page 11 Maintenance and Cleaning Replacing the Oven Lamp If the oven lamp fails, it must be replaced. Warning: Disconnect the oven from the power source before replacing the lamp. Danger of electric shock. • Disconnect the oven from the power source. •...
-
Page 12: Troubleshooting
Troubleshooting When first using your oven, it may emit a particular smell or some smoke. This is normal. Please refer to the ‘Before Using the Oven for the First Time’ section for instructions on how to properly start using your oven for the first time. Use the below table to check for solutions if any faults occur. -
Page 13: Warranty Certificate (New Zealand)
The following conditions apply in respect of the warranty given in this certificate: Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: •... -
Page 14: Warranty Certificate (Australia)
• The product was used outdoors. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
