ROBINHOOD RHBO64BX Installation And Operating Instruction Manual

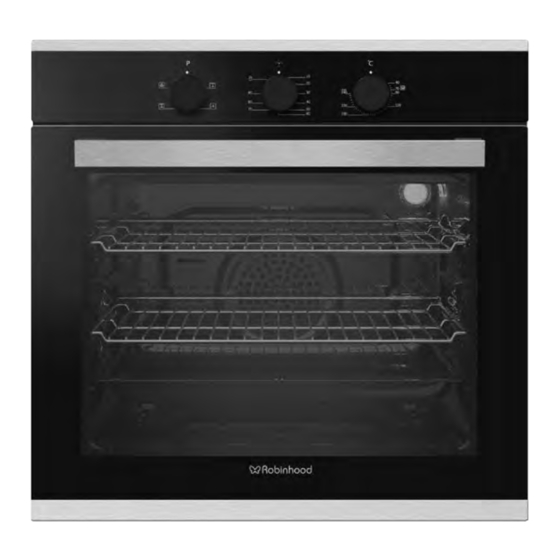

60cm oven
Hide thumbs

Advertisement

Table of Contents

Description:
Model Numbers:
Robinhood 60cm Oven
RHBO64BX, RHBO67BX RHBO69BX
Model may vary slightly from images pictured
Issue 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHBO64BX and is the answer not in the manual?

Questions and answers

Related Manuals for ROBINHOOD RHBO64BX

Summary of Contents for ROBINHOOD RHBO64BX

  • Page 1 Issue 1 Description: Robinhood 60cm Oven RHBO64BX, RHBO67BX RHBO69BX Model Numbers: Model may vary slightly from images pictured...

  • Page 2: Warning And Safety Information

    Warning and safety information This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 3: Installing The Built In Oven

    Installing the built in oven The adjacent furniture must be able to withstand a minimum temperature rise of 100°C above the ambient temperature of the room it is located in during periods of use. The power supply to the appliance must be cut off before any adjustments or maintenance work is done on it.

  • Page 4: Installation Of Built In Oven

    Installation- continued INSTALLATION OF BUILT IN OVEN Insert the oven into cabinet partly by pushing it forward. Open the oven door and insert 2 screws into the holes on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws. If the oven is installed below a built-in hob, the distance between the worktop and the top panel of the oven must be a minimum of 50mm, and the distance between the worktop and the top of the oven control panel must be a minimum of 25mm.

  • Page 5: Local Authority Requirements

    Installation- continued Electric connection LOCAL AUTHORITY REQUIREMENTS Installation is only permitted by a licensed electrician, and carried out according to instructions provided by the manufacturer. Incorrect installation might cause harm and damage which the manufacturer accepts no responsibility. ELECTRICAL INSTALLATION FOR THE LICENSED ELECTRICIAN This oven must be connected to a 220-240V 50Hz power supply.
  • Page 6 Instruction on use Control panel features The oven RHBO64BX CONTROL PANEL RHBO67BX CONTROL PANEL RHBO69BX CONTROL PANEL Please take note of the differences between the 3 models in this manual. When cooking has finished, reset any remaining timer functions to “0’, and rotate the other control knobs up to the off...
  • Page 7 Fan Grill (RHBO67BX): This function turns on the inner grill element (1000W) and the rear fan for a more centralised grill function with heat recirculated through the oven. Grill with fan (RHBO64BX, RHBO69BX): This function turns on the grill element (2000W) and the rear fan for a more powerful grill function with heat recirculated through the oven.
  • Page 8 Timer control features There are three different timer controls used on these ovens. MANUAL TIMER (RHBO64BX): To run the oven without using the timer (manual mode), rotate the control knob anticlockwise from off to the hand symbol. To use the timer, place food into the oven, set the function and thermostat, and rotate clockwise to the desired time (maximum of 90 minutes).
  • Page 9 Instructions on use - continued SETTING A FULLY AUTOMATIC TIMER FUNCTION This timer function differs from the previous one with the cooking start time delayed. Set up the oven as above and set the duration for cooking. While the display is still flashing, press the central timer button one more time. The display will now alternate between “End”...

  • Page 10: Child Lock

    The last tone heard will be the one set 6 seconds after the last button is pressed. Parts & Accessories: Control Panel. 4. Triple Layer Glass Door. Wire Rack. 5. Light (RHBO67BX & RHBO69BX have 2 rectangular Lights). Tray. 6. Internal Wire Rack (not RHBO64BX).

  • Page 11: Energy Saving

    Instructions on use - continued Each appliance comes with a single tray and 2 wire racks. Model RHBO64BX has rack supports moulded into the sides of the oven cavity, whereas RHBO67BX & RHBO69BX have removable wire rack supports. The wire racks have built-in steps, which is a safety feature to warn the user when the rack has been almost fully pulled free of the rack supports.

  • Page 12: Maintenance

    •For models with Internal Wire Rack (not RHBO64BX), remove the wire racks before cleaning the inside of the oven by unclipping the racks from the oven cavity walls and lifting out. After cleaning, replace the wire racks by reversing the...

  • Page 13: Troubleshooting

    Do not leave food in the oven to cool after it has been cooked and the oven has been switched off. • Use a covered container, where practical, when cooking to reduce the amount of condensation that forms. Technical information Model RHBO64BX RHBO67BX RHBO69BX Oven size 72 litres...
  • Page 14 Important information The appliance may be built-in and connected to the power supply only by a qualified technician. Never use the appliance as a room heater. Never use the glass door as a working surface. Sharp objects may damage the glass surface.

  • Page 15: Pre-Installation

    The following conditions apply in respect of the warranty given in this certificate: 1. Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: Rangehood, Ovens, Cooktops, Dishwashers - 24 months from date of original purchase for domestic use.
  • Page 16 The product was used outdoors. 2. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...

This manual is also suitable for:

Rhbo67bxRhbo69bx
