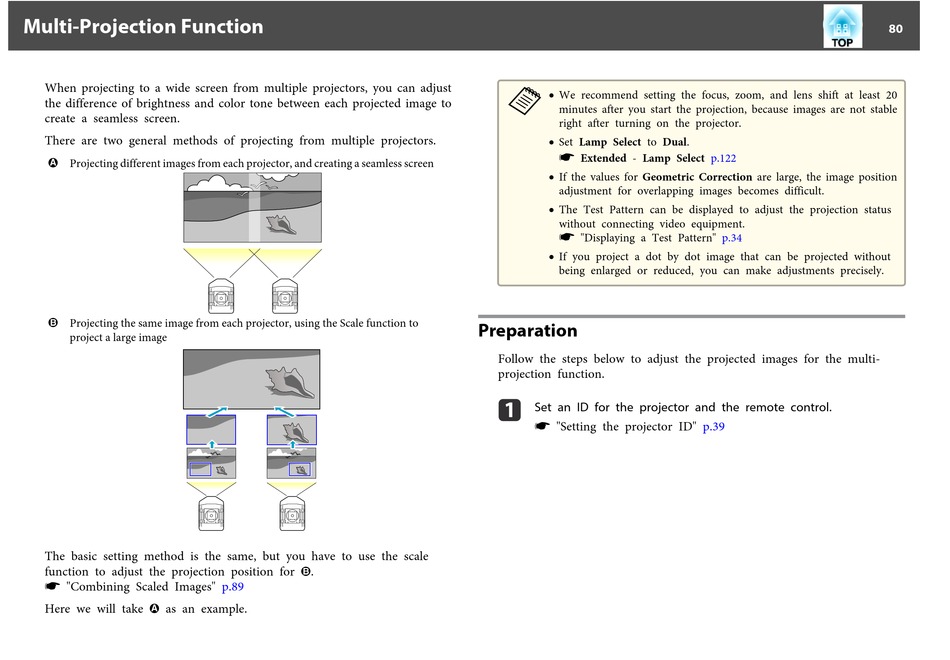

Multi-Projection Function

When projecting to a wide screen from multiple projectors, you can adjust
the difference of brightness and color tone between each projected image to
create a seamless screen.
There are two general methods of projecting from multiple projectors.
U Projecting different images from each projector, and creating a seamless screen
V Projecting the same image from each projector, using the Scale function to
project a large image
The basic setting method is the same, but you have to use the scale
function to adjust the projection position for
"Combining Scaled Images"
s
Here we will take as an example.
U
.
V
p.89
a
• We recommend setting the focus, zoom, and lens shift at least 20
minutes after you start the projection, because images are not stable
right after turning on the projector.
• Set Lamp Select to Dual.
s Extended - Lamp Select
• If the values for Geometric Correction are large, the image position
adjustment for overlapping images becomes difficult.
• The Test Pattern can be displayed to adjust the projection status
without connecting video equipment.
s "Displaying a Test Pattern"
• If you project a dot by dot image that can be projected without
being enlarged or reduced, you can make adjustments precisely.

Preparation

Follow the steps below to adjust the projected images for the multi-
projection function.
a
Set an ID for the projector and the remote control.
"Setting the projector ID"
s
p.122
p.34
p.39
